Fiamma 2.6m F45S Awning (Royal Grey)

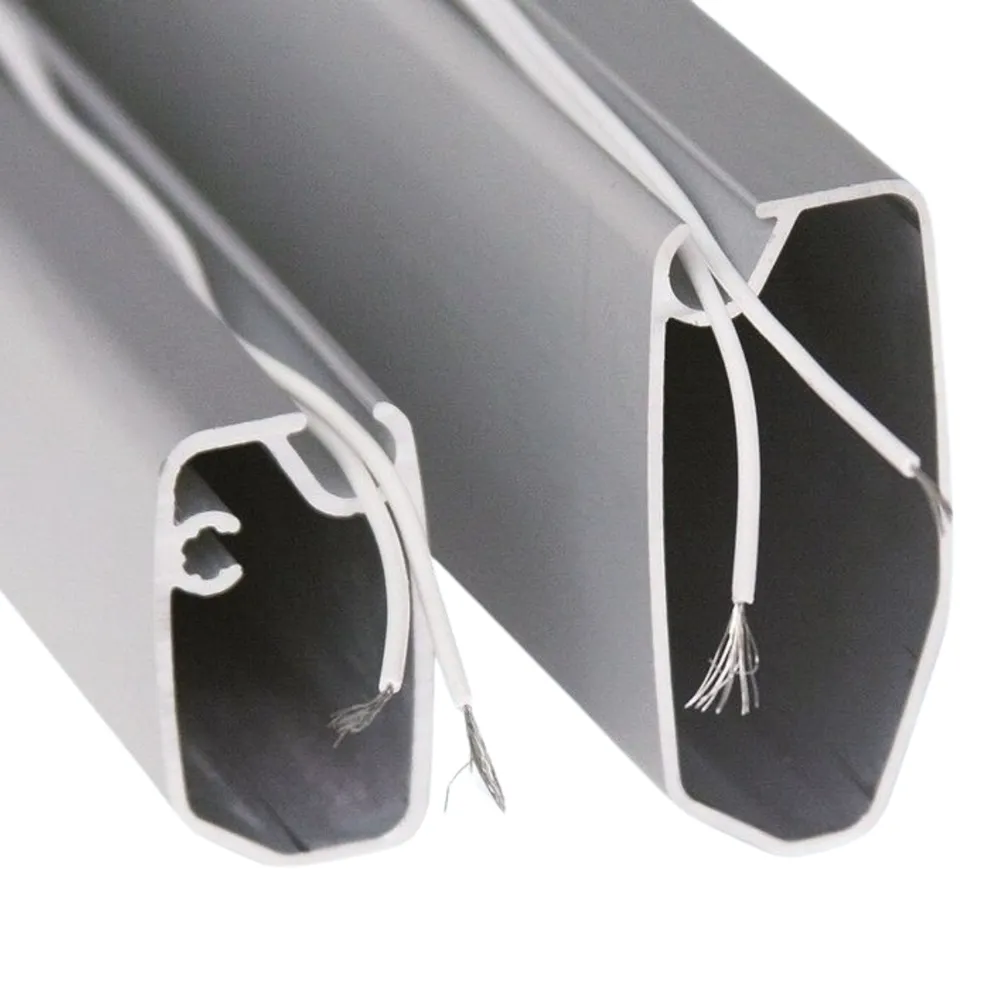

The world's most popular box awning is now even better with the recent release of the F45S Royal Grey. The new updated version of the F45 has a more compact design with low profile metal end caps (previously plastic) that house a redesigned crank system which is both more durable and smoother to operate. The lead bar now includes 2 tracks which allows for mutliple uses such as installing and privacy screen, LED lights or awning hangers. The new design also incorporates guides built into the arms to allow the hiding of LED lighting cabling

The F45 S Awning is easy to use and simple to install on the wall of a Camper Trailer, Motorhome, Caravan, Pop Top or Horse Float. When not in use, the F45 S takes up little space while snuggly enclosed in its extra strong extruded aluminium polar white case. The fabric is UV resistant, waterproof and washable with a modern pattern design which will match nicely with any caravan.

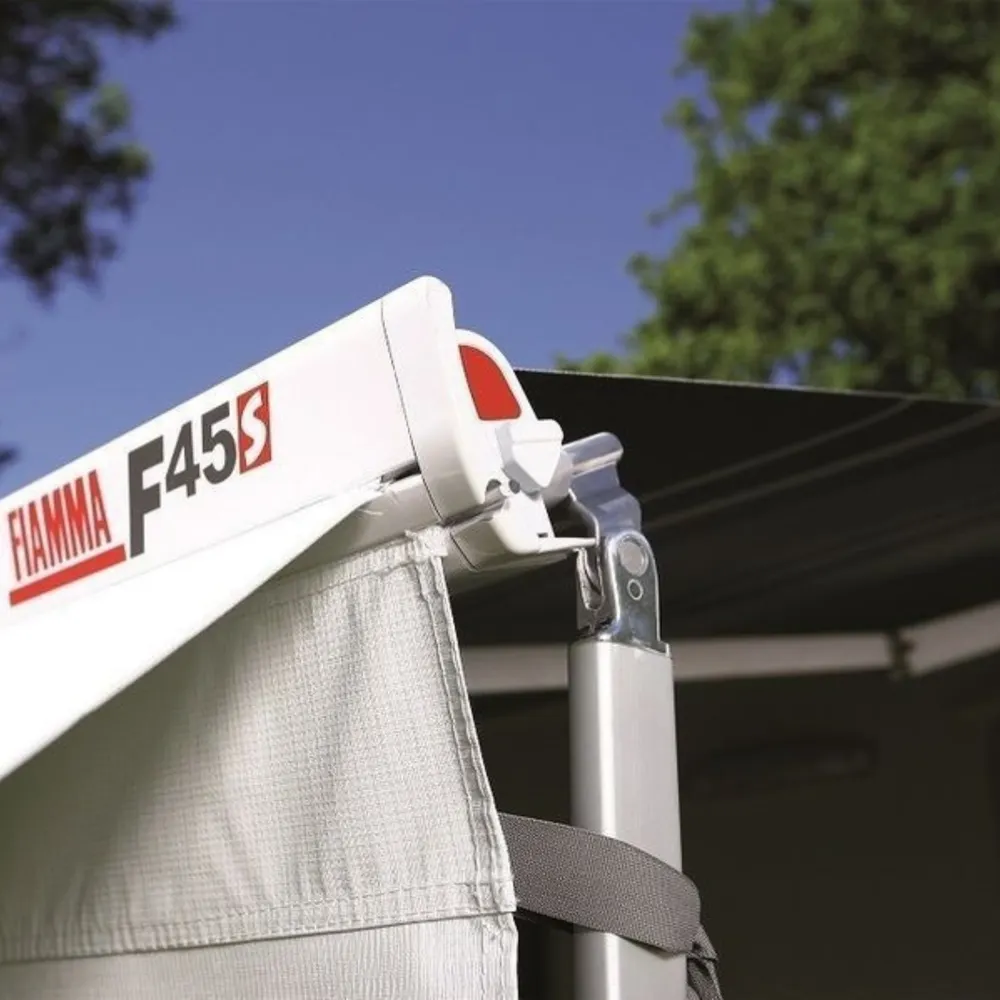

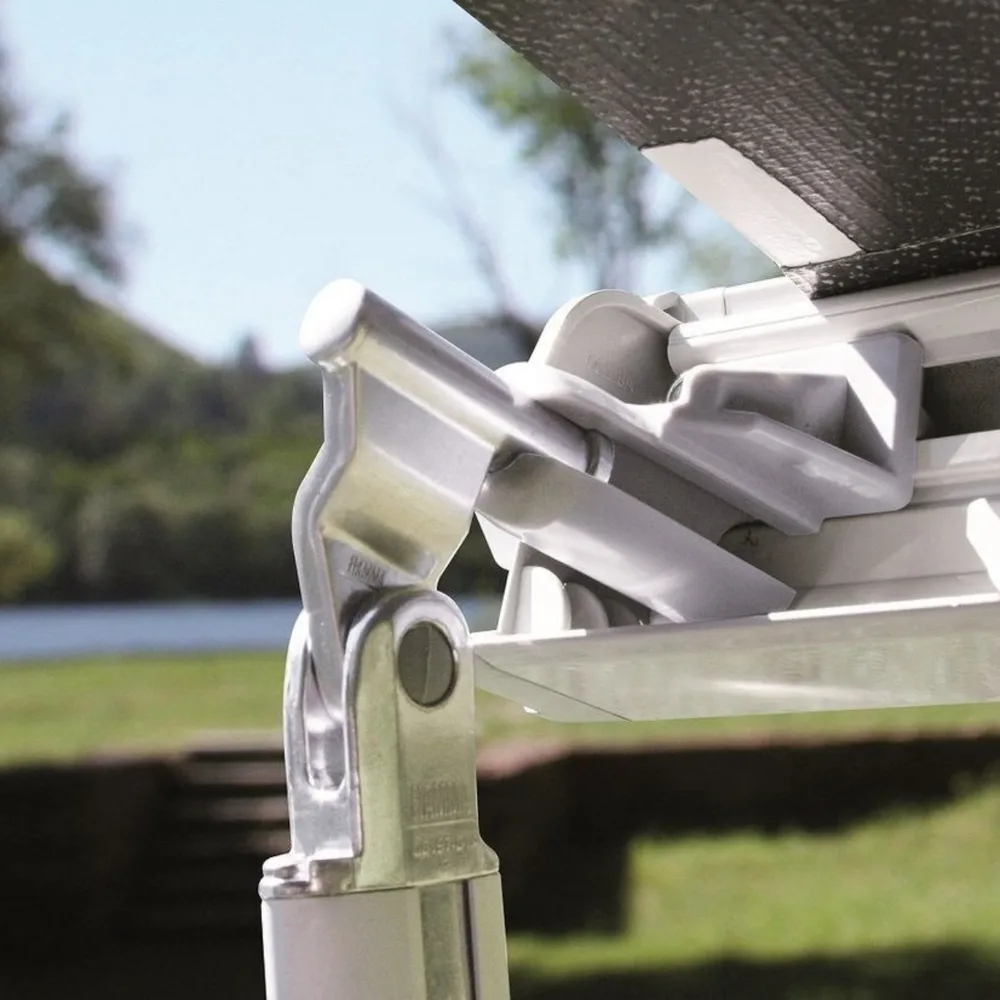

The awning includes re-inforced arms with twin cable, duel shock absorbers and a folding crank handle. Also supplied are wall brackets for legs and hooks to secure legs to the ground with fitting brackets to suit a flat surface and full fitting instructions.

Features:
  • Easy and safe to operate
  • Silent when opening/closing and while travelling
  • Easy to hook winch loop
  • Maximum shadow surface
  • Auto lock feature
Specifications:
  • Case Colour: Polar White
  • Fabric Colour: Royal Grey
  • Case length: 2630mm
  • Case Height: 136mm
  • Case Thickness: 85mm
  • Fabric Length: 2470mm
  • Awning Extension: 2000mm
  • Weight: 19.5kg

Installation Notes:

Please note this kit comes with the Standard Bracket Kit which allows the awning to be attached to a flat vertical face on a Caravan / Pop Top / Motorhome / Camper Trailer. Where the awning is attached to a curved surface or roof rack a separate bracket kit needs to be purchased.

Our Comments:

  • We would recommend adding the optional Fiamma curved rafter and Tie Down Kit (both linked on the page) which increase tension on the fabric and make the awning more sturdy (to better cope with Aussie weather!).
  • Note the Fiamma Awnings include a smaller sail track than what is used in most other awnings. If adding a Privacy screen please note you need one with a smaller (4mm or 5mm) spline / kedder thread. The Camp Smart XD Privacy Screens for Fiamma/Box Awnings are suitable as they have a 4mm spline. We also stock the Coast to Coast sun screens which suit the Fiamma Awnings.
  • Please note the Fiamma Fast Clip System is incompatible with the 2.6m F45s version.

More Information:

Please contact us on 1300 553 189 if you would like any further information about the product or if you would like to pick up the item from our Gladesville (Sydney) location.

See our full range of Fiamma products.

SKU 200-20240
Model # 200-20240
Barcode # 8004815352073
Brand Fiamma
Colour Grey
Shipping Weight 33.5000kg
Shipping Width 0.160m
Shipping Height 0.180m
Shipping Length 2.800m
Shipping Cubic 0.080640000m3
Assembled Length 2.630m
Assembled Height 2.500m
Assembled Width 0.085m
Type New
Location Code Near K1

Write a review


I am very happy with my Fiamma Awing who is mounted on my Jayco Swift no problem. I am very impressed with the speedy delivery and the friendly follow up of the staff of Campsmart. Another happy customer. Thanks again Jack

All items in our store are from reputable Australian suppliers and are covered by a 12-month  warranty for faults and defects.

Products must be used correctly and for the function they were designed for. Damage by customer misuse is not warrantable.

For full warranty information, visit our warranty page - Click here.

If you would like to submit a warranty claim, please submit a support ticket on our Customer Support Portal.

Click here to visit the portal

Due to the high incidence of online fraud, you will be required to provide proof of any warranty claims and may be required to return the item for assessment.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
