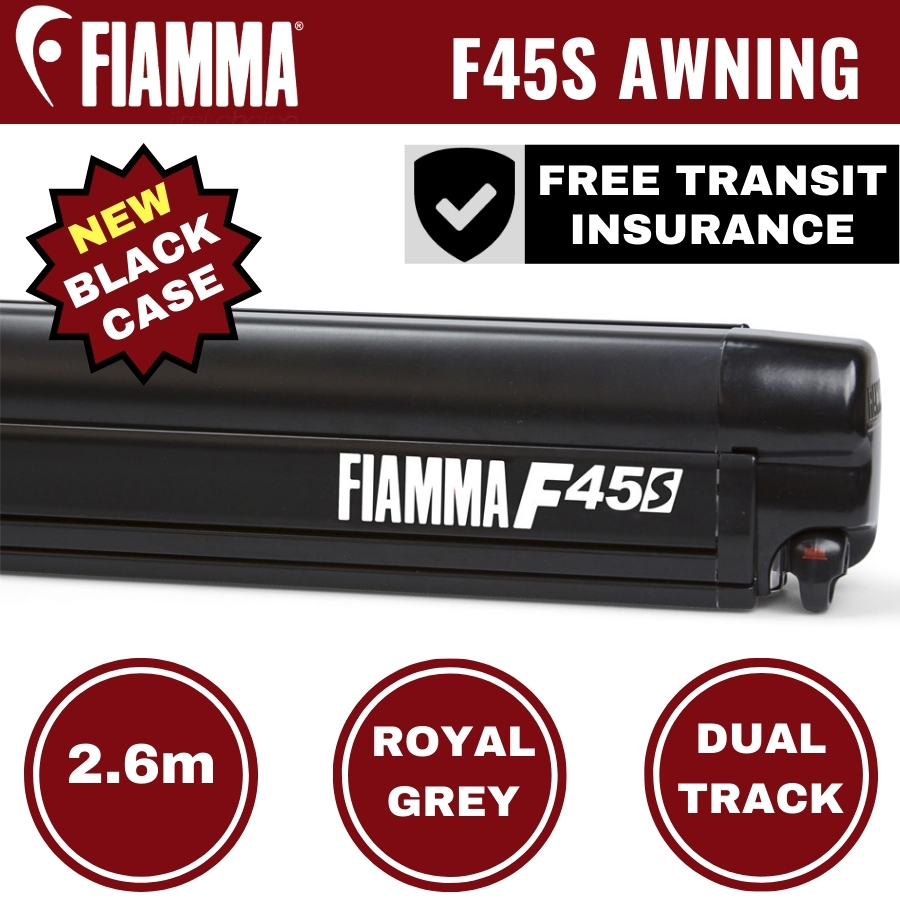

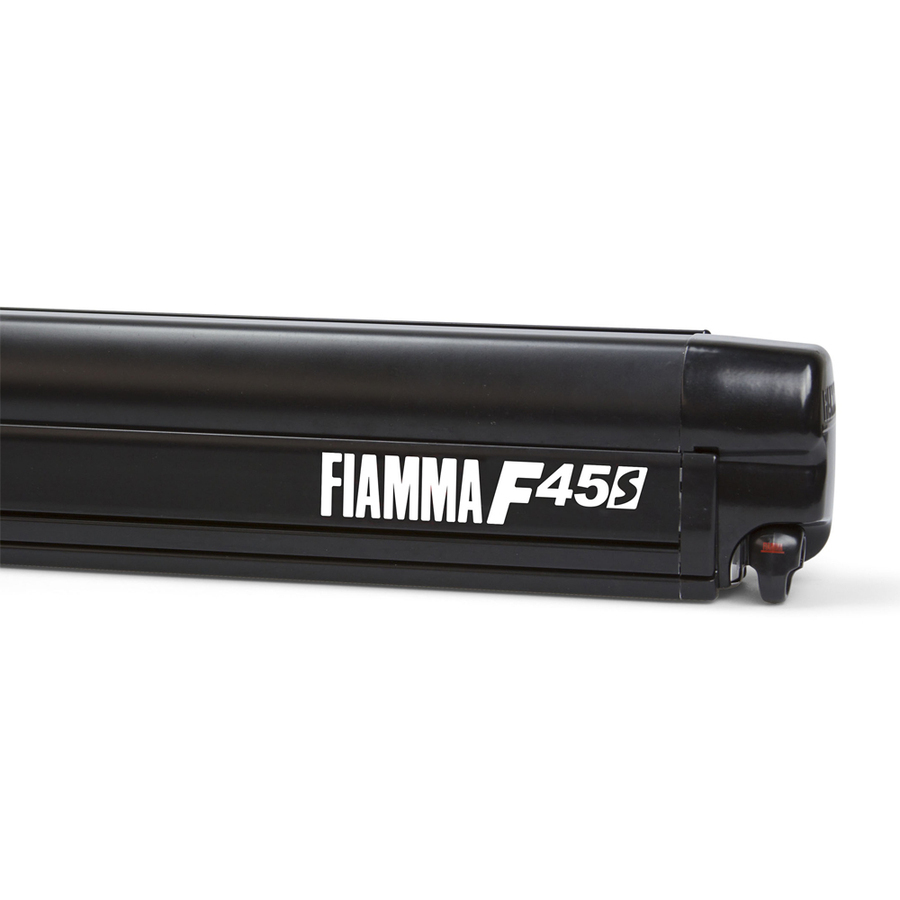

Fiamma 2.6m F45S Awning (Royal Grey Fabric & Black Casing)

The world's most popular box awning is now even better with the recent release of the F45S Royal Grey. The new updated version of the F45 has a more compact design with low profile metal end caps (previously plastic) that house a redesigned crank system which is both more durable and smoother to operate. The lead bar now includes 2 tracks which allow for multiple uses such as installing and privacy screen, LED lights or awning hangers. The new design also incorporates guides built into the arms to allow the hiding of LED lighting cabling

The F45 S Awning is easy to use and simple to install on the wall of a Camper Trailer, Motorhhome, Caravan, Pop Top of Horse Float. When not in use, the F45S takes up little space while snuggly enclosed in its extra strong extruded aluminum polar white case. The fabric is UV resistant, waterproof and washable with a modern pattern design which will match nicely with any caravan.

The awning includes re-inforced arms with twin cable, duel shock absorbers and a folding crank handle. Also supplied are wall brackets for legs and hooks to secure legs to the ground with fitting brackets to suit a flat surface and full fitting instructions.

Features:
  • Easy and safe to operate
  • Silent when opening/closing and while traveling
  • Easy to hook winch loop
  • Maximum shadow surface
  • Auto lock feature
Specifications:
  • Case Colour: Deep Black
  • Fabric Colour: Royal Grey
  • Case length: 2630mm
  • Case Height: 136mm
  • Case Thickness: 85mm
  • Fabric Length: 2470mm
  • Awning Extension: 2000mm
  • Weight: 19.5kg
  • Shipping Weight: 30.00 Kgs

Installation Notes:

Please note this kit come with the Standard Bracket Kit which allows the awning to be attached to a flat vertical face on a Caravan / Pop Top / Motorhome / Camper Trailer. Where the awning is attached to a curved surface or roof rack a separate bracket kit needs to be purchased.

Our Comments:

  • The new Deep Black Casing looks great on Black Vans & Off-Road RVs.
  • We would recommend adding the optional Fiamma Curved Rafter & Tie Down Kit (linked on the page) which will increase tension on the fabric and make the awning more sturdy (to better cope with Aussie weather!). Note that the fast clip system and anti flap kits are incompatible due to the shorter extension on this awning.
  • Note the Fiamma Awnings include a smaller sail track than what is used in most other awnings. If adding a Privacy screen please note you need one with a smaller (4mm or 5mm) spline / kedder thread. The Camp Smart XD Privacy Screens for Fiamma/Box Awnings are suitable as they have a 4mm spline. We also stock the Coast to Coast sun screens which suit the Fiamma Awnings.
  • Important: We include transit insurance with this item. Please note any damage identified must be reported when received to be covered by the insurance. Do not sign for the delivery if any damage is identified & contact Campsmart within 24hrs.

More Information:

Please contact us on 1300 553 189 if you would like any further information about the product or if you would like to pick up the item from our Gladesville (Sydney) location.

See our full range of Fiamma products.

SKU 6759H01R
Model # 6759H01R
Barcode # 8004815354701
Brand Fiamma
Colour Black
Colour Grey
Shipping Weight 35.0000kg
Shipping Width 0.160m
Shipping Height 0.160m
Shipping Length 3.250m
Shipping Cubic 0.083200000m3
Assembled Length 2.630m
Assembled Height 0.136m
Assembled Width 0.085m
Type New
Location Code Near K1
