2x 43L Modular Water Tanks (86L) with Mounting Brackets

This kit includes both the 2x 43L modular tanks and mounting brackets.

These innovative newly designed blow moulded modular Caravan & RV water tanks will change the way you use water tanks. The tanks can be configured in many ways to provide a single low cost solution.

The tanks are made from food contact approved High Molecular Weight High Density Polyethylene. This makes them extremely strong. Each tank is moulded with two integral 20mm (3/4 BSP) threaded closures that can accept a wide variety of standard fixtures and fittings. Using these standard fitting the tanks can be networked together to provide almost limitless water storage options for your Caravan, Pop Top, Motorhome or Camper Trailer.

Fitting Guide:

All the fittings are standard 20mm (3/4 BSP) so use your own or purchase fittings from your local plumbing / hardware store to suit your preferred installation. Use Teflon tape or sealant to ensure all fittings are water tight. Do not cross thread fitting on tank.

Please note the fittings shown in the photo's are NOT included with the tank.

Tank Specifications:

  • 2 x Modular Water Tanks 86 Litre (43L per tank)
  • Made from food contact approved, high density polyethylene.
  • Weight (per tank): 2.0 Kgs.

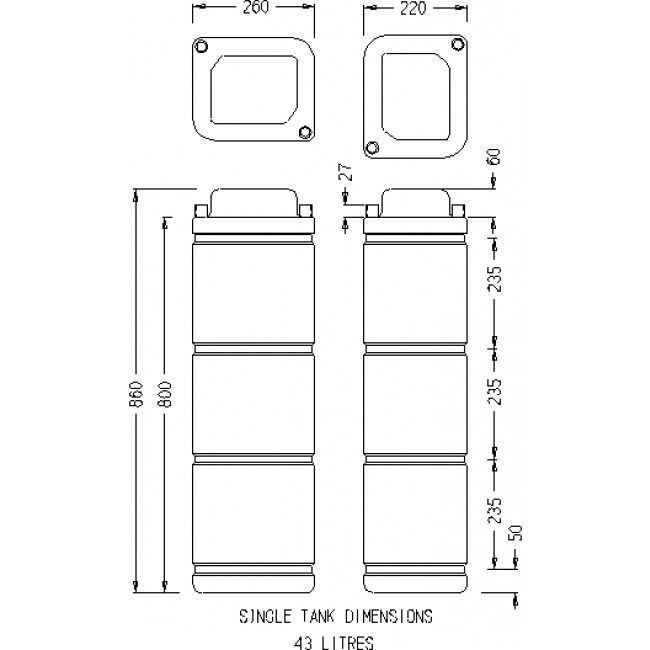

  • Dimensions (per tank): 86 cm x 26 cm x 22 cm.

Tank Features:

  • Two integrated 20mm (3/4 Male BSP) threaded connections per tank can accept a wide variety of standard threaded pipe fittings.
  • 3mm Breather holes should be drilled in the top, when the layout is complete.

Brackets Included in Kit:

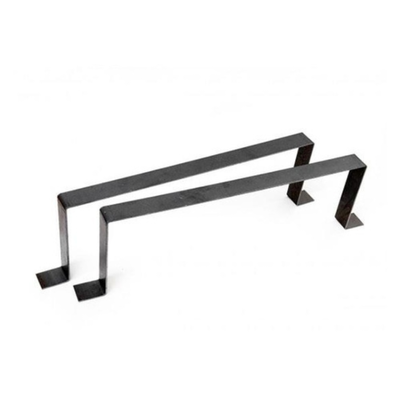

50mm x 3mm metal strip brackets to secure the 2x 43L Modular water tanks to the bottom of your RV. Note some minor surface rust can sometimes be found on the brackets as they are untreated steel. This is considered normal.

Features & Specifications:

  • Includes two metal bracket straps
  • Brackets suit 2x 43L BR Plastics Modular Water Tanks (aligned with the long side horizontal)
  • 50mm x 3mm metal strip

Important:

Filling a tank under pressure can burst the tank, such damage is misuse and is not warrantable. Please seek expert advice or support if unfamiliar with fitting and filing of water tanks. It is the customers' responsibility to fit and fill the item correctly.



SKU 43394x2B
Model # 43394x2B
Barcode # Does not apply
Brand BR Plastics
Colour Black
Shipping Weight 7.5000kg
Shipping Width 0.400m
Shipping Height 0.300m
Shipping Length 0.870m
Assembled Length 0.860m
Assembled Height 0.220m
Assembled Width 0.260m
Type New
Location Code 18D1/D2
