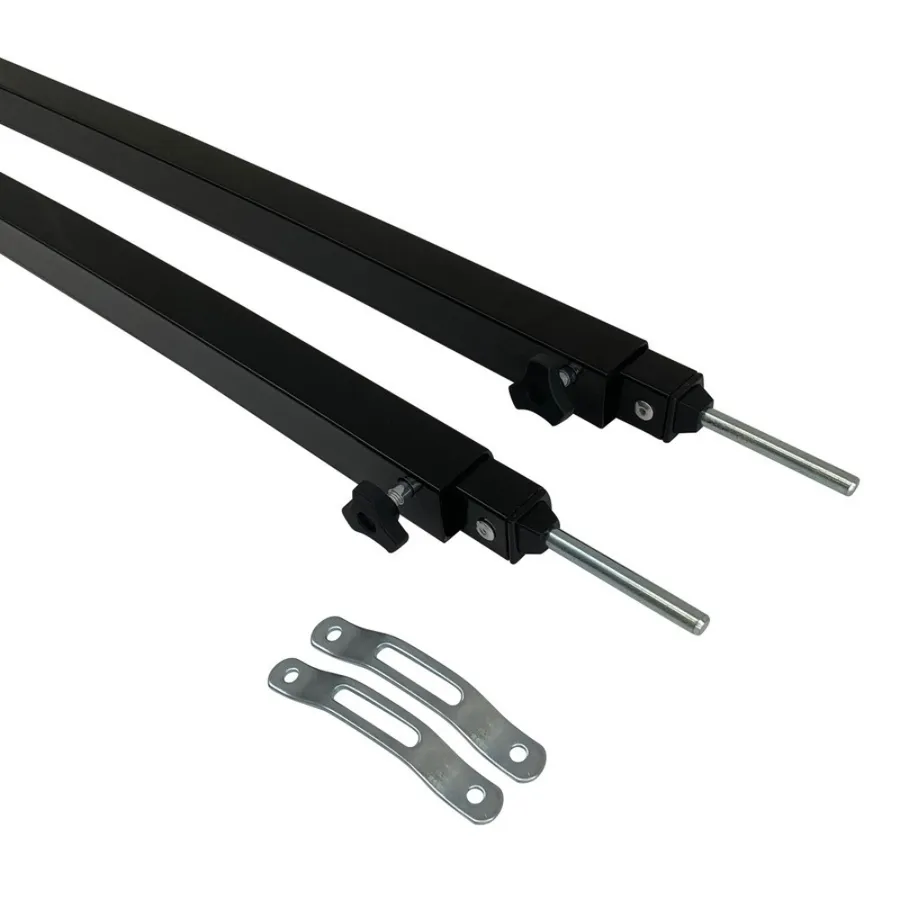

2x Curved Caravan Awning Rafters (Slight Curve) - Premium Black

New from Campsmart are the Premium Black Slight Curved Caravan Awning Rafters. These feature a number of design improvements over the previous square profile rafters including:

  • A rounded radius top has been added to protect the fabric on the awning;
  • The rafter has been thickened, adding strength; and
  • A new "anti-rattle" glass nylon molded rail end has been included;

Curved awning rafters help you overcome the two common caravanning problems - wind flap and water pooling. Taking only moments to fit in place, this curved roof rafter is designed to give your awning canopy a gentle curve enabling rain to run off easier, as well as keeping the fabric tight and reducing wind flap. No more restless sleep due to wind flaps! For best results, we recommend using them with our anti-flap kit or de flappers.

The telescopic style rafter extends up to 250cm and is suitable for Roll Out Awnings including Sunburst, Carefree, Dometic & A&E.

Features & Specifications:

  • Pack of 2 awning rafters included
  • Includes tightening knobs & mounting brackets (screws not included);
  • Extends from 1.5m to 2.5m;
  • Curve is approx. 50-60mm when fully extended (See notes on curvature below);
  • Powdercoated Black aluminium with a rounded top profile;
  • Anti-Rattle Glass Nylon Moulded Bracket Insert;

Installation Details:

  1. Attach the bracket to the RV with 2 screws into the desired position. This should be approx. 20mm below the awning fabric;
  2. Extend the awning out;
  3. Drill a 3/8" hole in the awning tube at an appropriate height;
  4. File / de-burr the hole in the barrel to ensure no damage to the fabric occurs when closing.

Our Notes:

  • Curvature is measured when extended and includes the distance from a flat surface to the top of the rafter (note the rafter is approx. 35mm tall). Variation will occur depending on the amount of extension. A small amount of variation can also occur in production.
  • Larger awnings would benefit from 2 or more rafters (We'd suggest 2 for awnings over 12' & 3 for awnings larger than 17').
  • This rafter is not suitable for Box Awnings such as Fiamma. Please see our separately listed Curved Rafters for Fiamma Awnings



SKU CSAE060BX2
Model # CSAE060BX2
Barcode # Does not apply
Brand Campsmart
Colour Black
Size Slight Curve
Style Roll Out Awning
Shipping Weight 2.6000kg
Shipping Width 0.100m
Shipping Height 0.060m
Shipping Length 1.600m
Shipping Cubic 0.009600000m3
Assembled Length 1.500m
Assembled Height 0.035m
Assembled Width 0.060m
Type New
Location Code 38 C1/C2

Help other users shop smarter by writing reviews for products you have purchased.

Write a review

All items in our store are from reputable Australian suppliers and are covered by a 12-month  warranty for faults and defects.

Products must be used correctly and for the function they were designed for. Damage by customer misuse is not warrantable.

For full warranty information, visit our warranty page - Click here.

If you would like to submit a warranty claim, please submit a support ticket on our Customer Support Portal.

Click here to visit the portal

Due to the high incidence of online fraud, you will be required to provide proof of any warranty claims and may be required to return the item for assessment.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.



Features & Specifications:

  • Pack of 2 awning rafters included
  • Includes tightening knobs & mounting brackets (screws not included);
  • Extends from 1.5m to 2.5m;
  • Curve is approx. 50-60mm when fully extended (See notes on curvature below);
  • Powdercoated Black aluminium with a rounded top profile;
  • Anti-Rattle Glass Nylon Moulded Bracket Insert;

Features & Specifications:

  • Pack of 2 awning rafters included
  • Includes tightening knobs & mounting brackets (screws not included);
  • Extends from 1.5m to 2.5m;
  • Curve is approx. 50-60mm when fully extended (See notes on curvature below);
  • Powdercoated Black aluminium with a rounded top profile;
  • Anti-Rattle Glass Nylon Moulded Bracket Insert;

We Also Recommend

Caravan Awning Rope Clips
(33)
Campsmart XL Caravan De-Flapper Kit (2 Pack)
(11)
Caravan Anti Flap Kit & 2 Curved Rafters Pack (Black)
(1)
Sold Out

You May Also Like

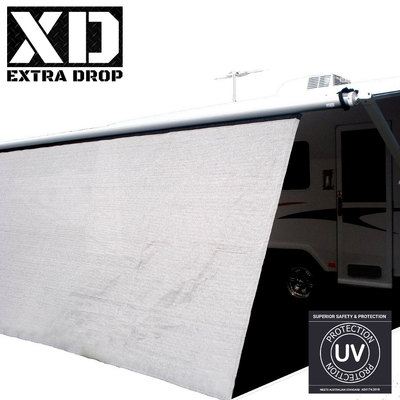

Campsmart Black XD Caravan End Wall Privacy Screen
