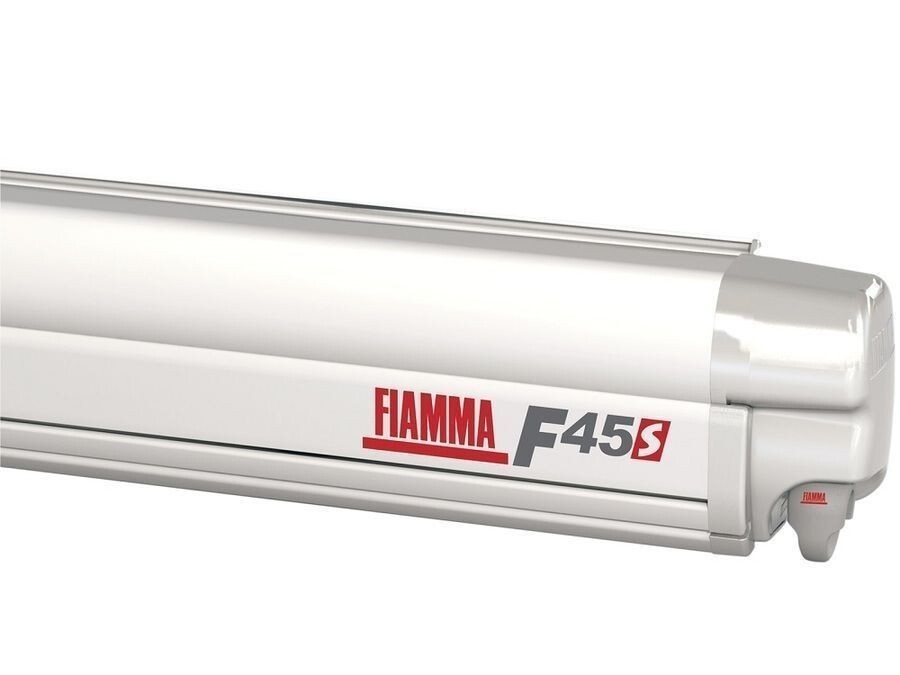

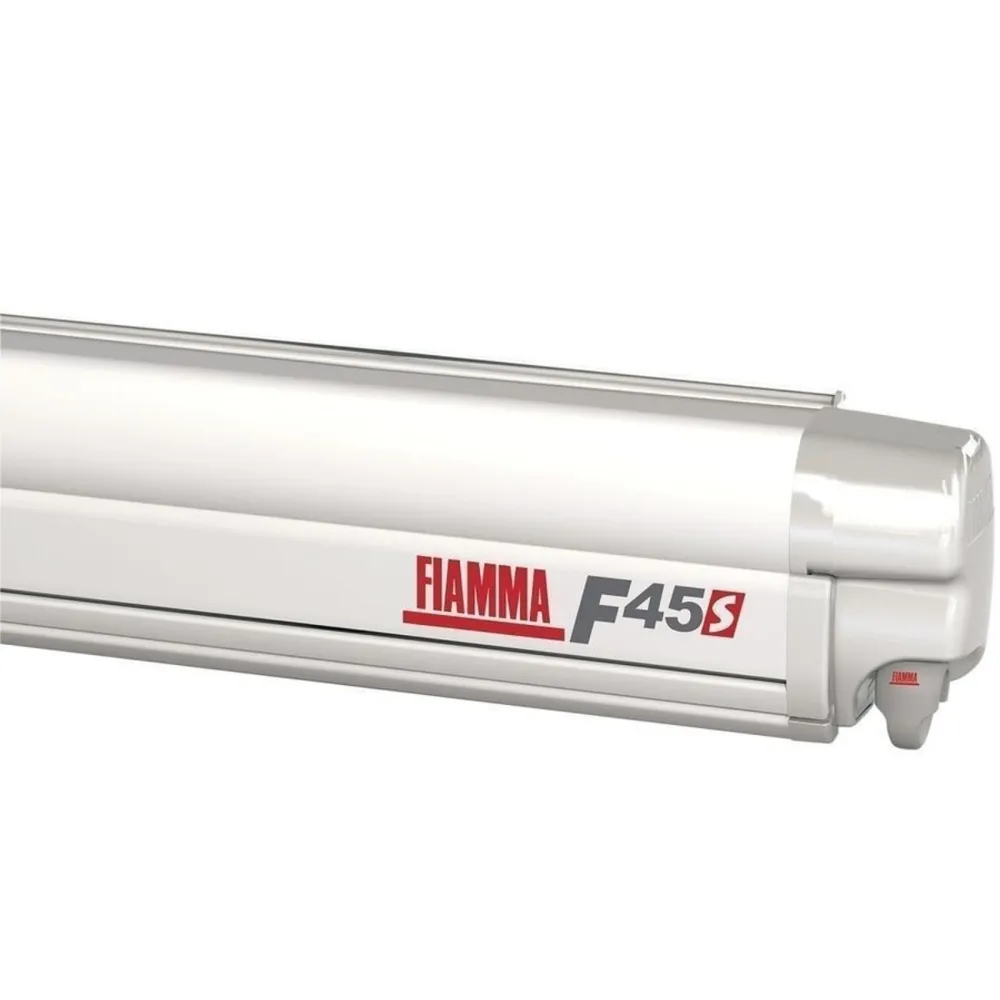

Fiamma 3.0m F45S Awning (Royal Grey - White Casing)

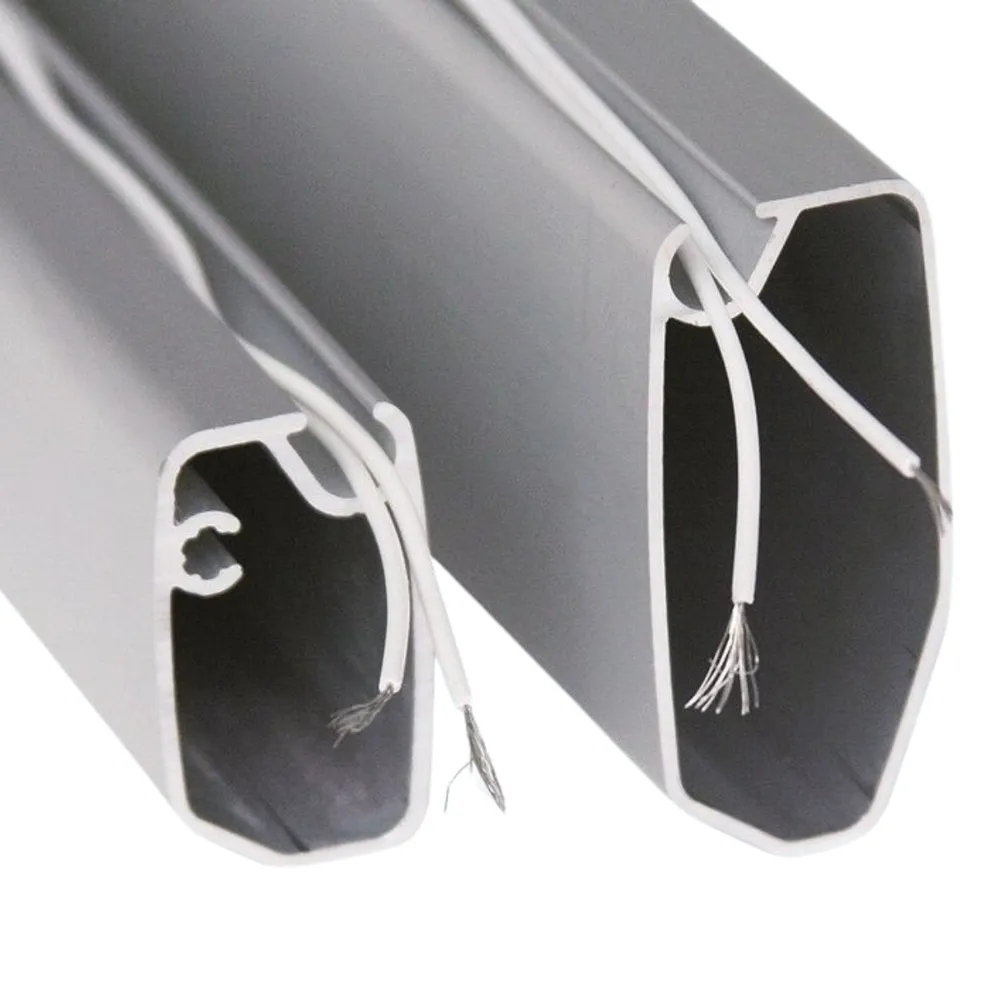

The world's most popular box awning is now even better with the recent release of the F45S Royal Grey. The new updated version of the F45 has a more compact design with low profile metal end caps (previously plastic) that house a redesigned crank system which is both more durable and smoother to operate. The lead bar now includes 2 tracks which allows for multiple uses such as installing and privacy screen, LED lights or awning hangers. The new design also incorporates guides built into the arms to allow the hiding of LED lighting cabling

The F45 S Awning is easy to use and simple to install on the wall of a Camper Trailer, Motorhome, Caravan, Pop Top or Horse Float. When not in use, the F45 S takes up little space while snuggly enclosed in its extra strong extruded aluminium polar white case. The fabric is UV resistant, waterproof and washable with a modern pattern design which will match nicely with any caravan.

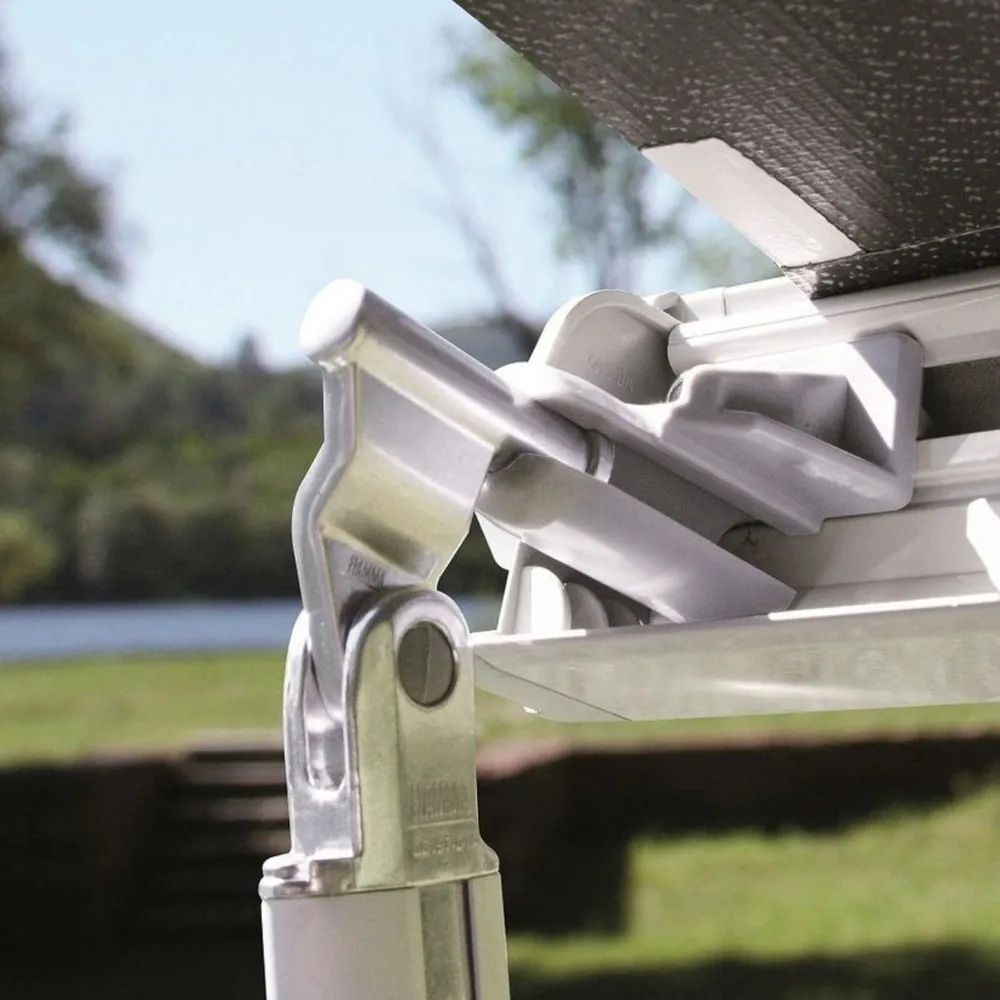

The awning includes re-inforced arms with twin cable, duel shock absorbers and a folding crank handle. Also supplied are wall brackets for legs and hooks to secure legs to the ground with fitting brackets to suit a flat surface and full fitting instructions.

Features:
  • Easy and safe to operate
  • Silent when opening/closing and while travelling
  • Easy to hook winch loop
  • Maximum shadow surface
  • Auto lock feature
Specifications:
  • Case Colour: Polar White
  • Fabric Colour: Royal Grey (grey/charcoal/white with wave pattern)
  • Case length: 3080mm
  • Case Height: 136mm
  • Case Thickness: 85mm
  • Fabric Length: 2920mm
  • Awning Extension: 2500mm
  • Weight: 23kg

Installation Notes:

Please note this kit comes with the Standard Bracket Kit which allows the awning to be attached to a flat vertical face on a Caravan / Pop Top / Motorhome / Camper Trailer. Where the awning is attached to a curved surface or roof rack a separate bracket kit needs to be purchased.

Our Comments:

  • We would recommend adding the optional Fiamma Curved Rafter & Tie Down Kit (linked on the page) which increases tension on the fabric and makes the awning more sturdy (to better cope with Aussie weather!). If you want to beef it up even further then consider the Fiamma Fast Clip System (Anti-Flap Kit System).
  • Note the Fiamma Awnings include a smaller sail track than what is used in most other awnings. If adding a Privacy screen please note you need one with a smaller (4mm or 5mm) spline / kedder thread. We stock the Coast to Coast sun screens which suit the Fiamma Awnings. The Camec range will also suit with a 5mm spline.
  • Important: We include transit insurance with this item. Please note any damage identified must be reported when received to be covered by the insurance. Do not sign for the delivery if any damage is identified & let us know within 24hrs.


SKU 200-20260
Model # 06280A01R
Barcode # 8004815351717
Brand Fiamma
Colour White
Colour Grey
Type Awnings
Item Width 160mm
Item Height 180mm
Item Length 3250mm
Material Various
Material Aluminium, Metal, Vinyl
Country/Region of Manufacture Italy
Item Weight 35kg
Manufacturer Warranty 1-year warranty
Brand Fiamma
Manufacturer Part Number 06280A01R
Shipping Weight 35.0000kg
Shipping Width 0.160m
Shipping Height 0.180m
Shipping Length 3.250m
Shipping Cubic 0.093600000m3
Assembled Length 3.080m
Assembled Height 2.500m
Assembled Width 0.085m
Type New
Location Code Near K1

Write a review


Excellent service and product


very prompt delivery


Really easy to put on, works really well - just a winner all around.


great product with great service

1-year warranty

Features:
  • Easy and safe to operate
  • Silent when opening/closing and while travelling
  • Easy to hook winch loop
  • Maximum shadow surface
  • Auto lock feature
Specifications:
  • Case Colour: Polar White
  • Fabric Colour: Royal Grey (grey/charcoal/white with wave pattern)
  • Case length: 3080mm
  • Case Height: 136mm
  • Case Thickness: 85mm
  • Fabric Length: 2920mm
  • Awning Extension: 2500mm
  • Weight: 23kg

We Also Recommend

Curved Center Rafter for Fiamma F45 Awning
(10)

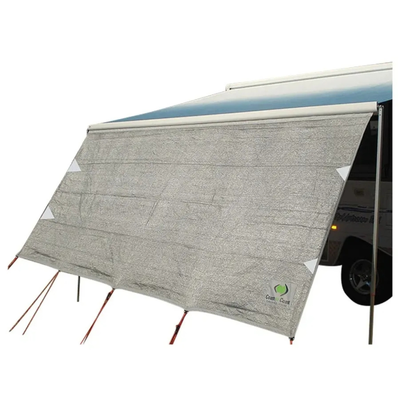

2.85m XD Privacy Screen for 3.0m Fiamma Awning
