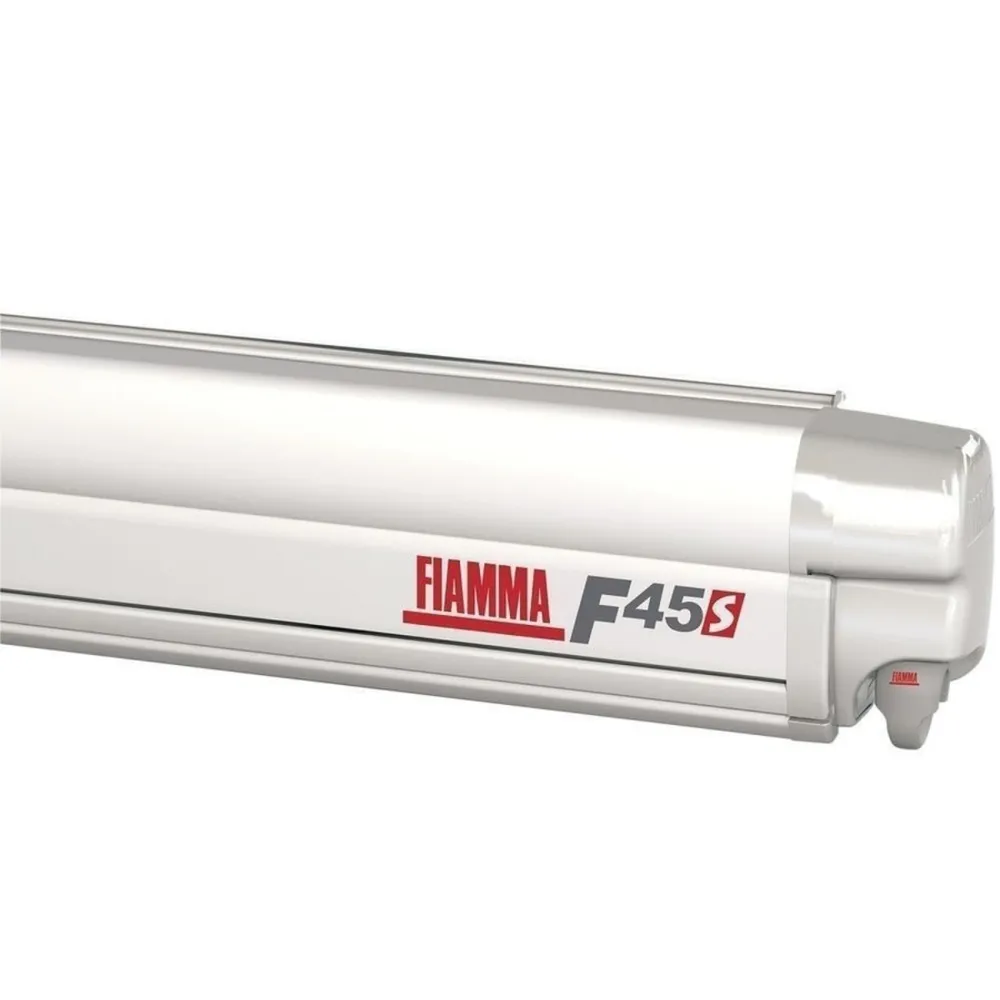

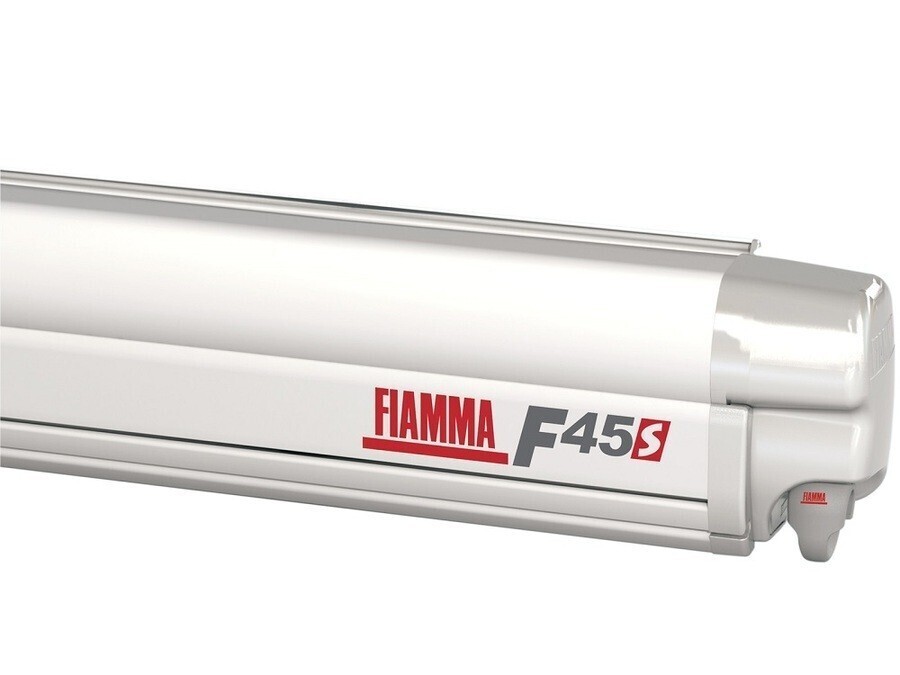

Fiamma 3.5m F45S Awning (Royal Grey)

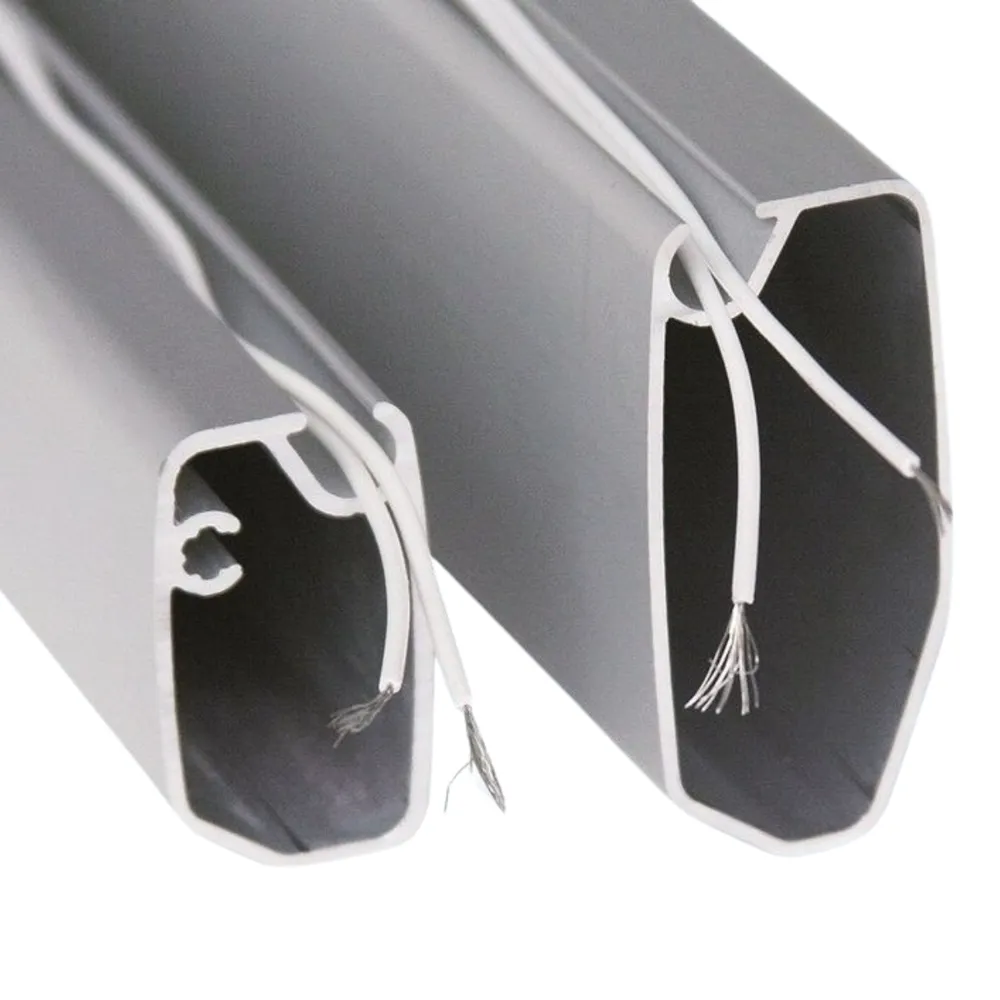

The world's most popular box awning is now even better with the recent release of the F45S Royal Grey. The new updated version of the F45 has a more compact design with low profile metal end caps (previously plastic) that house a redesigned crank system which is both more durable and smoother to operate. The lead bar now includes 2 tracks which allows for multiple uses such as installing and privacy screen, LED lights or awning hangers. The new design also incorporates guides built into the arms to allow the hiding of LED lighting cabling

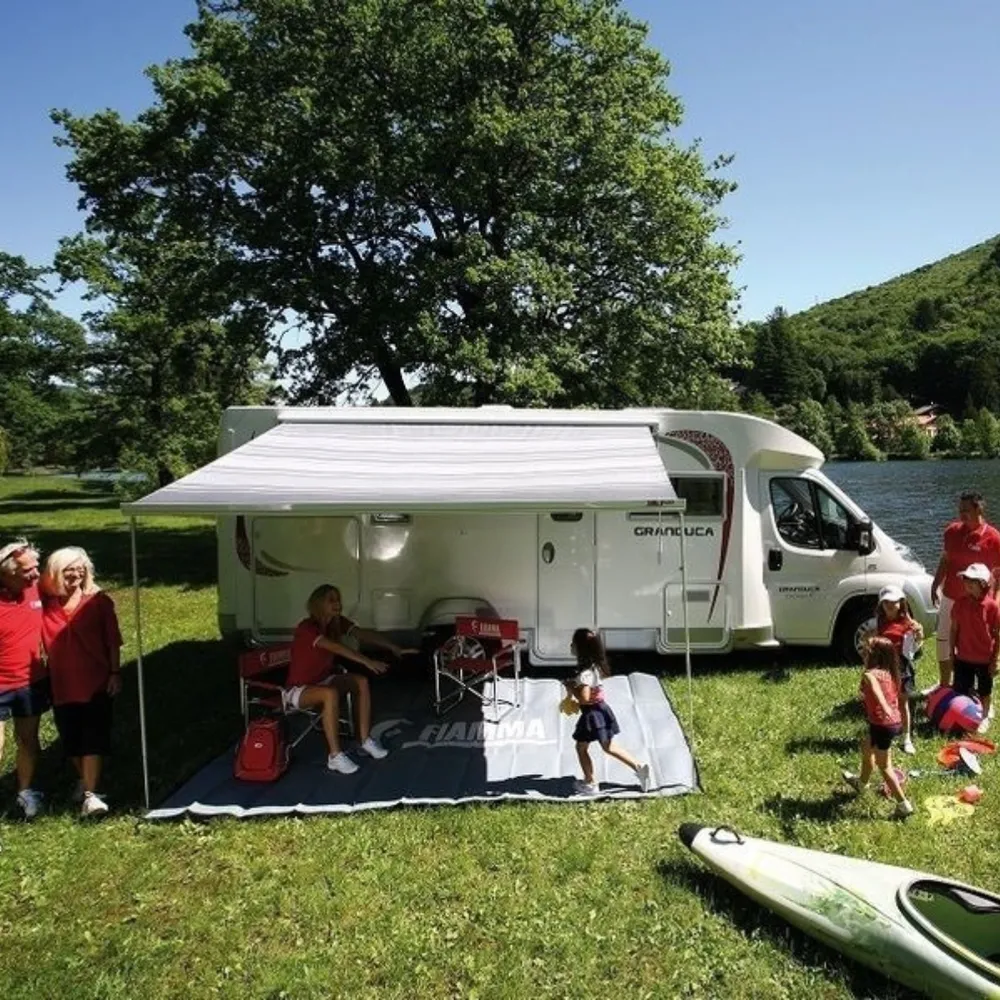

The F45 S Awning is easy to use and simple to install on the wall of a Camper Trailer, Motorhome, Caravan, Pop Top of Horse Float. When not in use, the F45S takes up little space while snuggly enclosed in its extra strong extruded aluminium polar white case. The fabric is UV resistant, waterproof and washable with a modern pattern design which will match nicely with any caravan.

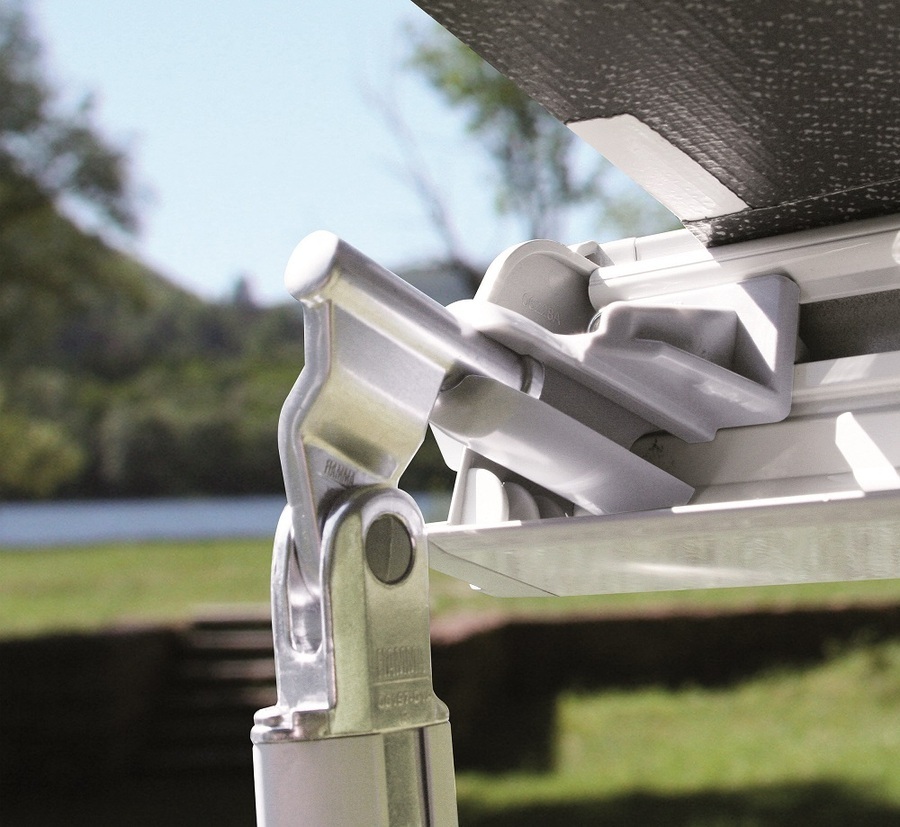

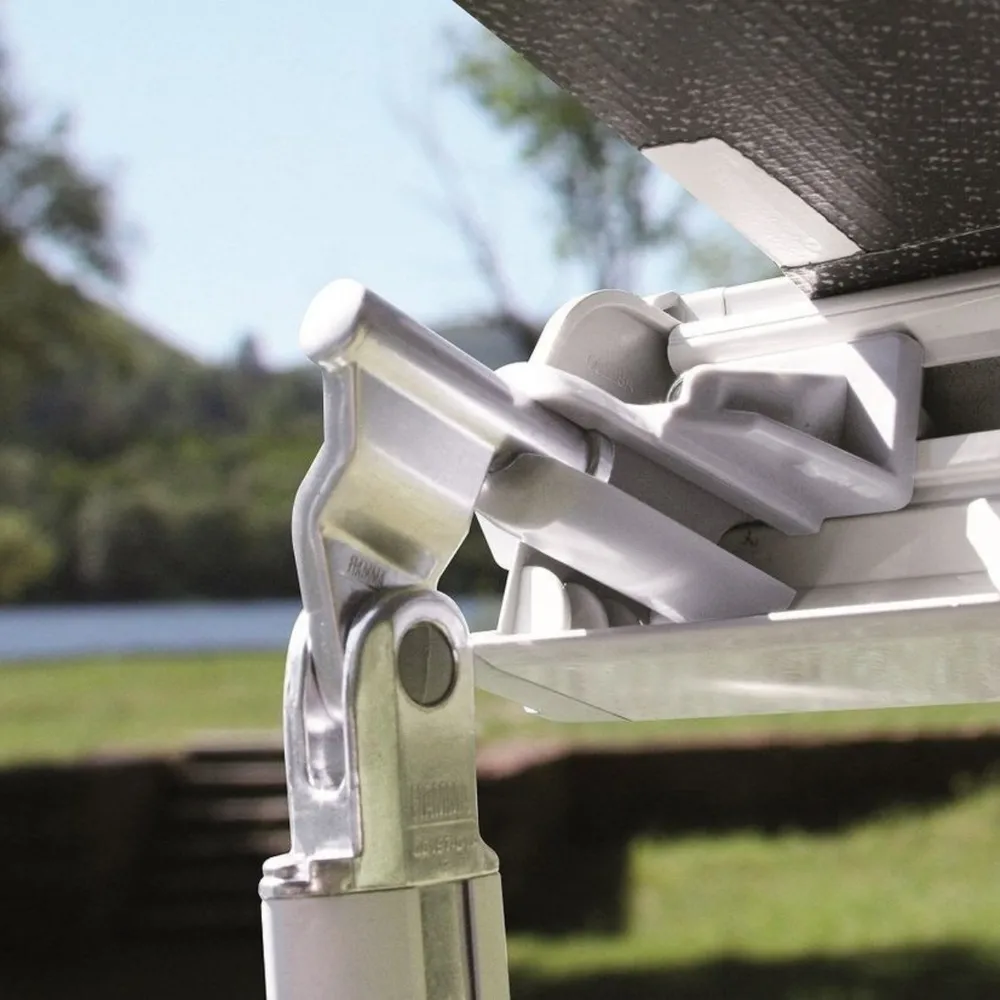

The awning includes re-inforced arms with twin cable, duel shock absorbers and a folding crank handle. Also supplied are wall brackets for legs and hooks to secure legs to the ground with fitting brackets to suit a flat surface and full fitting instructions.

Features:
  • Easy and safe to operate
  • Silent when opening/closing and while travelling
  • Easy to hook winch loop
  • Maximum shadow surface
  • Auto lock feature
Specifications:
  • Case Colour: Polar White
  • Fabric Colour: Royal Grey
  • Case length: 3480mm
  • Case Height: 136mm
  • Case Thickness: 85mm
  • Fabric Length: 3310mm
  • Awning Extension: 2500mm
  • Weight: 25kg

Installation Notes:

Please note this kit comes with the Standard Bracket Kit which allows the awning to be attached to a flat vertical face on a Caravan / Pop Top / Motorhome / Camper Trailer. Where the awning is attached to a curved surface or roof rack a separate bracket kit needs to be purchased.

Our Comments:

  • We would recommend adding the optional Fiamma Curved Rafter & Tie Down Kit (linked on the page) which will increase tension on the fabric and make the awning more sturdy (to better cope with Aussie weather!). If you want to beef it up even further then consider the Fiamma Fast Clip System (Anti-Flap Kit).
  • Note the Fiamma Awnings include a smaller sail track than what is used in most other awnings. If adding a Privacy screen please note you need one with a smaller (4mm or 5mm) spline / kedder thread. The Camp Smart XD Privacy Screens for Fiamma/Box Awnings are suitable as they have a 4mm spline. We also stock the Coast to Coast sun screens which suit the Fiamma Awnings.

More Information:

Please contact us on 1300 553 189 if you would like any further information about the product or if you would like to pick up the item from our Gladesville (Sydney) location.

See our full range of Fiamma products.

SKU 200-20280
Model # 200-20280
Barcode # 8004815351878
Brand Fiamma
Colour White
Colour Grey
Shipping Weight 38.0000kg
Shipping Width 0.160m
Shipping Height 0.180m
Shipping Length 3.650m
Shipping Cubic 0.105120000m3
Assembled Length 3.480m
Assembled Height 2.500m
Assembled Width 0.085m
Type New
Location Code Near K1
