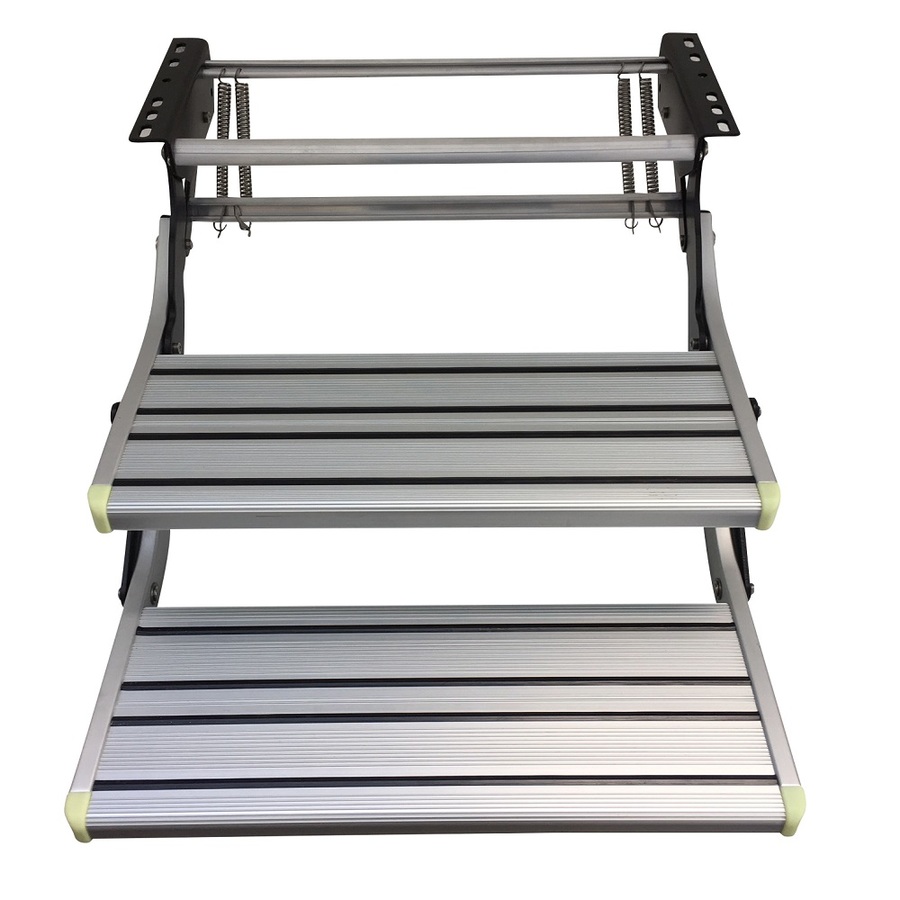

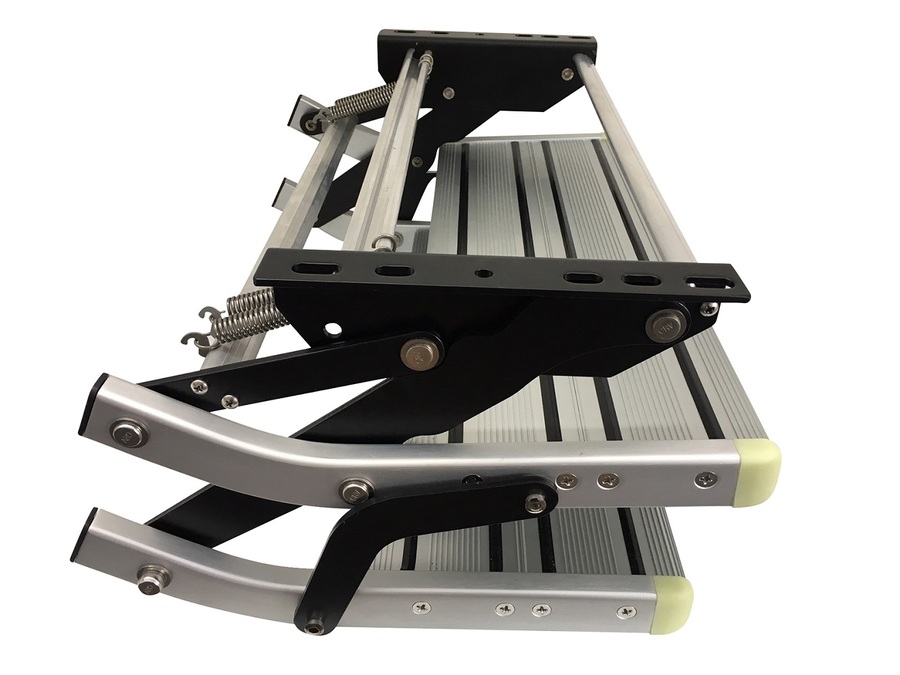

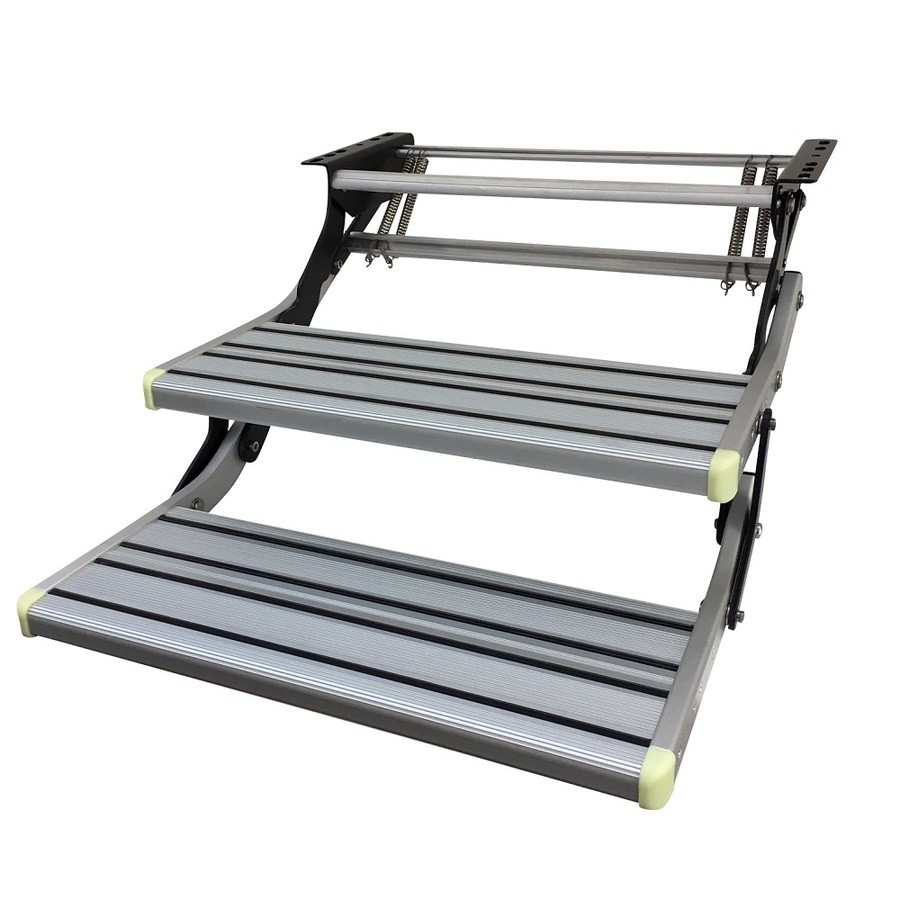

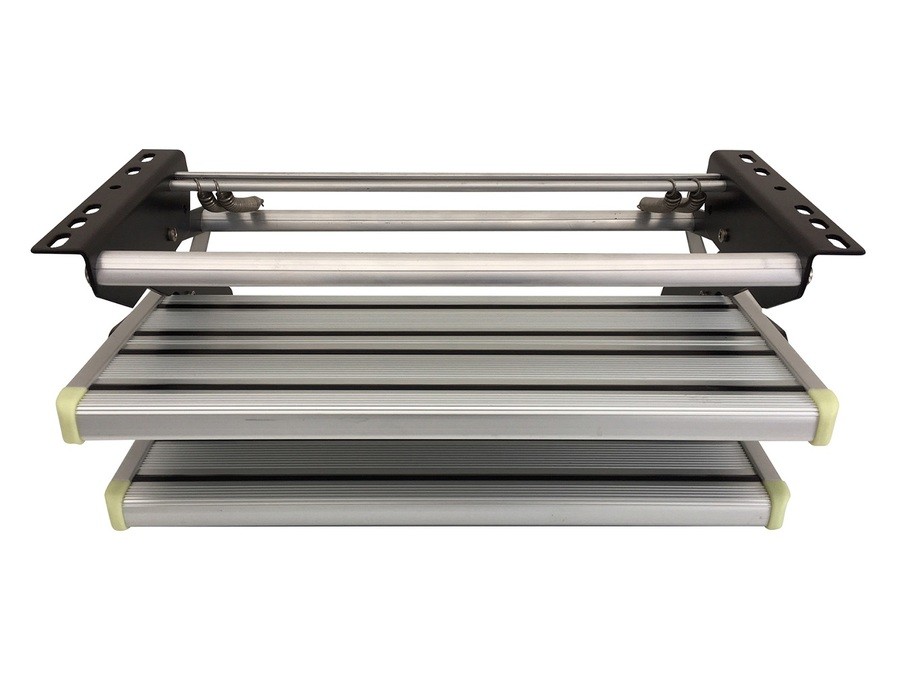

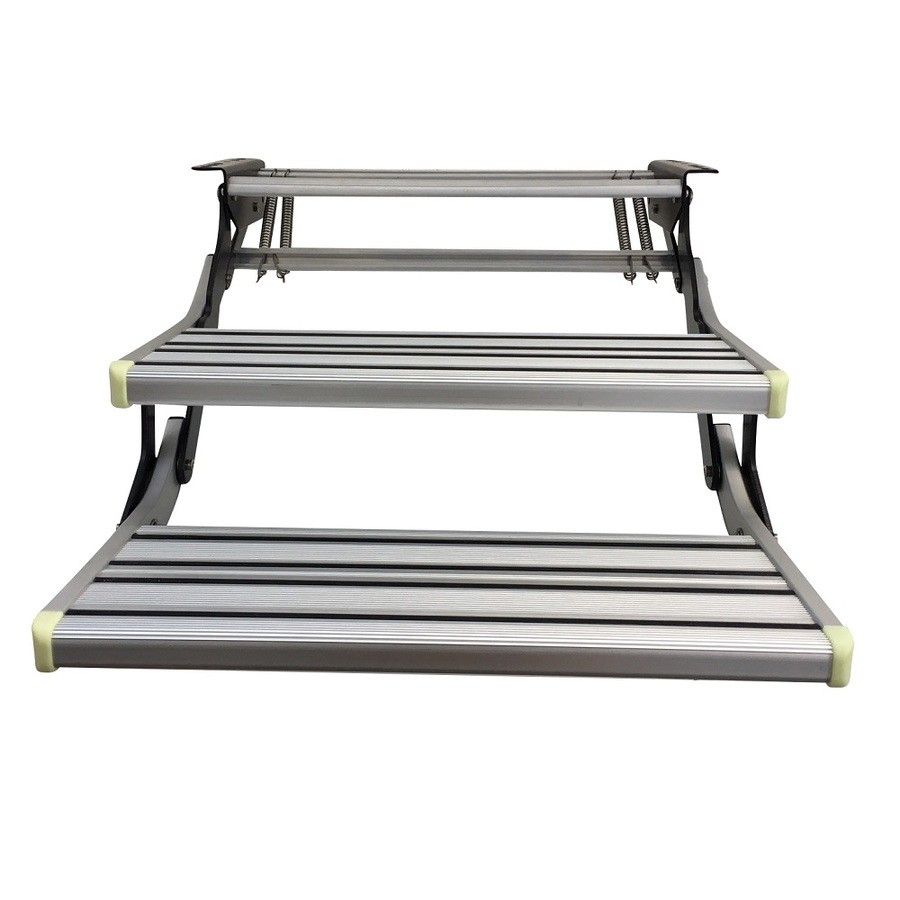

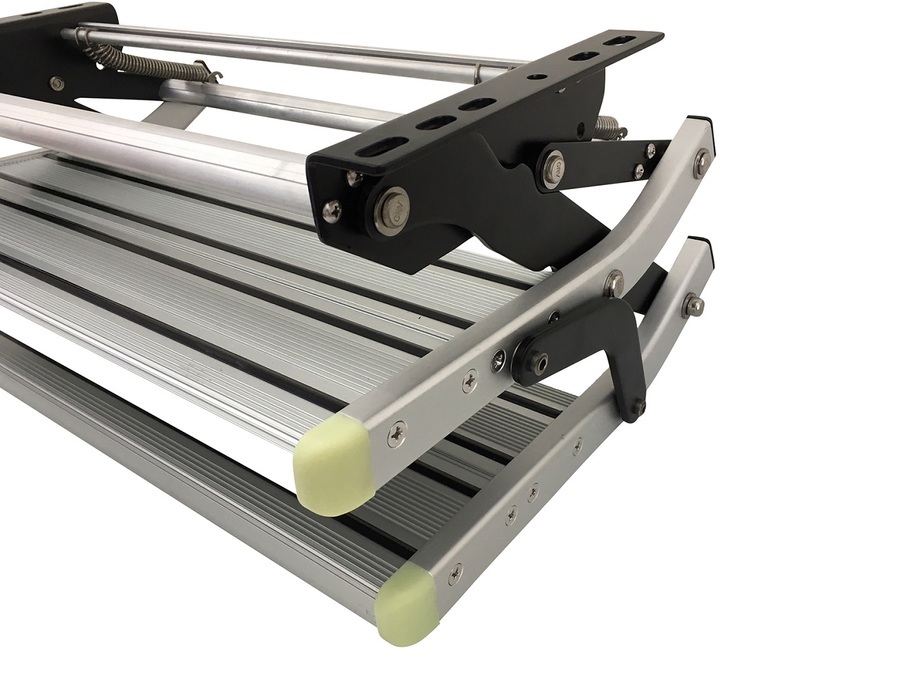

545 Double Pull Out Aluminium Step

This double pull out aluminium step features outstanding design together with a premium quality build & finish. It is stylish a yet tough and lightweight step, easy to pull out and fold away. The double step is ideal for Off-Road Caravans and Camper Trailers which have an elevated entry into the RV.

The step featured spring-loaded hinges, anti-slip ribbed tread with integrated rubber strips.

Key Features Include:

  • Designed for high stability in all conditions.
  • Lightweight but strong design, made from steel and aluminium.
  • Strong protection against salt on the steel parts through galvanization and epoxy paint
  • Anodized ribbed aluminium footboard with integrated anti-slip rubber strips
  • Illuminated corners glow in the dark at night
  • Easy to pull open from outside
  • Bolts quickly and easily to your chassis
  • Heavy-duty springs keep the step retracted when travelling, even on rough outback roads

Specifications:

  • Colour: Silver
  • Weight 9.2kg
  • 12 Month Warranty
  • Load Rating 200kg

Dimensions:

  • Step Width: 545mm
  • Width of mounting hole centres: 528mm
  • Max width (edge to edge of mounting frame): 556mm
  • Drop Height to first tread: 150mm
  • Drop Height to second tread: 280mm
  • Overall Drop Height: 320mm
  • Overall Height when closed: 260mm

SKU CSST545D
Model # CSST545D
Barcode # Does not apply
Brand TRA
Colour Grey
Shipping Weight 8.5000kg
Shipping Width 0.400m
Shipping Height 0.290m
Shipping Length 0.585m
Shipping Cubic 0.067860000m3
Assembled Length 0.580m
Assembled Height 0.280m
Assembled Width 0.545m
Type New
Location Code 70D1-71D1

Write a review


I was tied of lugging around and cleaning a separate step before finding a spot not to cause damage. This solved all problems and well built.


The single step on our Jayco OB was too high and meant we needed to carry a portable step. The two step unit is ideal.


Delivery time was speedy, Steps seem to be well made and fitted straight onto the mounting holes on the caravan. the only small issue is one of the four springs came off when I extended the step (took some time to find)


Thank you for an expedient response to our order. Received quickly & safely. We are extremely happy with our purchase. Thanks guys.
