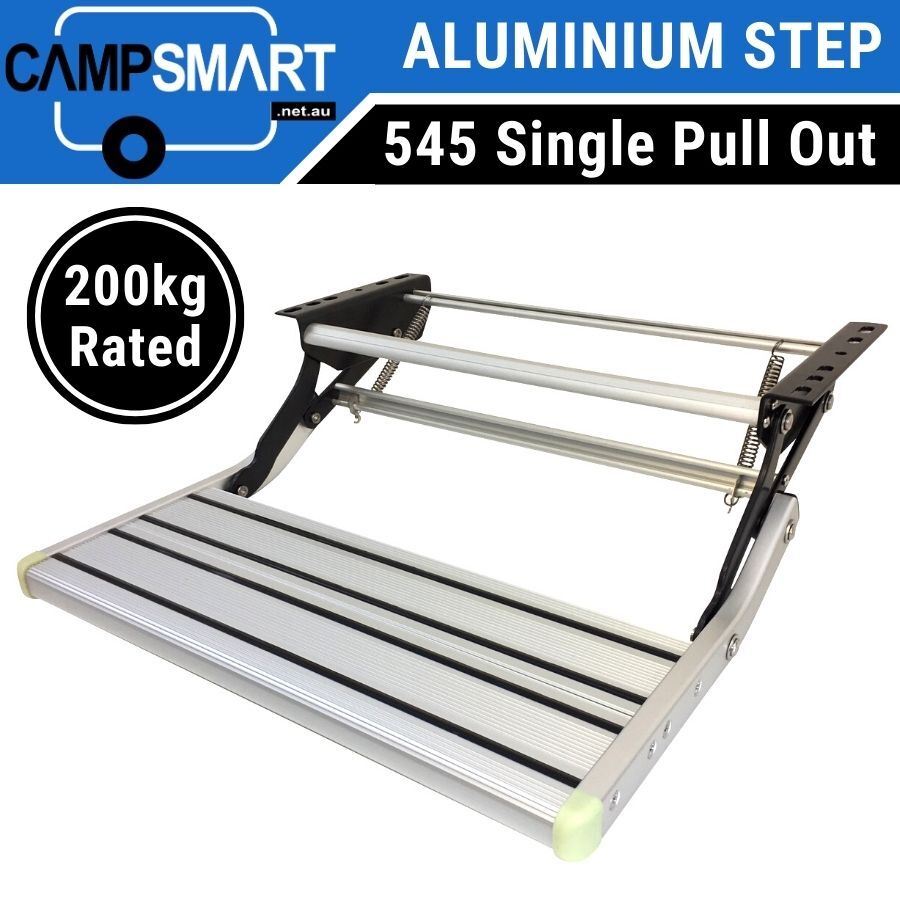

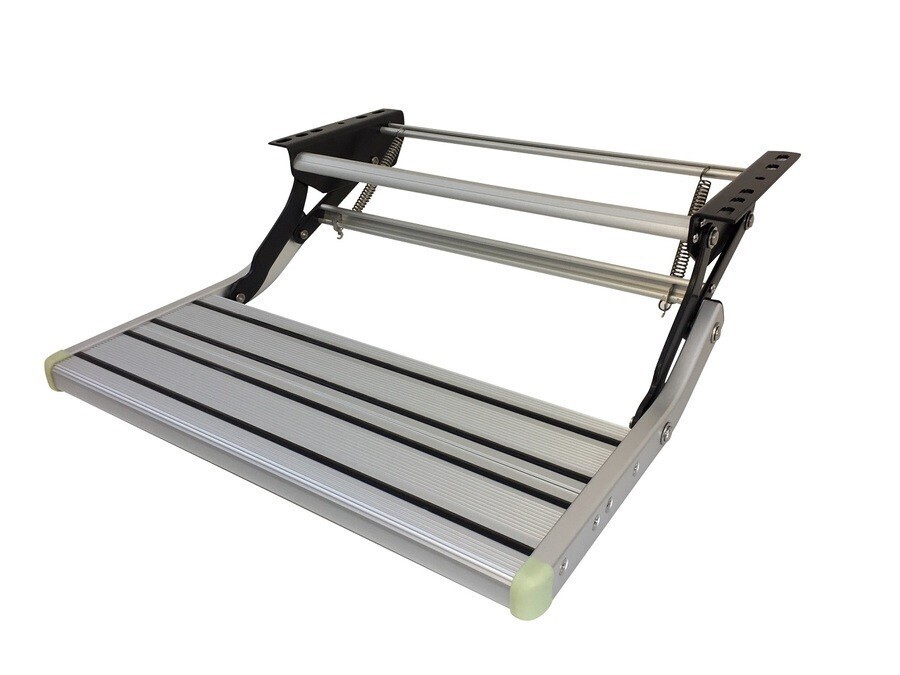

545 Single Aluminium Pull Out Step

This single pull out aluminium step features outstanding design together with a premium quality build & finish. It is stylish a yet tough and lightweight step, easy to pull out and fold away.

The step featured spring-loaded hinges, anti-slip ribbed tread with integrated rubber strips.

Key Features Include:

  • Designed for high stability in all conditions.
  • Lightweight but strong design, made from steel and aluminium.
  • Strong protection against salt on the steel parts through galvanization and epoxy paint
  • Anodized ribbed aluminium footboard with integrated anti-slip rubber strips
  • Illuminated corners glow in the dark at night
  • Easy to pull open from outside
  • Bolts quickly and easily to your chassis
  • Heavy-duty springs keep the step retracted when travelling, even on rough outback roads

Specifications:

  • Colour: Silver
  • Weight 5.5kg

Dimensions:

  • Step Width: 545mm
  • Load rating 200kg
  • Tread Depth: 200mm
  • Width of mounting hole centres: 528mm
  • Max Width to the edge of the mounting frame: 556mm
  • Overall Height when open: 185mm
  • Height to the first tread when open: 150mm
  • Height when closed: 147mm

SKU CSST545S
Model # CSST545S
Barcode # Does not apply
Brand TRA
Shipping Weight 5.3000kg
Shipping Width 0.380m
Shipping Height 0.170m
Shipping Length 0.585m
Shipping Cubic 0.037791000m3
Type New
Location Code 32D1 & 32D2

Help other users shop smarter by writing reviews for products you have purchased.

Write a review

All items in our store are from reputable Australian suppliers and are covered by a 12-month  warranty for faults and defects.

Products must be used correctly and for the function they were designed for. Damage by customer misuse is not warrantable.

For full warranty information, visit our warranty page - Click here.

If you would like to submit a warranty claim, please submit a support ticket on our Customer Support Portal.

Click here to visit the portal

Due to the high incidence of online fraud, you will be required to provide proof of any warranty claims and may be required to return the item for assessment.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.



Key Features Include:

  • Designed for high stability in all conditions.
  • Lightweight but strong design, made from steel and aluminium.
  • Strong protection against salt on the steel parts through galvanization and epoxy paint
  • Anodized ribbed aluminium footboard with integrated anti-slip rubber strips
  • Illuminated corners glow in the dark at night
  • Easy to pull open from outside
  • Bolts quickly and easily to your chassis
  • Heavy-duty springs keep the step retracted when travelling, even on rough outback roads

We Also Recommend

Single Pull Out Caravan or Camper trailer step - Steel
(5)
Aluminium Folding Double Step (Large)
(30)

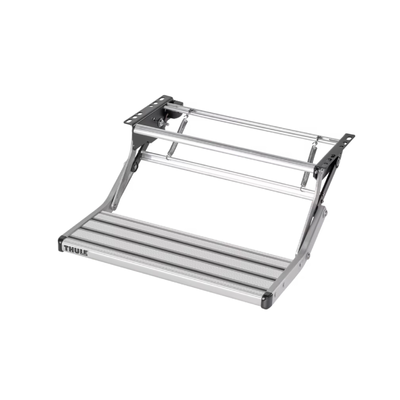

Thule 550 Manual Pull Out Step
