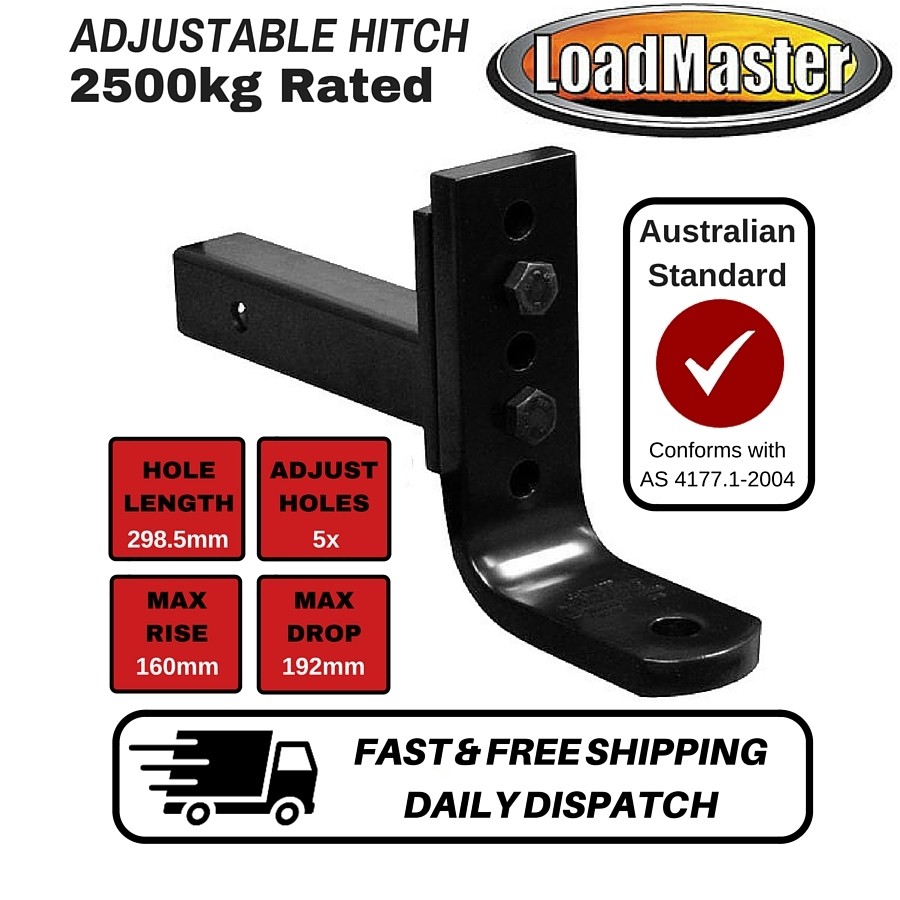

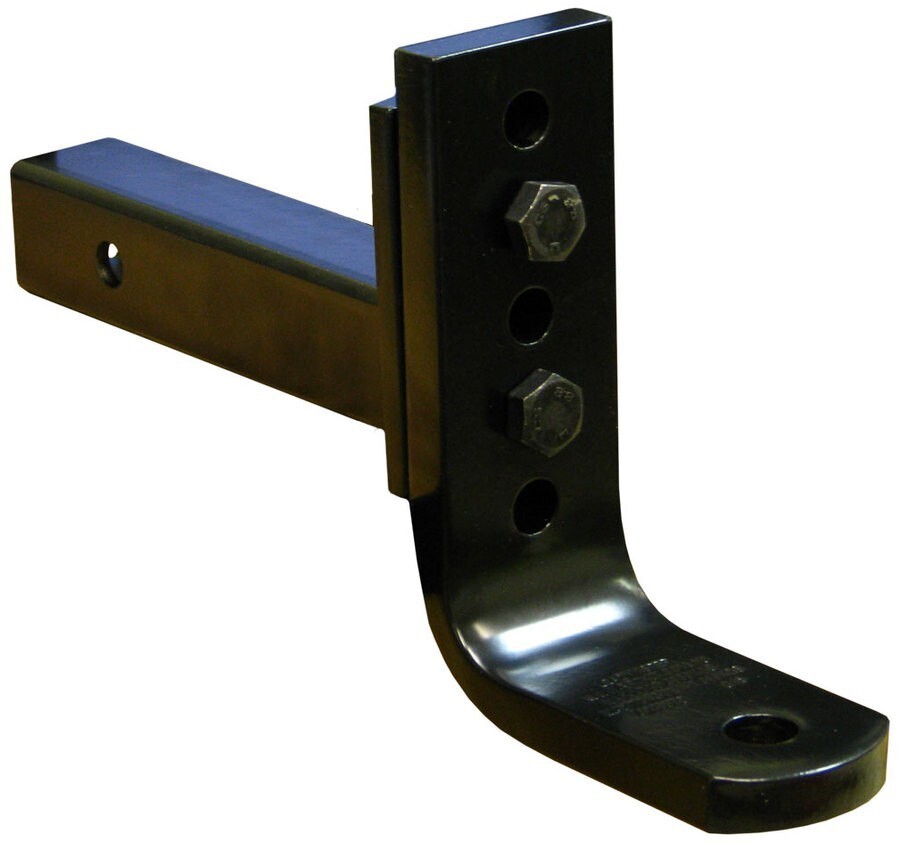

Loadmaster Adjustable Towbar Hitch - 2500kg Rated

The Loadmaster LM40502 adjustable Towbar hitch is ideal for use when towing most recreational trailers such as Caravans, Poptops and Boat Trailers. It's 2.5T capacity means it can tow up to medium sized Caravans with a max ATM of 2500kg. If you have a large Caravan / RV, see our 3500kg version in a separate listing.

The 5 adjuster holes allow for easier levelling of car and tow vehicle. Ideal for use when the towing vehicle and trailer/RV attachment points are not level, which can lead to an unstable towing load.

Features:

  • 5 Adjuster Holes allowing
  • Allows one wrench turning to tighten towball
  • Fits most popular vehicles
  • Rated up to 2500kgs
  • Suits 50mm x 50mm hitch receiver
  • Powder coated black finish
  • Solid steel construction

Specifications:

  • Max Towing Capacity 2500kg
  • Max Ball Weight 250kg

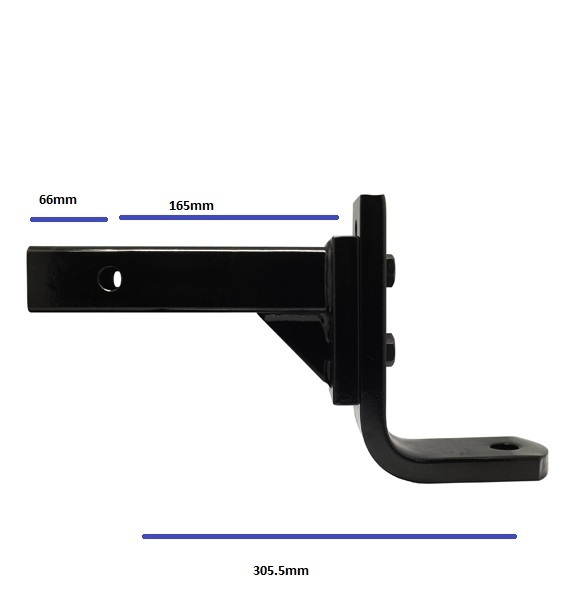

  • 298.5mm Hole Length
  • 192mm Max Drop
  • 160mm Max Rise
  • 50mm Square Receiver
  • Weight: 6.3kg

Conforms with Australian Standard AS 4177.1:2004

Notes

  • Not suitable for off-road use unless used in conjunction with an offroad coupling.
  • Bolts are tucked away inside the shank tubing (ie. not initially visible when opening the package).
  • Ensure that bolts are tight before towing!

See our full range of Loadmaster products.

SKU LM40502
Model # LM40502
Barcode # 9313743707008
Brand Loadmaster
Colour Black
Shipping Weight 6.4000kg
Shipping Width 0.290m
Shipping Height 0.090m
Shipping Length 0.280m
Shipping Cubic 0.007308000m3
Assembled Length 0.299m
Assembled Height 0.010m
Assembled Width 0.192m
Type New
Location Code 53A2

Write a review


Great quality product at a very good price. Super quick delivery too.


I couldn’t believe how quick my order arrived, days earlier than expected. Your dispatch team are very efficient. There was no problem at all to order. I’m one who likes to talk to a human being, so having a phone number to call makes my decision easy who to make an order through, and she was lovely. Thankyou for your service.


As mentioned by others, the shaft for this product is far too long with the hole for the pin too far back, making the towball too far back for the wiring and chains. A new hole was needed in order to shift the towball forward. Otherwise great product.


Very good value and works exactly as expected, only negative is that the bolts have some surface rust after a few days

All items in our store are from reputable Australian suppliers and are covered by a 12-month  warranty for faults and defects.

Products must be used correctly and for the function they were designed for. Damage by customer misuse is not warrantable.

For full warranty information, visit our warranty page - Click here.

If you would like to submit a warranty claim, please submit a support ticket on our Customer Support Portal.

Click here to visit the portal

Due to the high incidence of online fraud, you will be required to provide proof of any warranty claims and may be required to return the item for assessment.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.



Features:

  • 5 Adjuster Holes allowing
  • Allows one wrench turning to tighten towball
  • Fits most popular vehicles
  • Rated up to 2500kgs
  • Suits 50mm x 50mm hitch receiver
  • Powder coated black finish
  • Solid steel construction

LM40502

Specifications:

  • Max Towing Capacity 2500kg
  • Max Ball Weight 250kg
  • 298.5mm Hole Length
  • 192mm Max Drop
  • 160mm Max Rise
  • 50mm Square Receiver
  • Weight: 6.3kg
