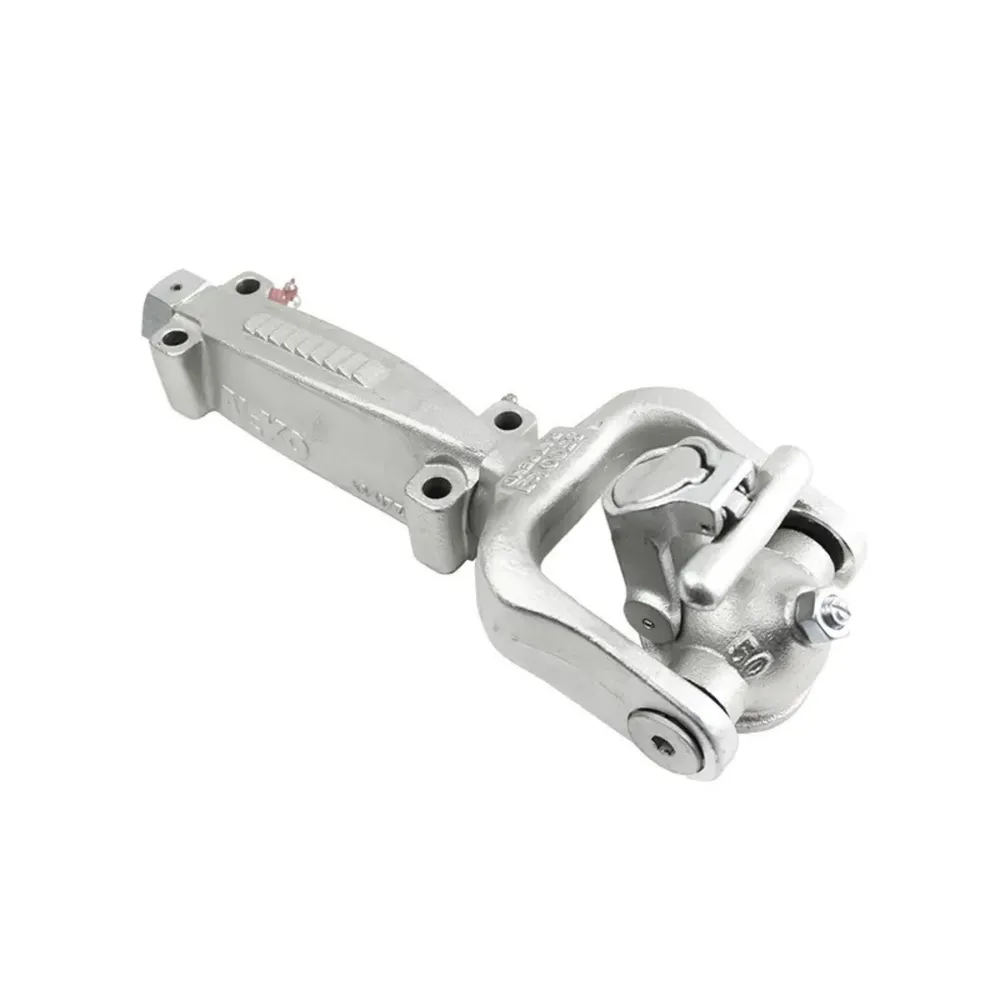

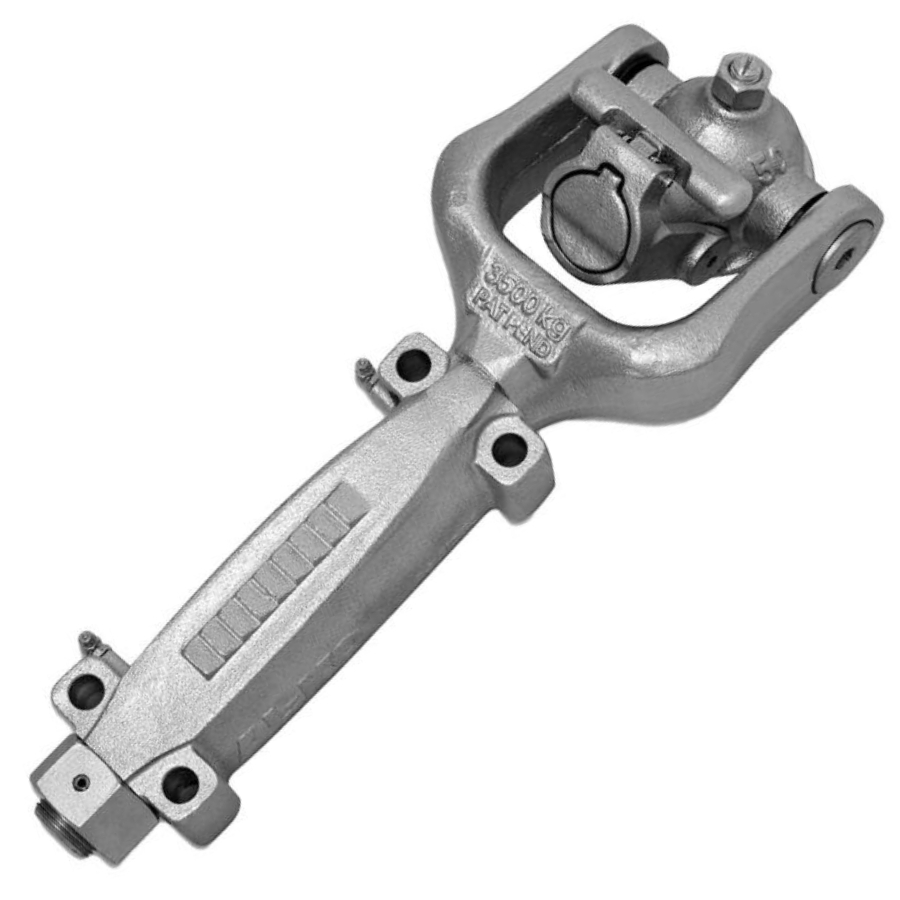

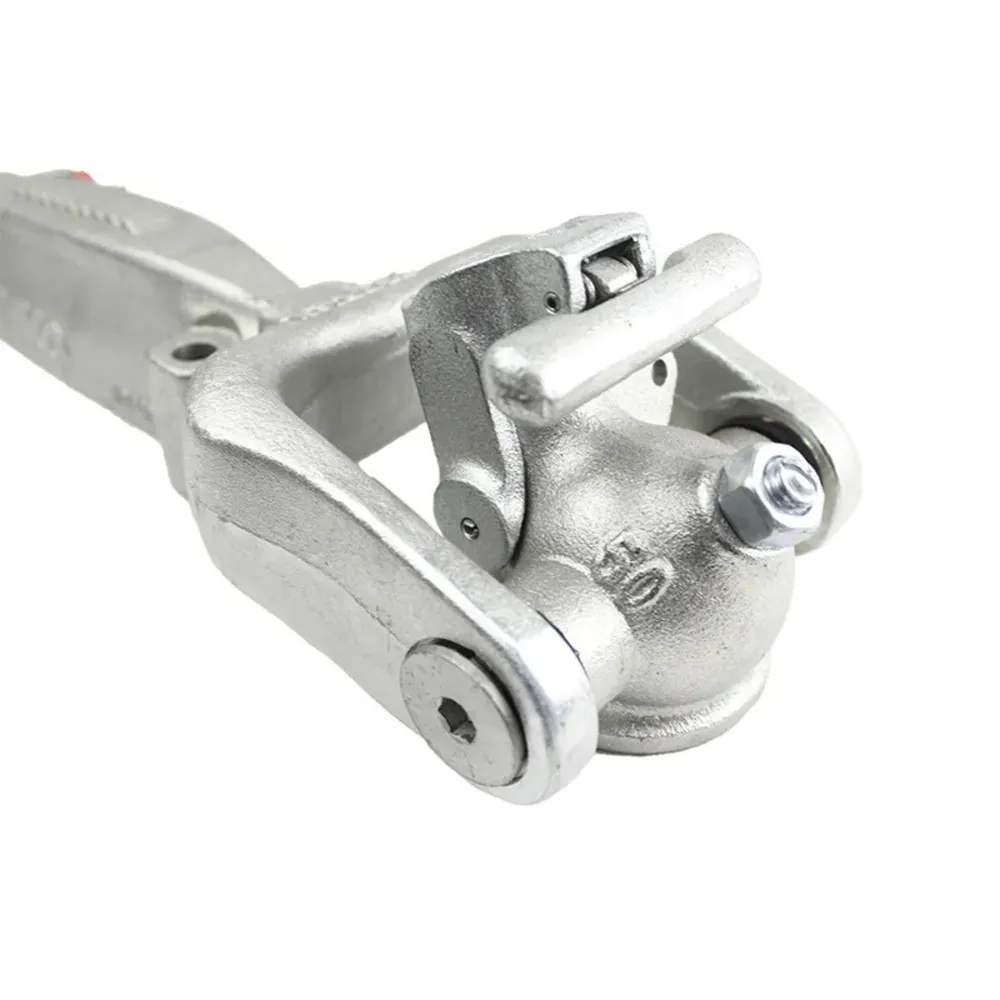

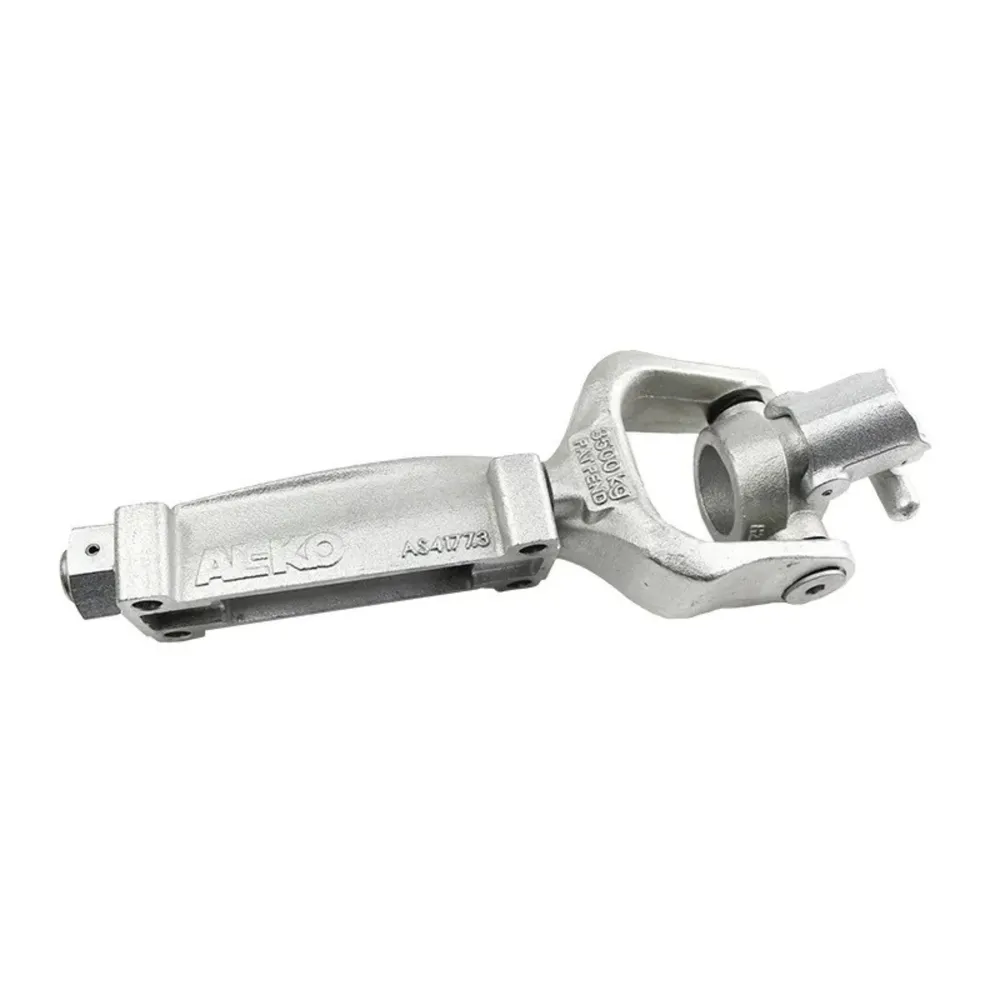

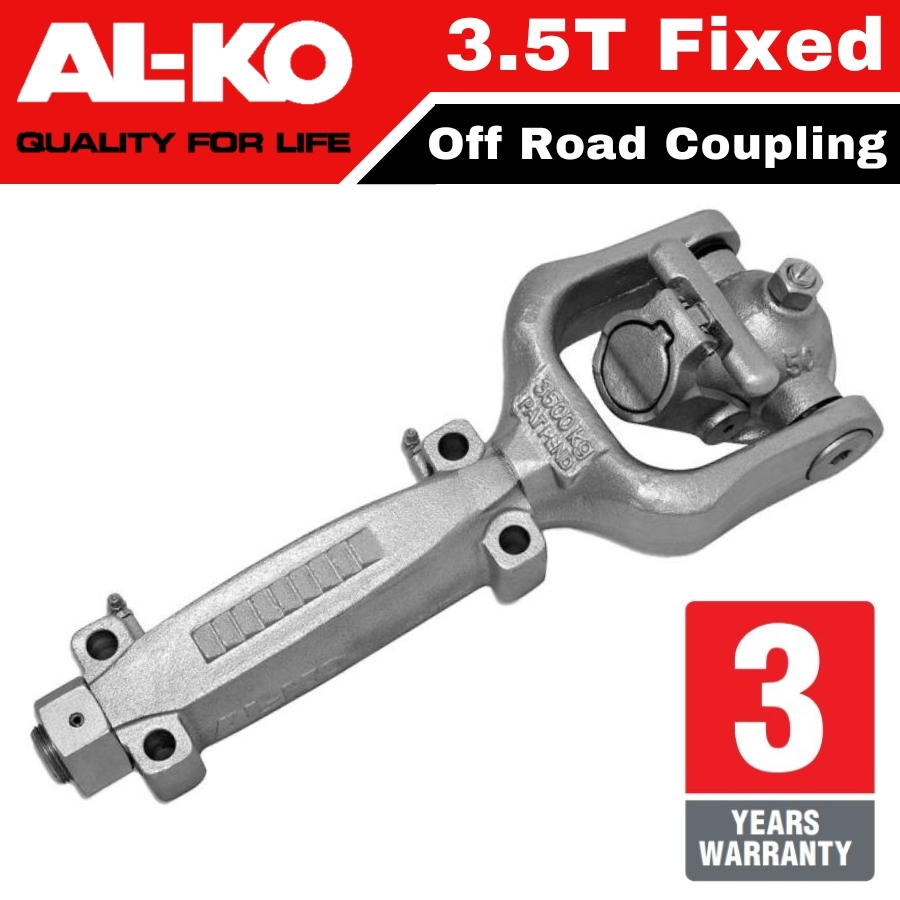

AL-KO 3.5T Off Road Coupling - Fixed to Suit Electric Brakes

Engineered by AL-KO in Australia specifically for extreme off-road adventure, the new AL-KO Off-Road Ball Coupling incorporates extreme vertical and horizontal articulation as well as a quick & easy hitching design that requires no pin or hole alignment.

When a standard coupling is used for rough off-road use, the Australian Standard degree of articulation (or angles of available movement) may be insufficient. This articulation problem was solved by introducing AL-KO’s “Original” Off-Road Ball Coupling.

AL-KO’s Australian engineering team have since developed a new generation product that provides further improved ease of use and durability for extreme off-road applications. The new Off-Road Ball Coupling is made from high-quality materials designed to endure serious off-road use and provide you with the confidence you need to take your rig into even the most remote parts of Australia. Designed for use with a standard 50mm ball.

Specifications:

  • Suits brake type: Electric
  • Suits 50mm Ball
  • Capacity: 3500 kg

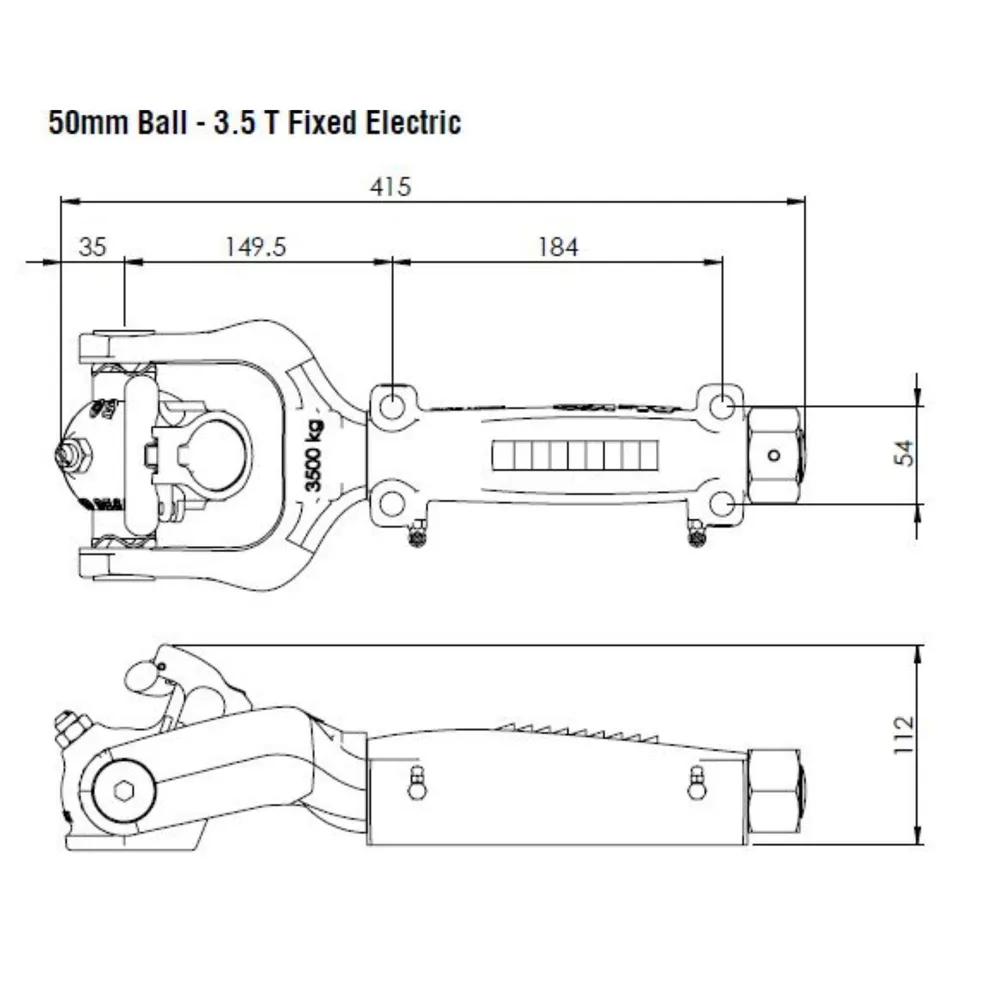

  • Centre of ring to first hole 149.5mm
  • Mounting Pattern: 184mm x 54mm
  • Hole Diameter: 13.5mm
  • Surface Finish: Zinc plated

Key Features at a Glance:

  • Extreme articulation (vertically and horizontally) is suitable for extreme off-road towing.
  • Overcomes the articulation limitations of the traditional ball coupling.
  • Tough zinc-plated components. Built for serious off-road use.
  • Available in fixed and override configurations.
  • Suitable for retrofit to existing caravans and camper trailers.
  • Can be used with level rides for on-road towing.
  • Uses the standard tow vehicle set up for the ultimate convenience.
  • Designed to clear most 4wd tailgates.
  • No difficult pin or hole alignment as is associated with most pin-type off-road couplings.
  • Engineered by AL-KO – the global leader in caravan chassis components to specifically suit Australian conditions.
  • Level rides should be removed when towing off-road to allow for the articulation of the coupling.

SKU 619350
Model # 619350
Barcode # Does not apply
Brand AL-KO
Colour Grey
Shipping Weight 11.0000kg
Shipping Width 0.250m
Shipping Height 0.150m
Shipping Length 0.460m
Shipping Cubic 0.017250000m3
Type New
Location Code 52C2
