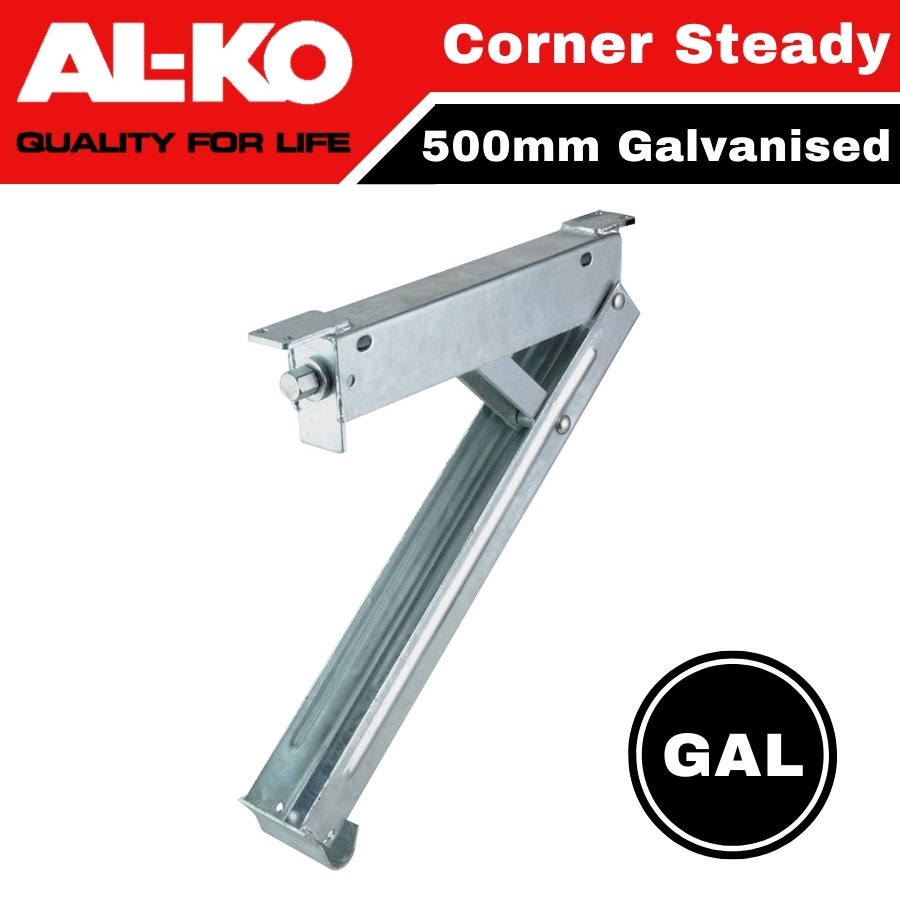

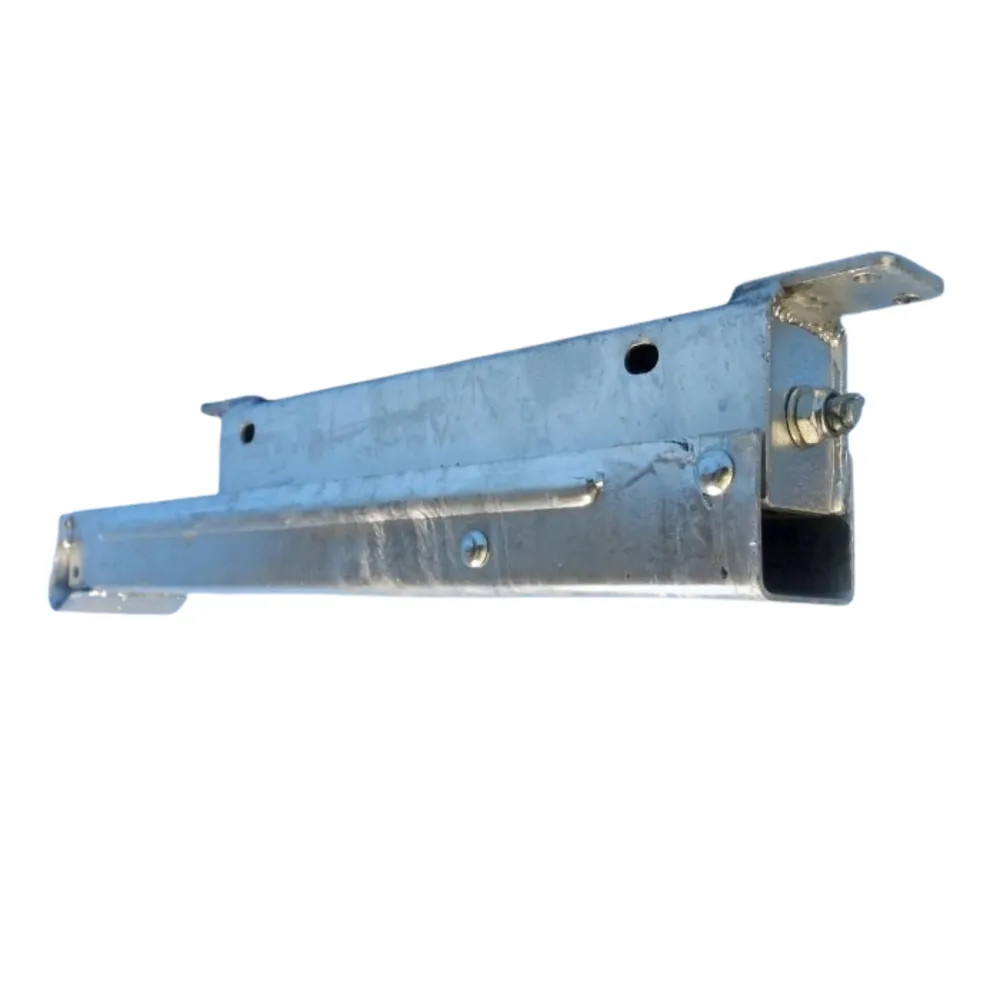

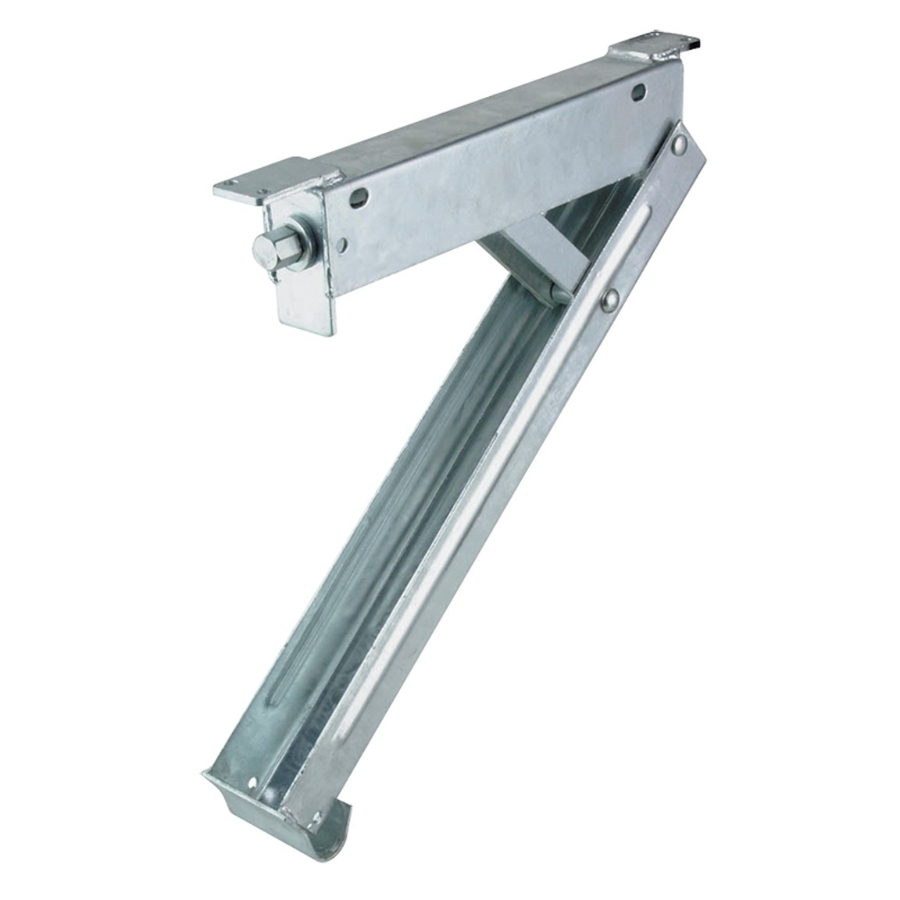

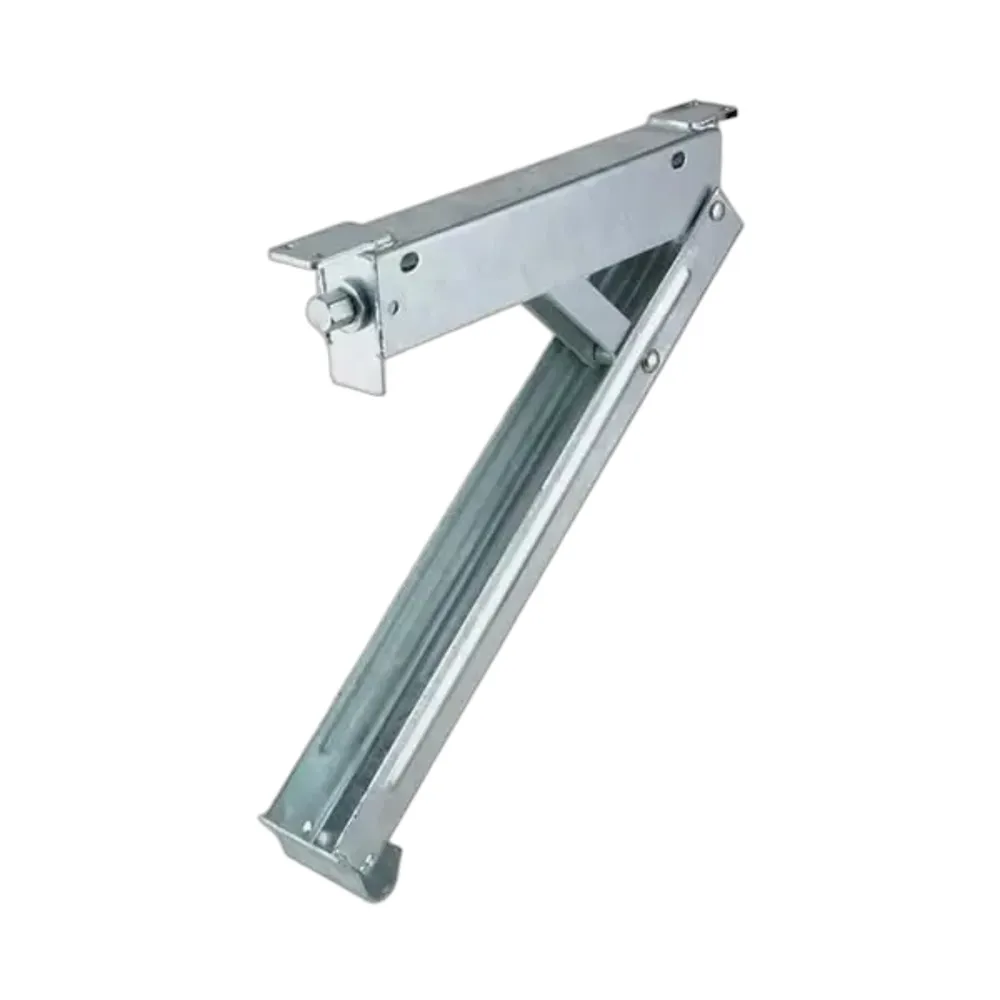

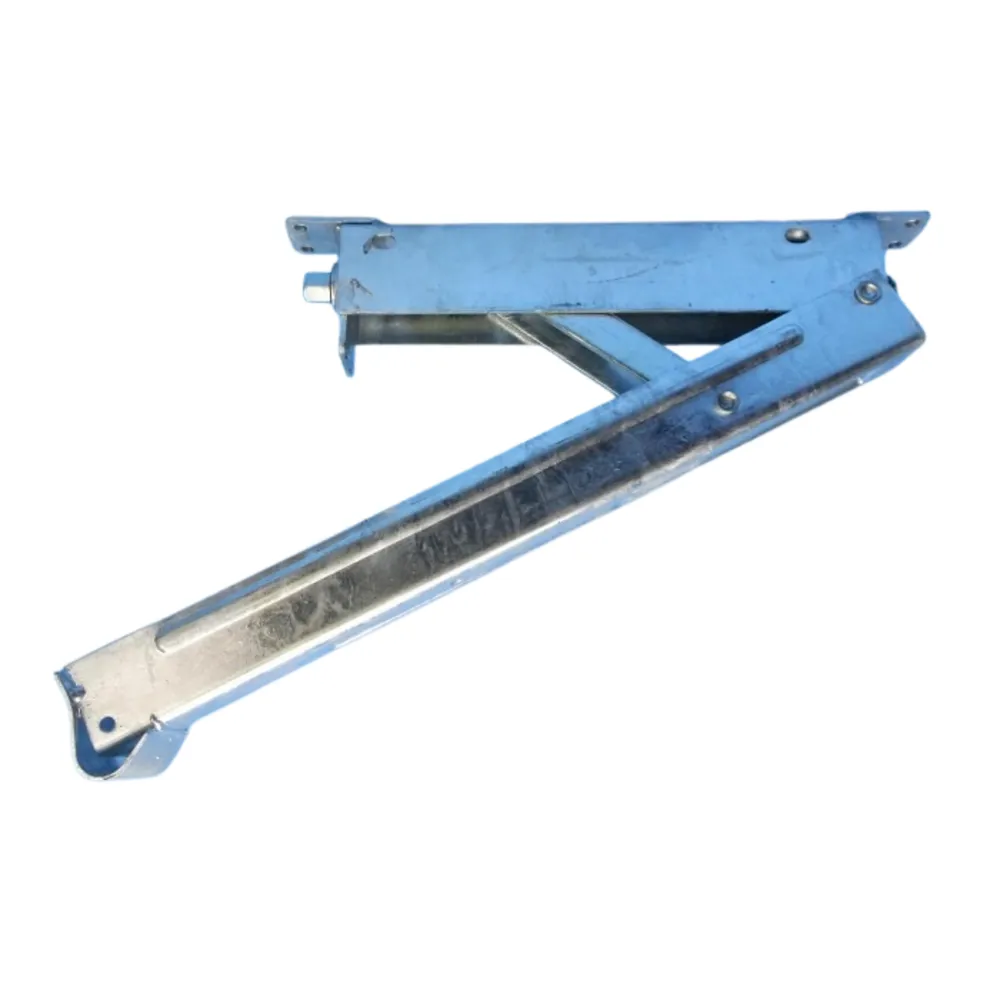

AL-KO Corner Steady Hex Drive 500mm (Galvanised Top Bolt On)

When rigid stability is required the AL-KO range of stands fits the bill. ALKO Corner Steadies are designed to stabilize a trailer or caravan when stationary. These steady stands are ideal for fixed location stabilizing of trailers and plant equipment.

This 500mm galvanised model features a top bolt-on mounting type.

Key Features & Specifications:

  • 500mm of Adjustable Height suitable for most On-Road RVs
  • 100mm Closed Height
  • Surface Finish: Galvanised
  • Mounting Type: Top bolt
  • Mounting Spacing: 25mm between hole centres on each end
  • Bolt-on Section Length: 395mm
  • Hole Size: 6mm
  • 19mm Hex Nut

Notes:

  • Corner steadies are not designed to be used as a jack or as a means of lifting the trailer or caravan off the ground. They are designed to stabilize the trailer or caravan when stationary.
  • The 500mm sized unit is the smallest in terms of height which generally suits on-road touring Caravans. For taller Off-Road models, the 700mm version may be more suitable (but please measure to be sure).

See our full range of AL-KO products.

SKU 654500G
Model # 654500G
Barcode # Does not apply
Brand AL-KO
Colour Silver
Type Levelling
Material Steel
Shipping Weight 4.2000kg
Shipping Width 0.200m
Shipping Height 0.120m
Shipping Length 0.560m
Shipping Cubic 0.013440000m3
Assembled Length 0.500m
Assembled Height 0.750m
Assembled Width 0.100m
Type New
Location Code 55A3
