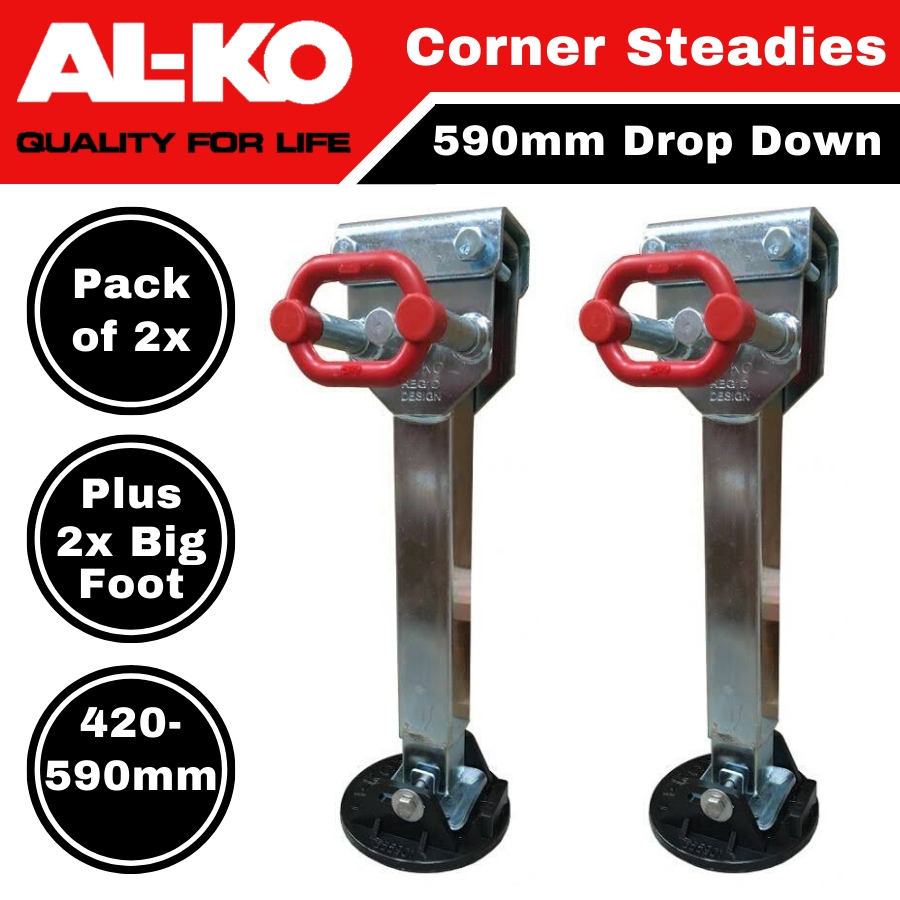

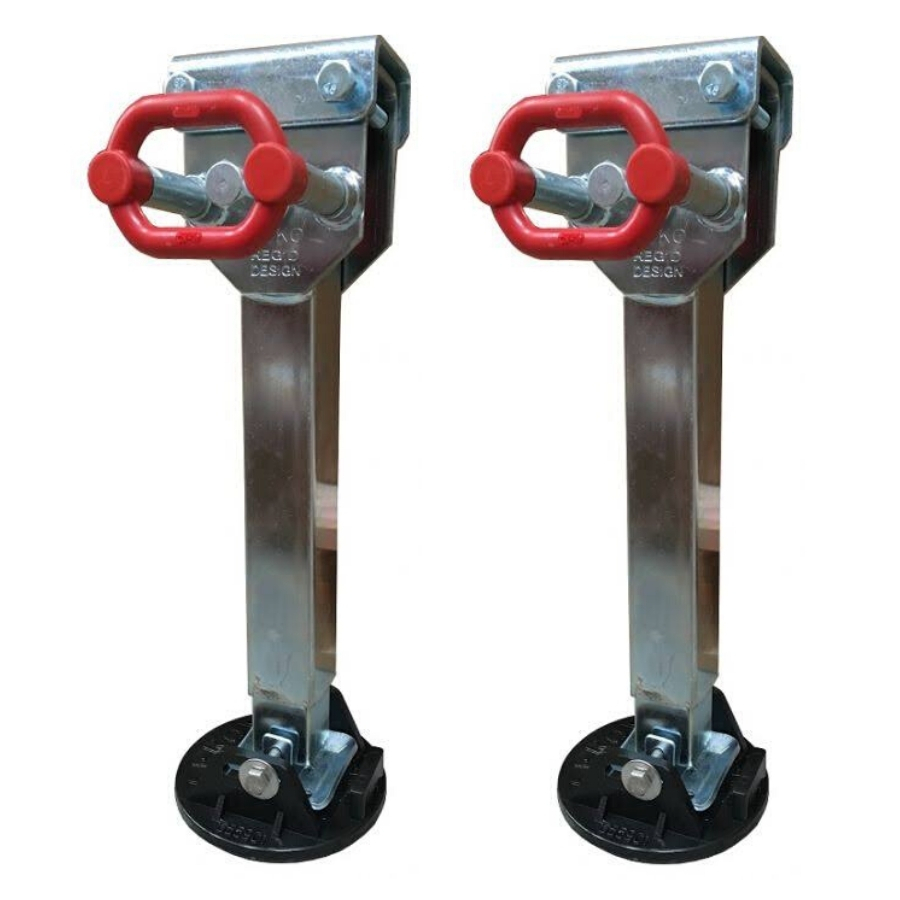

AL-KO Drop Down Corner Steadies 590mm (Pair)

ALKO Corner Steadies are designed to stabilize a trailer or caravan when stationary. The zinc-plated 590mm drop-down corner steady has a hex drive and comes complete with a bigfoot making it ideal for softer ground. The Alko leg comes with a mounting plate which can be welded on allowing the corner steady unit to be then bolted to the bracket (with included bolts). This makes it easily removed & swapped over if required.

The "Drop-Down" style steadies can be swung from the horizontal traveling position to different angles including the optimum position of vertical. The corner steady then requires only a small amount of winding to steady the caravan, pop top or camper trailer. The minimum vertical height is 420mm although the steadies can be set down on an angle when local ground levels vary and don't allow a full vertical extension. The maximum height is 590mm (Including the Big Foot & Mounting Bracket).

AL-KO corner steadies have been tested and meet the requirements of the Caravan Industry Association Australia (CIAA), the Australian controlling body for caravan manufacturing standards.

Key Features & Specifications:

  • Includes a pair (2x) of Corner Steadies
  • 590mm version is suitable for most On-Road RVs
  • Includes fitted Alko Bigfoot for each corner steady
  • Zinc plated
  • 590mm in Height fully extended (Bigfoot Included)
  • 420mm minimum vertical height (Bigfoot Included)
  • Leg operates at various angles allowing for smaller height
  • Stowed height is 125mm
  • Mounting bracket included for chassis installation.
  • Bolt on installation for legs to mounting bracket for easy changeover (Two Bolt Hole 80 mm Centres – Leg Top Section Measures L 100 mm x W 65 mm)
  • 19-mm standard hex wind nut
  • Features smooth grip handle for comfort

Notes:

  • Corner steadies are not designed to be used as a jack or as the means of lifting the trailer or caravan off the ground. They are designed to stabilize the trailer or caravan when stationary.
  • The 590mm sized unit is the smallest in terms of height which generally suits on-road Touring Caravans. For taller Off-Road models, the 740mm version may be more suitable (but please measure to be sure).

See our full range of AL-KO products.

SKU 654859X2
Model # 654859X2
Barcode # Does not apply
Brand AL-KO
Colour Silver
Shipping Weight 10.6000kg
Shipping Width 0.320m
Shipping Height 0.120m
Shipping Length 0.520m
Shipping Cubic 0.019968000m3
Assembled Length 0.590m
Assembled Height 0.100m
Assembled Width 0.070m
Type New
Location Code BOX 1
