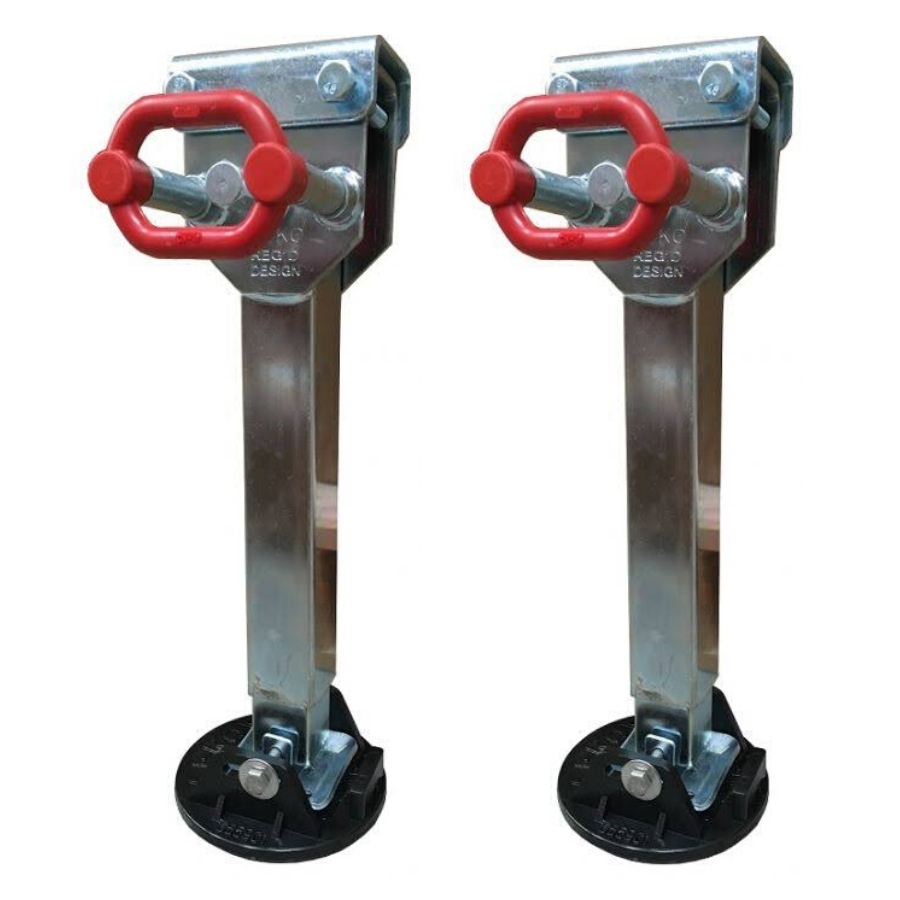

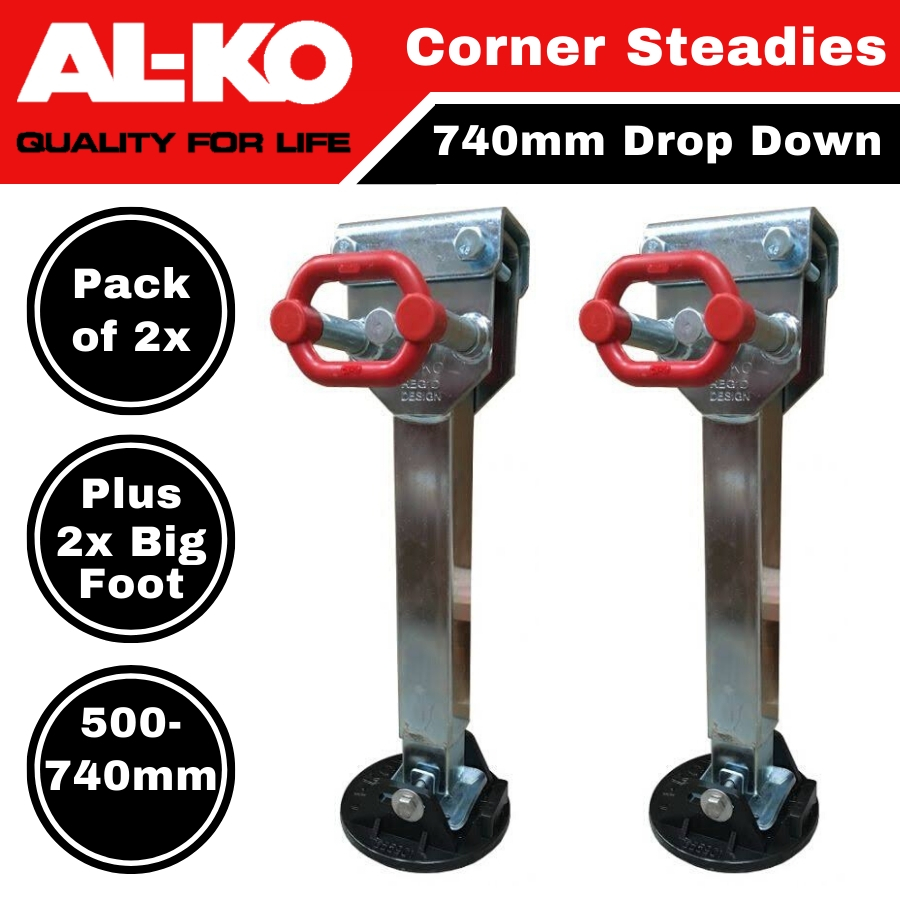

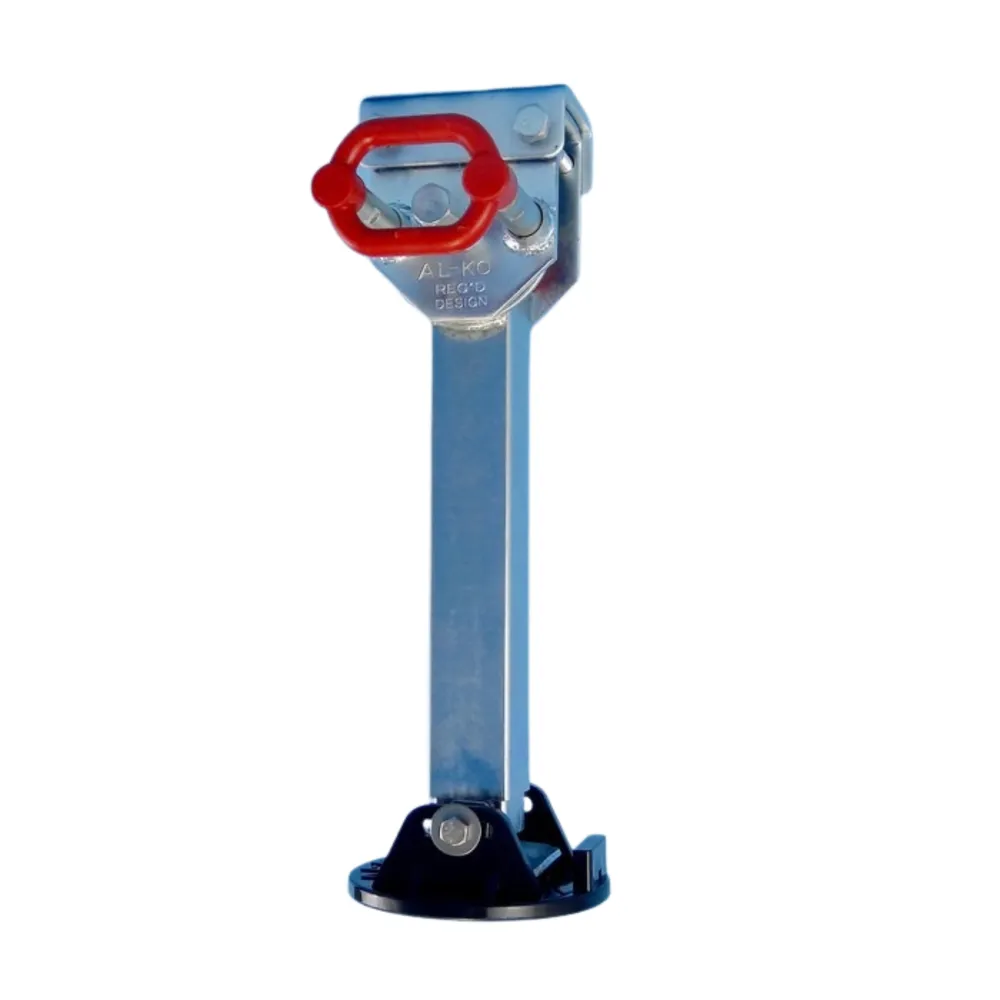

AL-KO Drop Down Corner Steadies 740mm (Pair)

ALKO Corner Steadies are designed to stabilize a trailer or caravan when stationary. The zinc-plated 740mm drop-down corner steadies have a hex drive and comes complete with a bigfoot making it ideal for softer ground. The Alko leg comes with a mounting plate that can be welded on allowing the corner steady unit to be then bolted to the bracket (with included bolts). This makes it easily removed & swapped over if required.

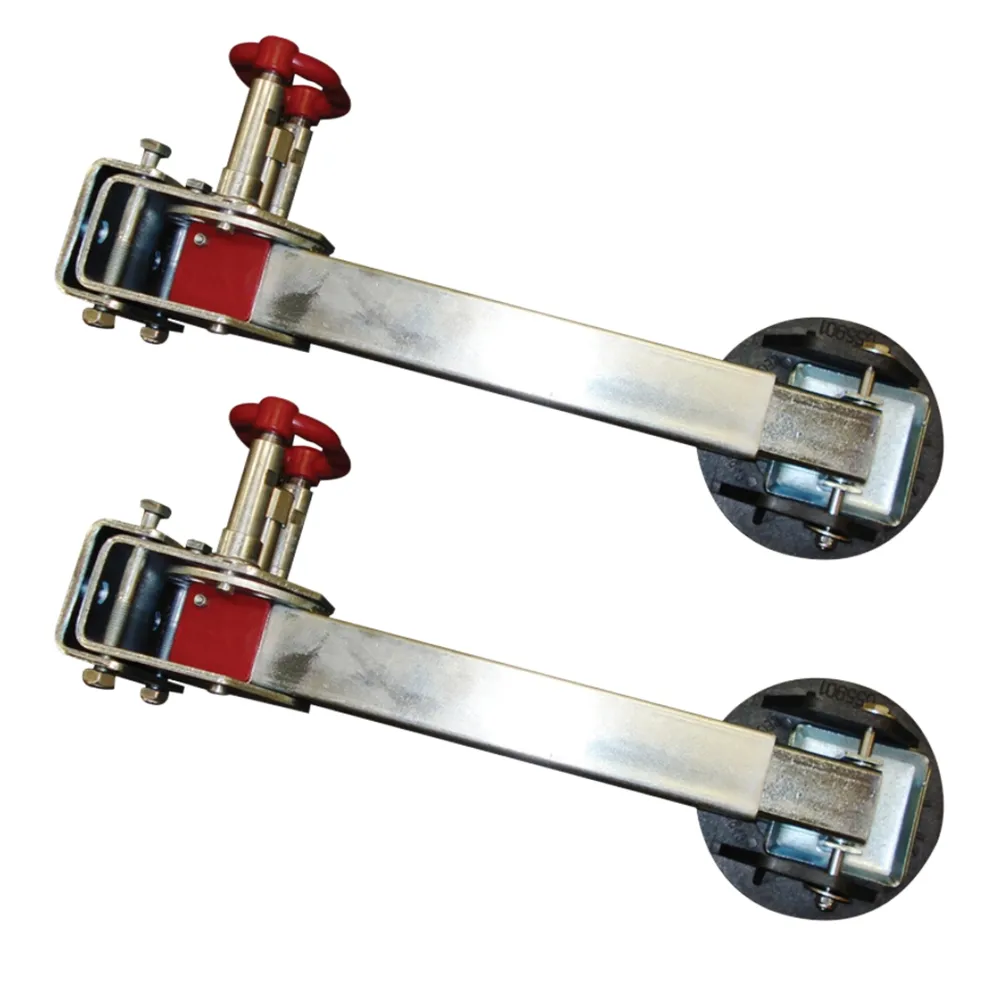

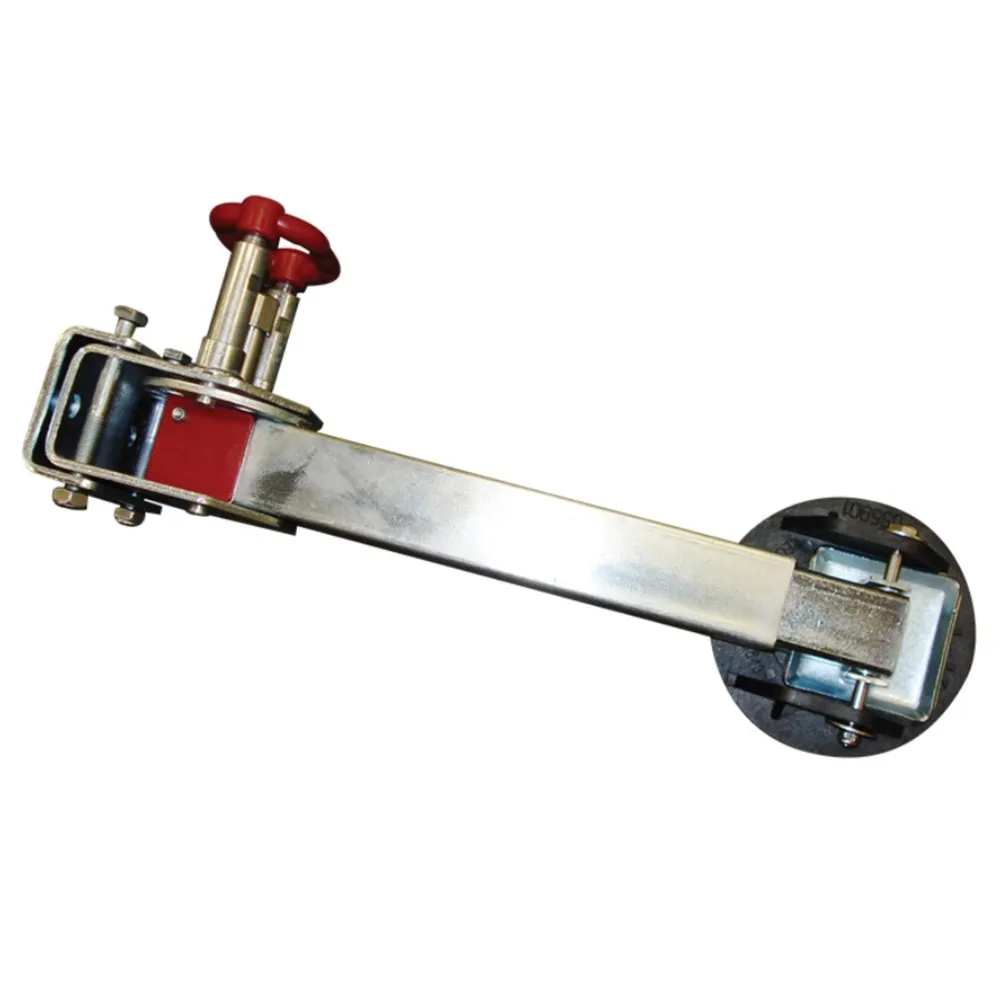

The "Drop-Down" style steadies can be swung from the horizontal travelling position to different angles including the optimum position of vertical. The corner steady then requires only a small amount of winding to steady the caravan, pop top or camper trailer. The minimum vertical height is 500mm although the steadies can be set down on an angle when local ground levels vary and don't allow full vertical extension. The maximum height is 740mm (Including the Big Foot & Mounting Bracket).

AL-KO corner steadies have been tested and meet the requirements of the Caravan Industry Association Australia (CIAA), the Australian controlling body for caravan manufacturing standards.

Key Features & Specifications:

  • Includes pair of Corner Steadies
  • 740mm version is suitable for most Off-Road RVs
  • Includes fitted Alko Bigfoot (x2)
  • Zinc plated
  • 740mm in Height fully extended (Bigfoot Included)
  • 500mm minimum vertical height (Bigfoot Included)
  • Leg operates at various angles allowing for smaller height
  • Stowed height is 125mm
  • Mounting bracket included for chassis installation.
  • Bolt-on installation for legs to mounting bracket for easy changeover (Two Bolt Hole 80 mm Centres – Leg Top Section Measures L 100 mm x W 65 mm)
  • 19-mm standard hex wind nut
  • Features smooth grip handle for comfort

Notes:

  • Corner steadies are not designed to be used as a jack or as the means of lifting the trailer or caravan off the ground. They are designed to stabilize the trailer or caravan when stationary.
  • The 740mm sized unit generally suits off-road Caravans. For lower On-Road touring models, the 590mm version may be more suitable (but please measure to be sure).
  • Please note the winder handle is not included.

See our full range of AL-KO products.

SKU 654874X2
Model # 654874X2
Barcode # Does not apply
Brand AL-KO
Colour Grey
Shipping Weight 11.6000kg
Shipping Width 0.320m
Shipping Height 0.120m
Shipping Length 0.540m
Shipping Cubic 0.020736000m3
Assembled Length 0.740m
Assembled Height 0.140m
Assembled Width 0.060m
Type New
Location Code BOX 2

Write a review


A great product purchased at the best price. The items arrived in good order and were exactly as described. Fitted and operate perfectly.


Happy with order and quick delivery

All items in our store are from reputable Australian suppliers and are covered by a 12-month  warranty for faults and defects.

Products must be used correctly and for the function they were designed for. Damage by customer misuse is not warrantable.

For full warranty information, visit our warranty page - Click here.

If you would like to submit a warranty claim, please submit a support ticket on our Customer Support Portal.

Click here to visit the portal

Due to the high incidence of online fraud, you will be required to provide proof of any warranty claims and may be required to return the item for assessment.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.



Key Features & Specifications:

  • Includes pair of Corner Steadies
  • 740mm version is suitable for most Off-Road RVs
  • Includes fitted Alko Bigfoot (x2)
  • Zinc plated
  • 740mm in Height fully extended (Bigfoot Included)
  • 500mm minimum vertical height (Bigfoot Included)
  • Leg operates at various angles allowing for smaller height
  • Stowed height is 125mm
  • Mounting bracket included for chassis installation.
  • Bolt-on installation for legs to mounting bracket for easy changeover (Two Bolt Hole 80 mm Centres – Leg Top Section Measures L 100 mm x W 65 mm)
  • 19-mm standard hex wind nut
  • Features smooth grip handle for comfort

Key Features & Specifications:

  • Includes pair of Corner Steadies
  • 740mm version is suitable for most Off-Road RVs
  • Includes fitted Alko Bigfoot (x2)
  • Zinc plated
  • 740mm in Height fully extended (Bigfoot Included)
  • 500mm minimum vertical height (Bigfoot Included)
  • Leg operates at various angles allowing for smaller height
  • Stowed height is 125mm
  • Mounting bracket included for chassis installation.
  • Bolt-on installation for legs to mounting bracket for easy changeover (Two Bolt Hole 80 mm Centres – Leg Top Section Measures L 100 mm x W 65 mm)
  • 19-mm standard hex wind nut
  • Features smooth grip handle for comfort

We Also Recommend

Dometic 2 Burner Gas Stove Cooktop with Glass Lid
(8)
SMEV Dometic Stainless Steel Sink & Glass Lid (No Tap)
(1)
Seaflo RV Supreme MK2 12V Water Pump
(16)

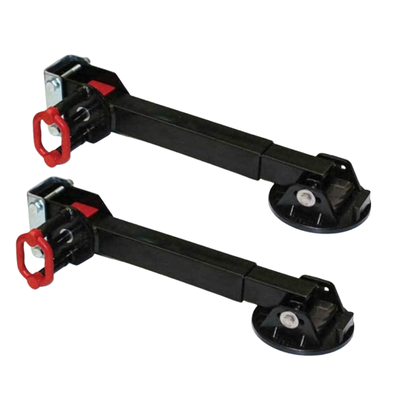

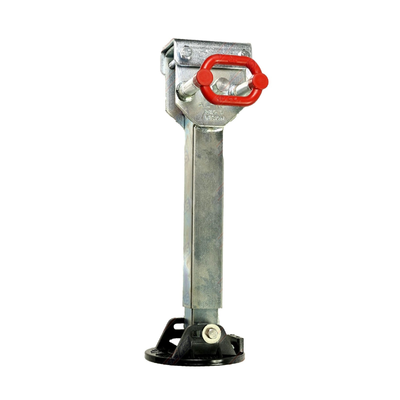

ALKO Drop Down Corner Steady 590mm
