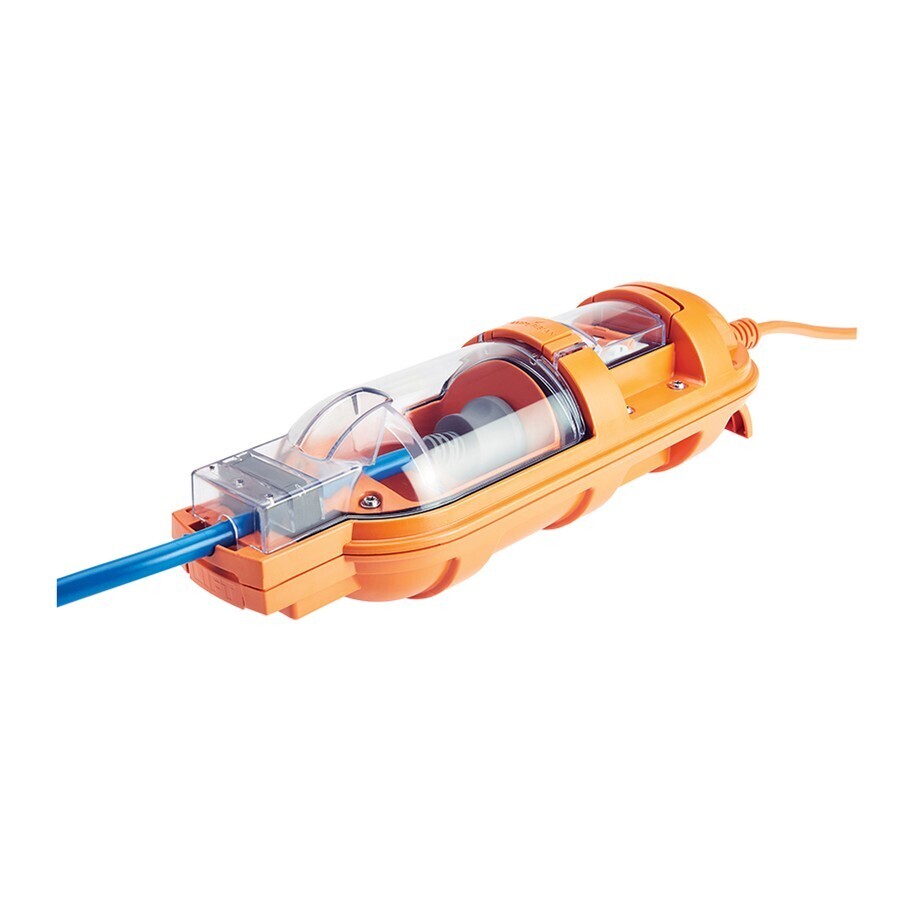

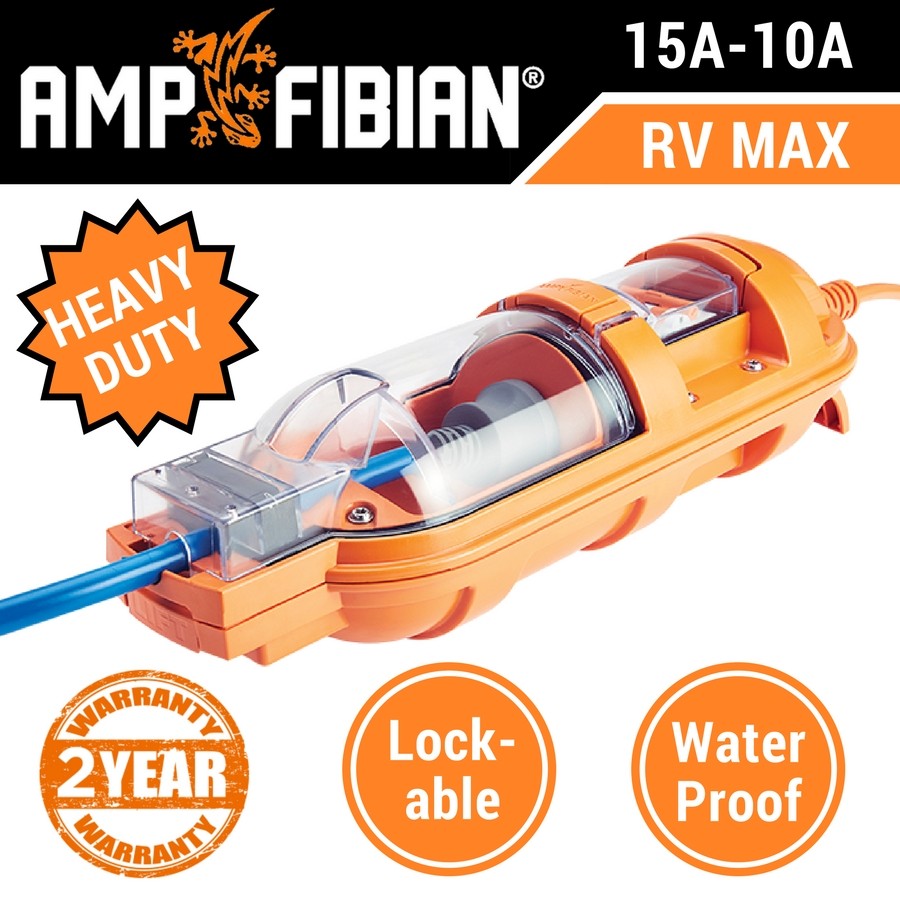

Ampfibian RV-02 MAX

Want to power up your RV for guests at home or pack your food & drinks into a cold fridge before you leave?

The difference between a standard domestic powerpoint and a caravan, RV, welder, compressor, etc. is the amount of power that these devices are designed to operate at. A household powerpoint is designed to operate at up to 10A but a caravan/RV is designed to operate at up to 15A of power. For safety reasons, a 15A caravan lead plug will not fit and connect directly into a standard 10A household powerpoint. This is to avoid overloading the household 10A circuit, which could lead to electrical issues and cause damage or fire.

Ampfibian allows for the safe and legal connection of a 15A load into a standard 10A domestic powerpoint, protecting the domestic power supply from overloading. Ampfibian also includes an earth leakage device (RCD) safety switch which will protect people from potential electric shock through faulty wiring or appliances.

It is simple to use, the first step being that you connect your domestic 10A power supply to your Ampfibian. Next, you connect your Ampfibian to your RV for safe power delivery (a self-locking cleat ensures that the extension cord running from your Ampfibian to your RV stays in a safe place).

The new version Ampfibian RV-02 MAX has a number of improvements including:
  • Suits leads up to 12mm diameter (previous version 9mm)
  • Improved sealing and now weatherproof rated to IP55
  • H-Class rated (Heavy Duty)
  • Impact rated to IK08 (Commercial Duty)
Other Features Include:
  • A 1.8m fly-lead to connect to your 10A domestic outlet
  • Includes life saving RCD + MCD protection
  • Flip-Out Hook for Hanging
  • Socket Lid for independent access with weather resistant seal
  • Cleat secures outlet lid
  • Owned, designed & made in Australia
  • 2 Year Warranty
  • Individually tested & numbered
If you illegally connect a 15A circuit up to a 10A domestic GPO, you not only risk overload and fire in the domestic GPO, but may also void insurance policies.

Protect your Future. Buy now from Campsmart and for a limited time only.



See our full range of Ampfibian products.



SKU 500-04501
Model # 500-04501
Barcode # 9344824000008
Brand Ampfibian
Colour Orange
Shipping Weight 1.1300kg
Shipping Width 0.120m
Shipping Height 0.120m
Shipping Length 0.300m
Shipping Cubic 0.004320000m3
Assembled Length 0.105m
Assembled Height 0.400m
Assembled Width 0.105m
Type New
Location Code SHOW

Write a review


Used this yesterday when the new camper trailer arrived. Simple to use and great to know the RCD function will help protect the expensive camper trailer electrics.


excellent product, the second one i've purchased , feel much safer with it plugged in


Excellent


The ampfibian name badge fell off or broke off due to the tightness of the 2 openings. Have since super glued back on . So if i had to suggest one thing is to perhaps have a little more clearance between both opening compartments. Apart from this the ampfibian works as it should and is as required for my purposes.

All items in our store are from reputable Australian suppliers and are covered by a 12-month  warranty for faults and defects.

Products must be used correctly and for the function they were designed for. Damage by customer misuse is not warrantable.

For full warranty information, visit our warranty page - Click here.

If you would like to submit a warranty claim, please submit a support ticket on our Customer Support Portal.

Click here to visit the portal

Due to the high incidence of online fraud, you will be required to provide proof of any warranty claims and may be required to return the item for assessment.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.



The new version Ampfibian RV-02 MAX has a number of improvements including:
  • Suits leads up to 12mm diameter (previous version 9mm)
  • Improved sealing and now weatherproof rated to IP55
  • H-Class rated (Heavy Duty)
  • Impact rated to IK08 (Commercial Duty)
Other Features Include:
  • A 1.8m fly-lead to connect to your 10A domestic outlet
  • Includes life saving RCD + MCD protection
  • Flip-Out Hook for Hanging
  • Socket Lid for independent access with weather resistant seal
  • Cleat secures outlet lid
  • Owned, designed & made in Australia
  • 2 Year Warranty
  • Individually tested & numbered
