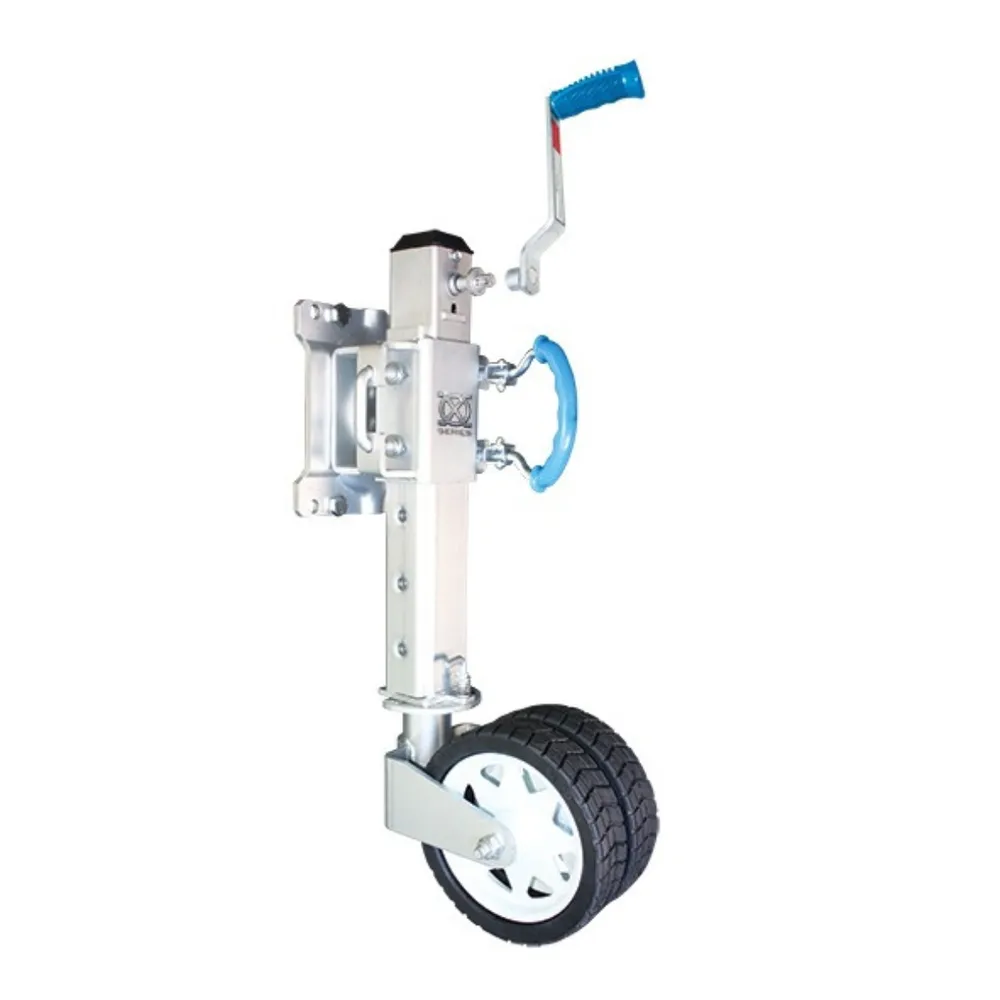

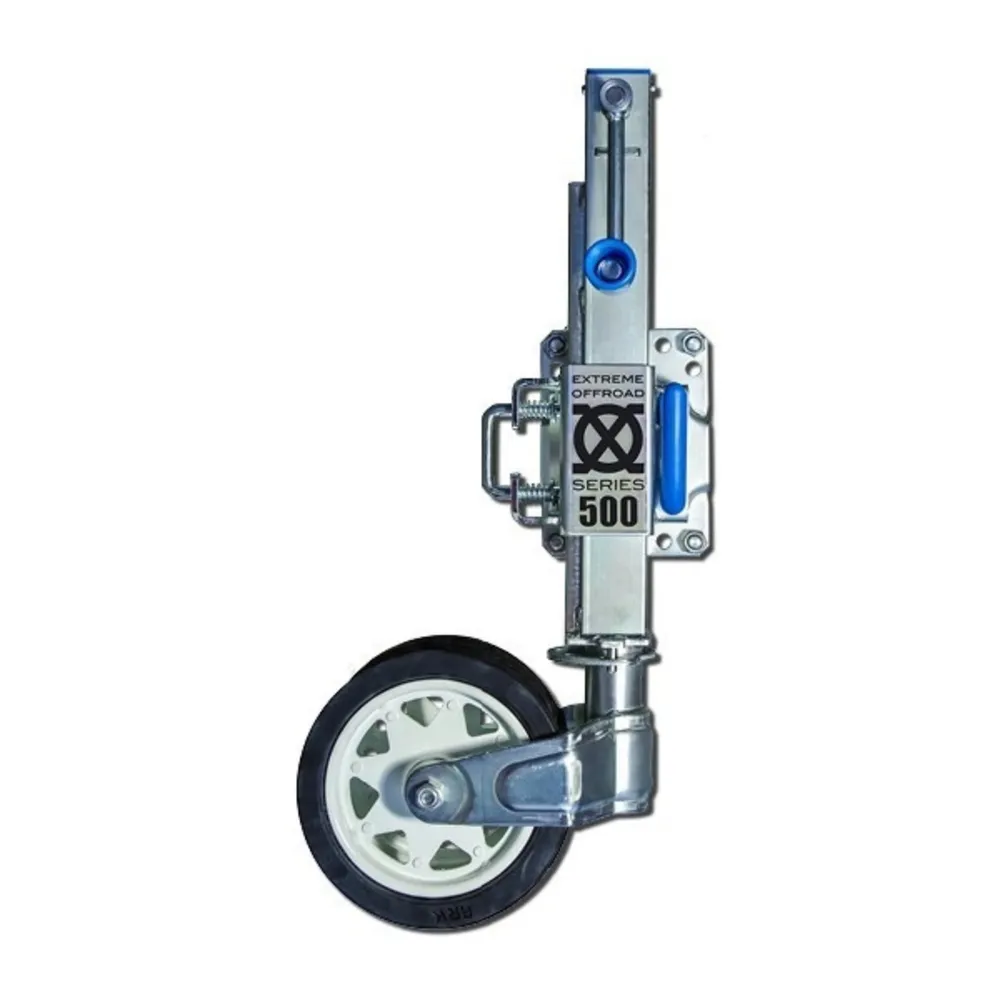

ARK XO Extreme Off Road Jockey Wheel 500

The new Extreme Offroad Series (XO) Jockey Wheel from ARK is arguably the toughest, most advanced Jockey Wheel in Australia today. But not only is it tough, it’s also versatile with multiple height options, a highly maneoverable trailing yoke design and 4 different yoke locking positions.

Magnetic, removable, side-winding handle

  • Easier raising & lowering of trailers/caravans - away from stone guards, toolboxes or jerry can holders
  • Magnetic, removable handle ensures safe stowage and prevents damage in offroad situations

Heavy duty body with 500kg rating

  • Increases load carrying capacity and eliminates the likelihood of “bend” under weight

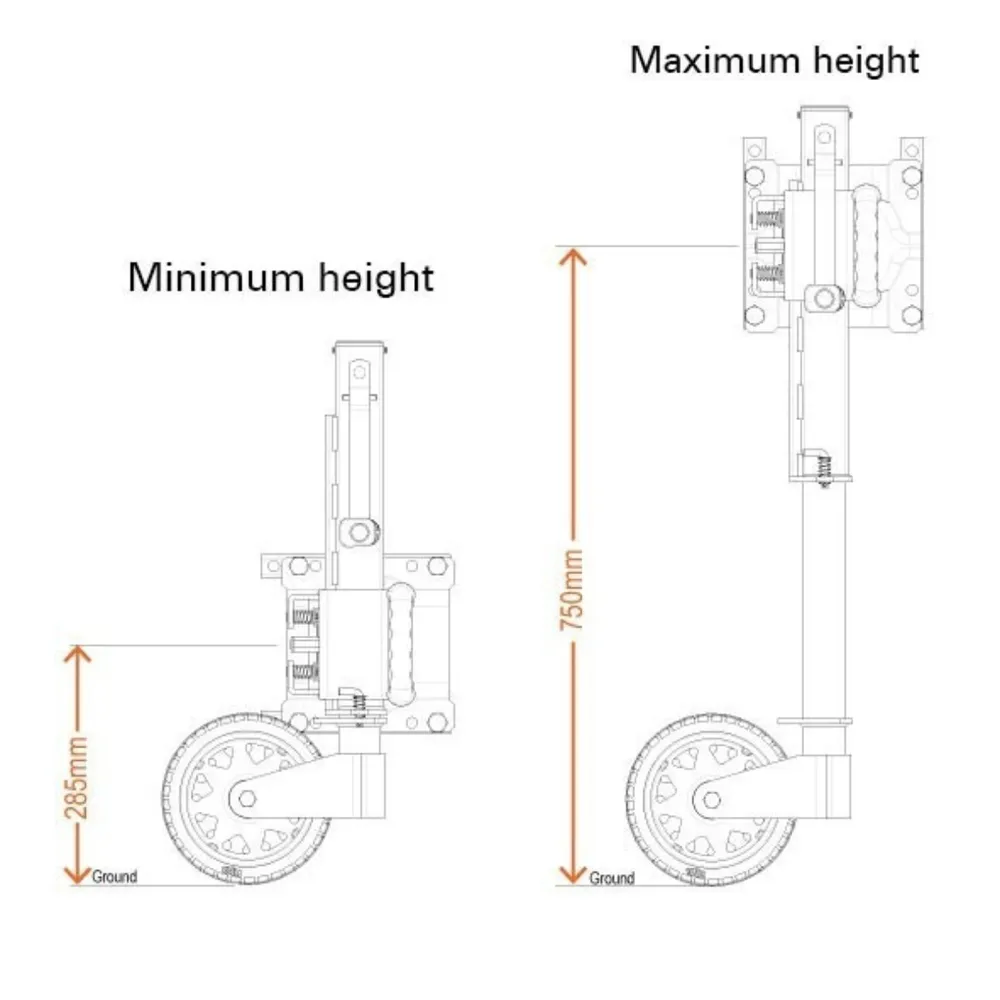

4 x adjustable height positions

  • 250mm height adjustability at each of the 4 positions, whilst maintaining a central swivel point for extra strength

Heavy duty swivel clamp

  • 4 bolt pivot point ensures no more bowing under weight
  • Suitable for 50mm, 75mm, and 100mm drawbars
  • Comes with mounting hardware - no more welding onto drawbars

Easy-pivot trailing yoke design

  • Wheel pivots easily, even under heavy load or on soft ground

Dual wheel with sealed bearings & offroad tread

  • Increases offroad grip and spreads the load

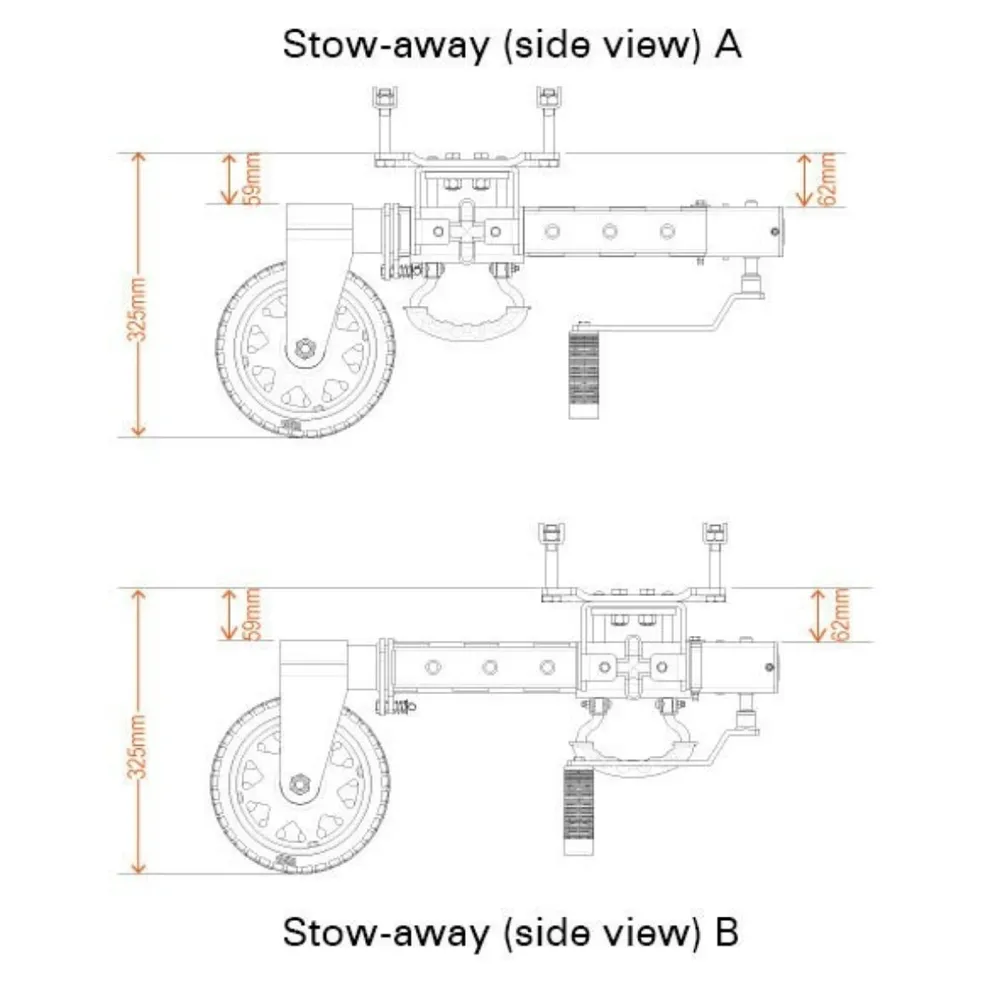

Variable yoke lock

  • Allows you to lock the yoke in 1 of 4 positions when the jockey wheel is stowed, to allow for clearance of stone guards, toolboxes, jerry can holders etc…

Rust resistant finish

  • Salt spray tested for 600 hours

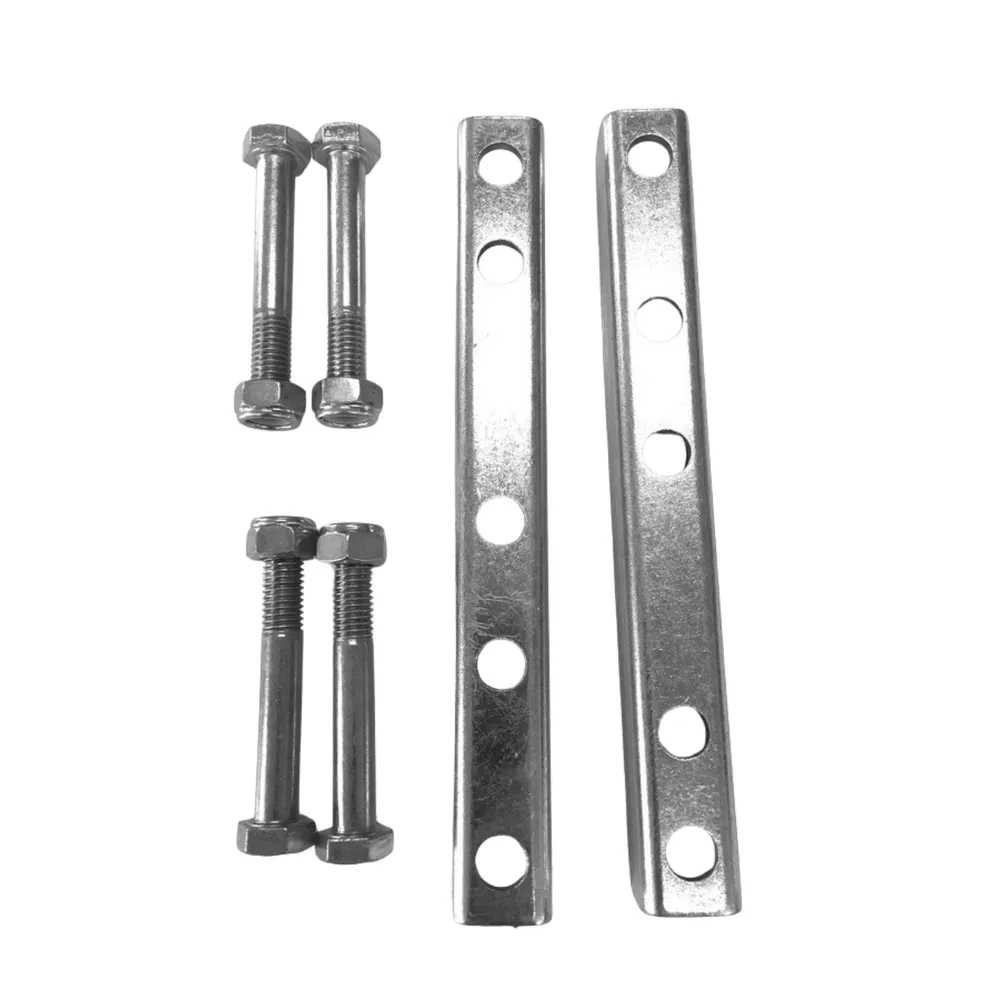

Includes:

  • Includes mounting bolts and brackets

See our full range of Ark products.

SKU ORJW500
Model # ORJW500
Barcode # 9314793012166
Brand Ark
Colour Grey
Shipping Weight 12.0000kg
Shipping Width 0.260m
Shipping Height 0.250m
Shipping Length 0.630m
Shipping Cubic 0.040950000m3
Assembled Length 0.500m
Assembled Height 0.230m
Assembled Width 0.220m
Type New
Location Code 50A2

Write a review


Great Jockey wheel and a great deal at Campsmart. Would highley recommend both the Ark jockey wheel and Campsmart.


Finally a jockey wheel that does the job and this one does it brilliantly. It’s the third one I’ve fitted to my Offroad camping trailer, that has quite generous ground clearance, so being able to adjust the height means I’m not dangerously winding to the end of its travel, and it’s now easy to push the trailer around when unhitched. Good job ARK


The product was excellent in price and quality; and the delivery/service was even better.

All items in our store are from reputable Australian suppliers and are covered by a 12-month  warranty for faults and defects.

Products must be used correctly and for the function they were designed for. Damage by customer misuse is not warrantable.

For full warranty information, visit our warranty page - Click here.

If you would like to submit a warranty claim, please submit a support ticket on our Customer Support Portal.

Click here to visit the portal

Due to the high incidence of online fraud, you will be required to provide proof of any warranty claims and may be required to return the item for assessment.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.



The new Extreme Offroad Series (XO) Jockey Wheel from ARK is arguably the toughest, most advanced Jockey Wheel in Australia today. But not only is it tough, it’s also versatile with multiple height options, a highly maneoverable trailing yoke design and 4 different yoke locking positions.

ORJW500

Includes:

  • Includes mounting bolts and brackets
