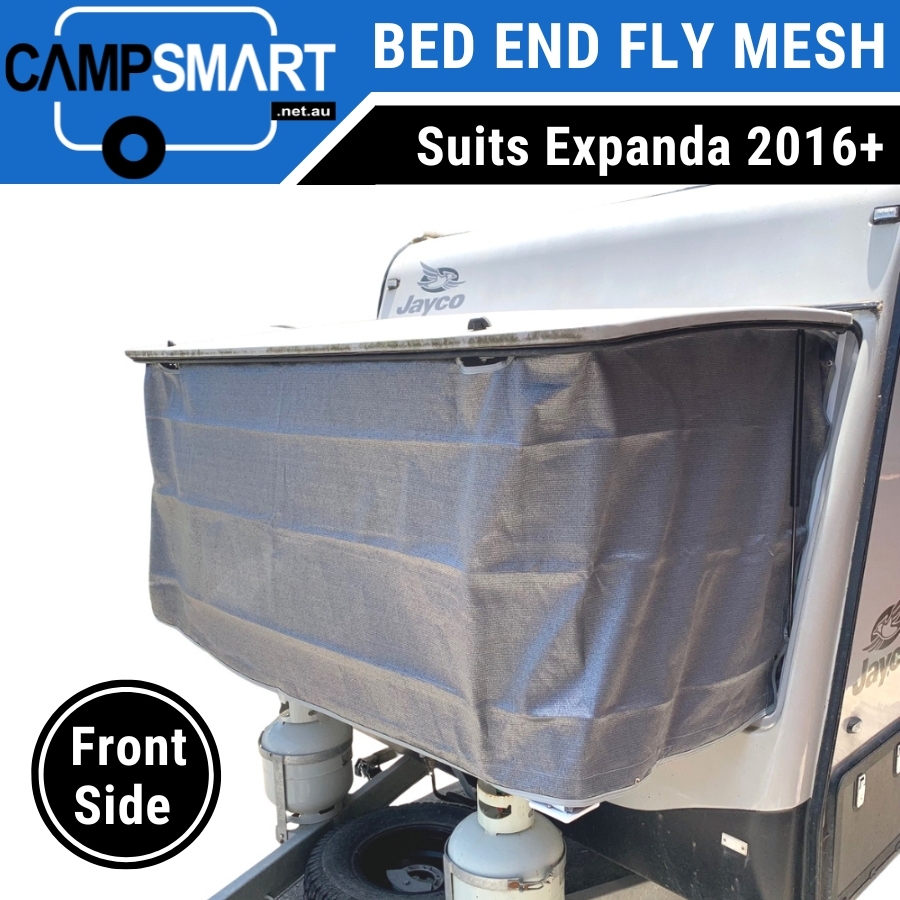

Bed End Fly Mesh for Jayco Expanda 2016+ (Front End)

Note: This sale is for the Front End Bed End Mesh only. If you require front and back see our listing which includes both.

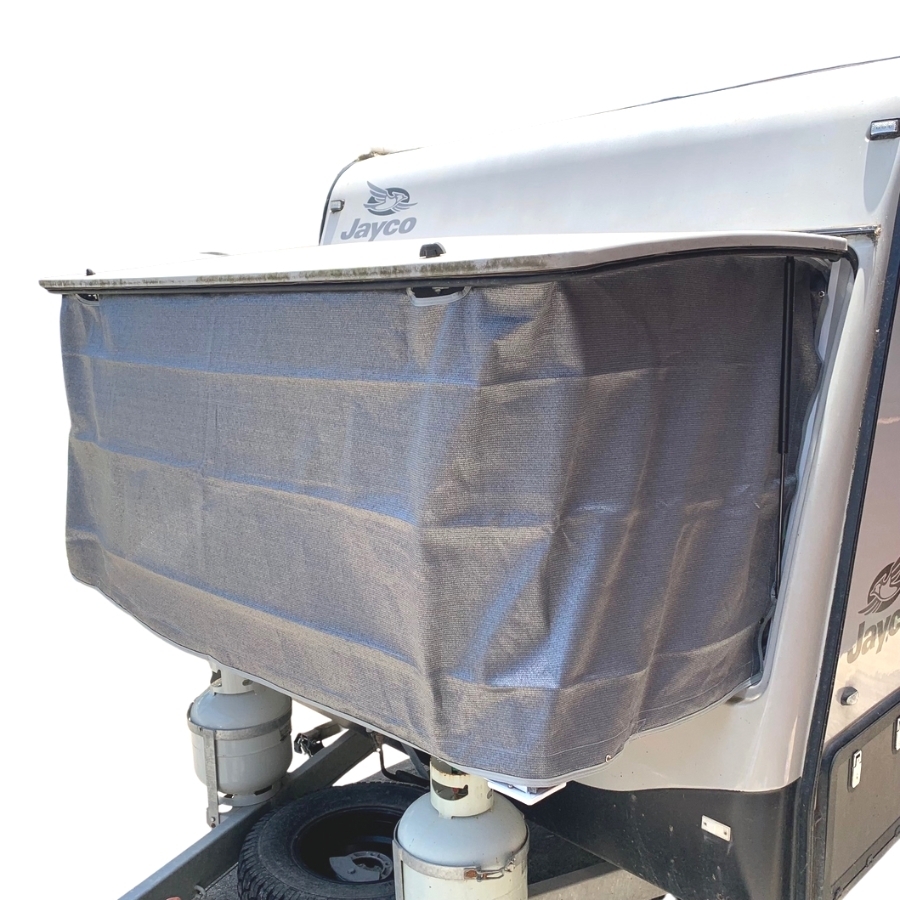

Keep your bed end cooler & add protection from the weather with this Front Side Bed End Fly Mesh Cover. Designed for the Jayco range of Expanda's, Base Stations & Work n Plays from 2016+ this mesh bed end fly is made from material as Camp Smart's popular range of XD Privacy Screens. The mesh provides a 95% shade rating while also being water repellant and so offers protection from the sun & rain while being breathable at the same time to help keep your bed ends cooler on hot days. During the daytime the shade cloth allows some visibility looking out from inside the Expanda, while providing privacy from anyone trying to look in from the outside.

The cover requires sail track (not included) to be installed under the lid around the bottom edges of the hard lid. If not pre-installed we do have plastic sail track sets available separately. The cover does include a set of press studs to help attach the mesh back to the Expanda on the sides. It also includes 2 cut-out sections around the locking mechanism, allowing it to be folded up and left on when packing up.

Important Installation Details:

  • Please note installation requires sail track to be installed on the hard lid. The sail track is not included in this kit. Approx. 4m of sail track is required per side.
  • For hard lid Expandas from 2008-2014. Please note the fit is not exact & installation may require modifications. Also note the rubber seal on the van lid may need to be taken off and then replaced or re-installed.
  • The 2015 Pop Top Expandas have a single-skin & installation on these is difficult.
  • Contact your local trimmer or caravan repairer for a quote on installation.

SKU CSBF401
Model # CSBF401
Barcode # Does not apply
Brand Campsmart
Fabric Material Shade Mesh
Shipping Weight 1.4500kg
Shipping Width 0.360m
Shipping Height 0.100m
Shipping Length 0.350m
Shipping Cubic 0.012600000m3
Type New
Location Code 79C2

Help other users shop smarter by writing reviews for products you have purchased.

Write a review

All items in our store are from reputable Australian suppliers and are covered by a 12-month  warranty for faults and defects.

Products must be used correctly and for the function they were designed for. Damage by customer misuse is not warrantable.

For full warranty information, visit our warranty page - Click here.

If you would like to submit a warranty claim, please submit a support ticket on our Customer Support Portal.

Click here to visit the portal

Due to the high incidence of online fraud, you will be required to provide proof of any warranty claims and may be required to return the item for assessment.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.



Key Features:

  • Designed for the 2016+ Jayco Expanda & Base Station models
  • Made from 95% shade cloth.
  • 6mm keder rope spline stitched into the top edge allowing it to be installed in sail track (Note sail track is not included).
  • Hemmed and double stitched bottom edges.
  • Includes bottom corner straps with buckles help keep secured.
  • 2 integrated cut-out sections where the locking mechanism is located, enabling the cover to left on when packing away.
  • Attaches to the hard roof lid of your bed end, providing sun & weather protection
  • Includes 4 press studs for attaching the sides. Another 2 are included to press stud the cover under the lid when packing away.
