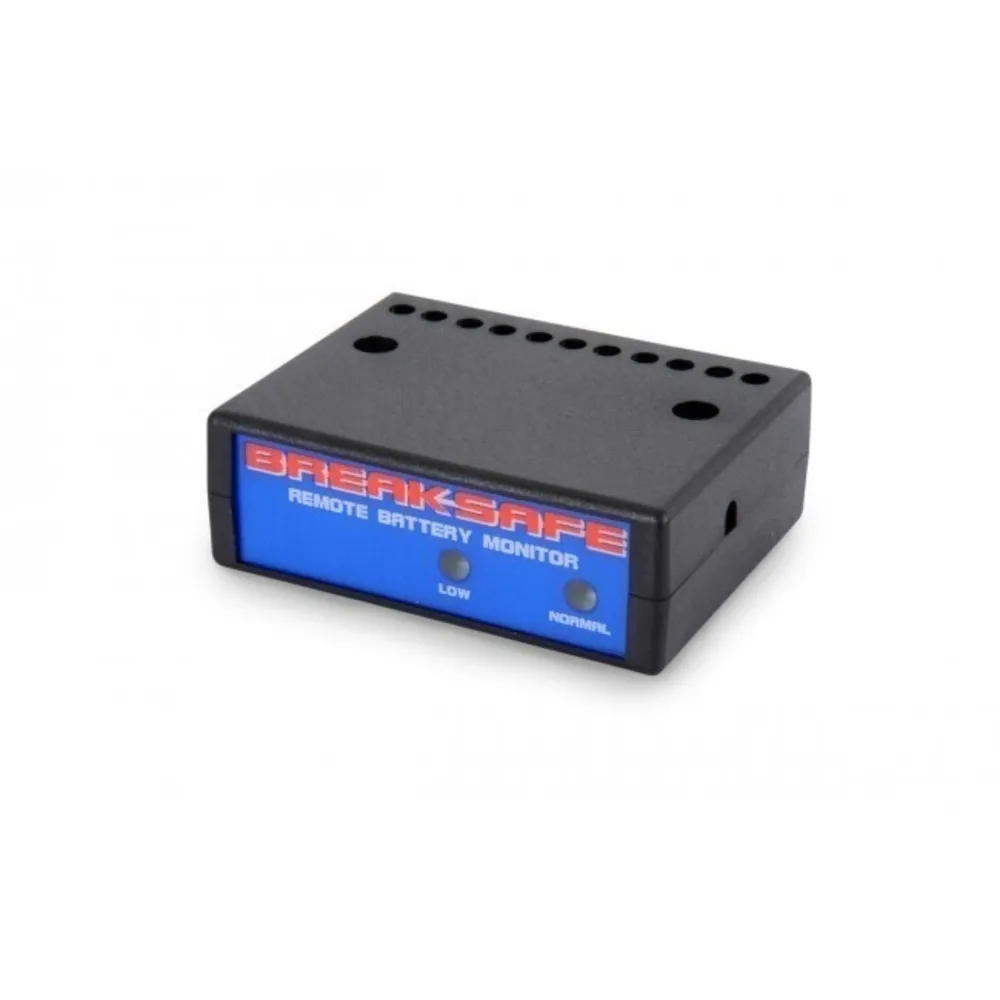

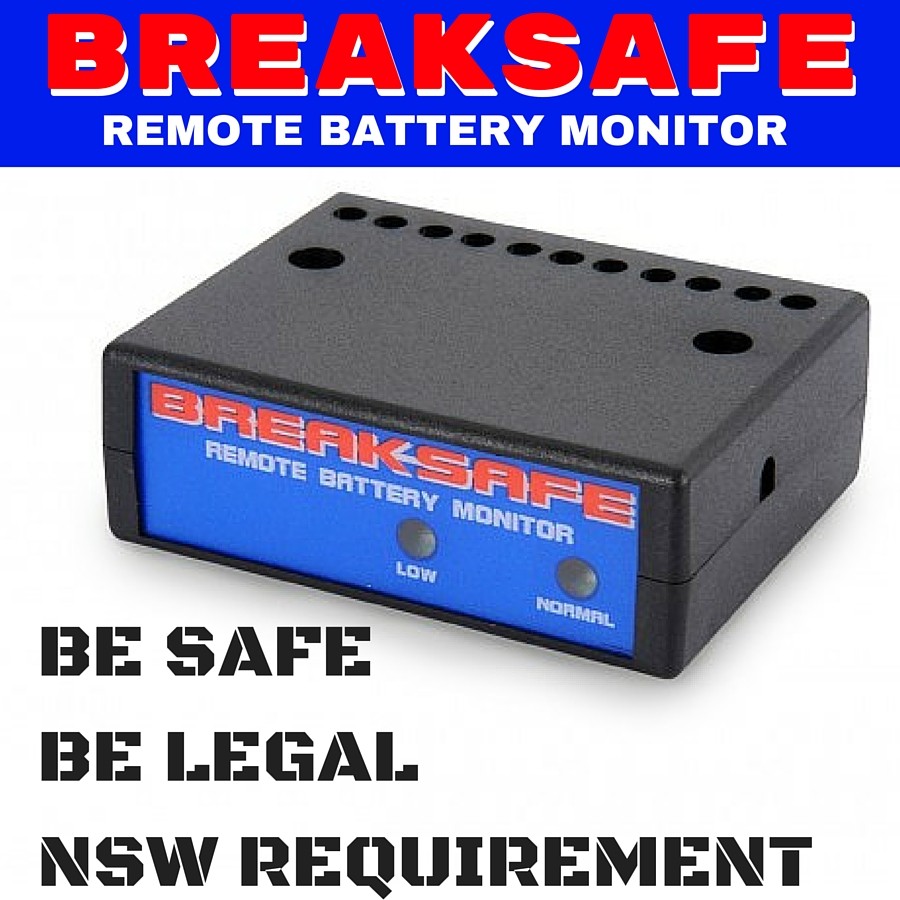

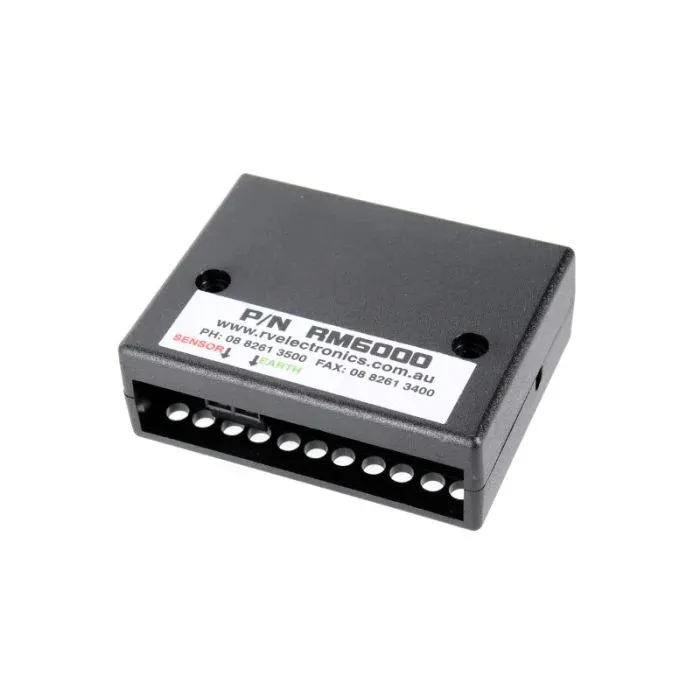

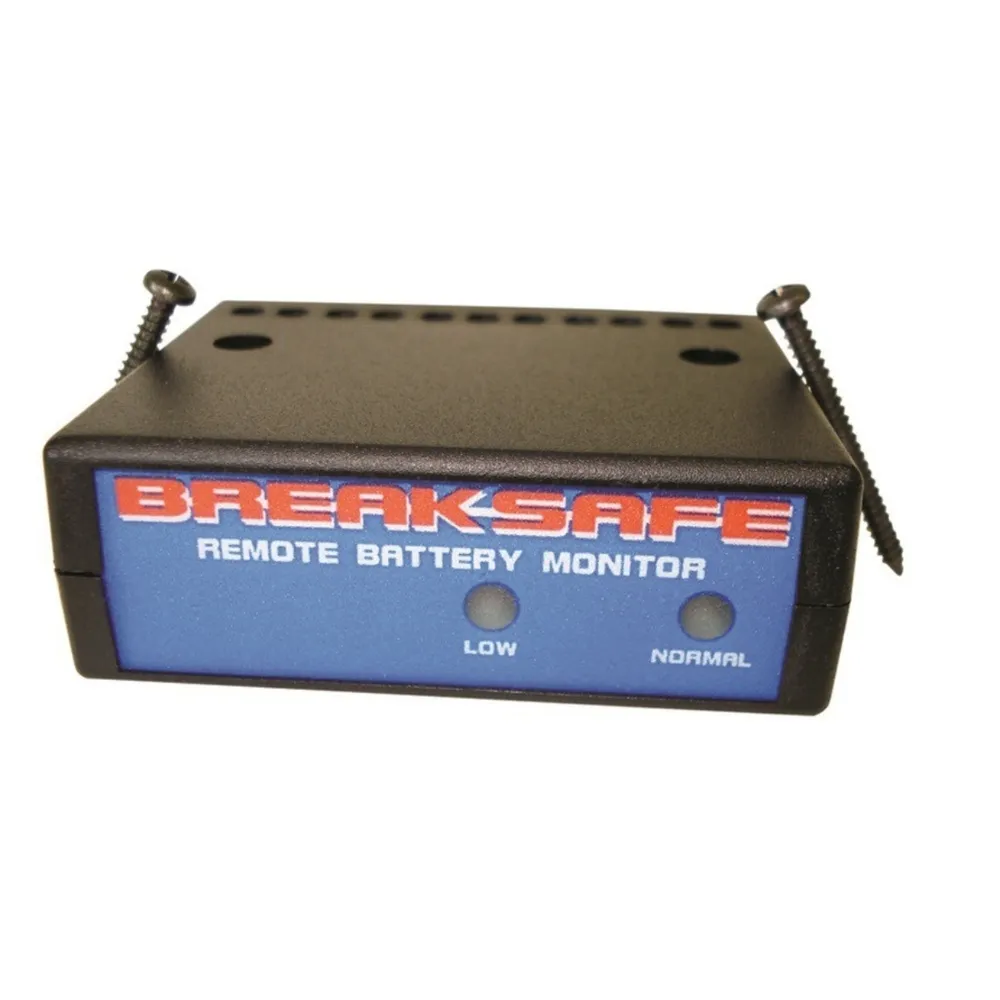

Break Safe Remote Battery Monitor (RM6000)

Stay within the law and protect the safety of your family when towing by installing a Breaksafe Remote Battery Monitor.

The BREAKSAFE RM6000 Remote Battery Monitor is fitted inside the tow vehicle and operates each time the brake pedal is pressed. The additional circuitry in the BREAKSAFE 6000 disconnects the Breaksafe battery from the charge circuit and then connects the battery to the Remote Monitor.

A small electronic load inside the Remote Monitor then pulls the battery terminal voltage down. The micro-processor inside the Remote Monitor measures what the voltage drops to over a preset time to determine the charge state of the Breaksafe battery.

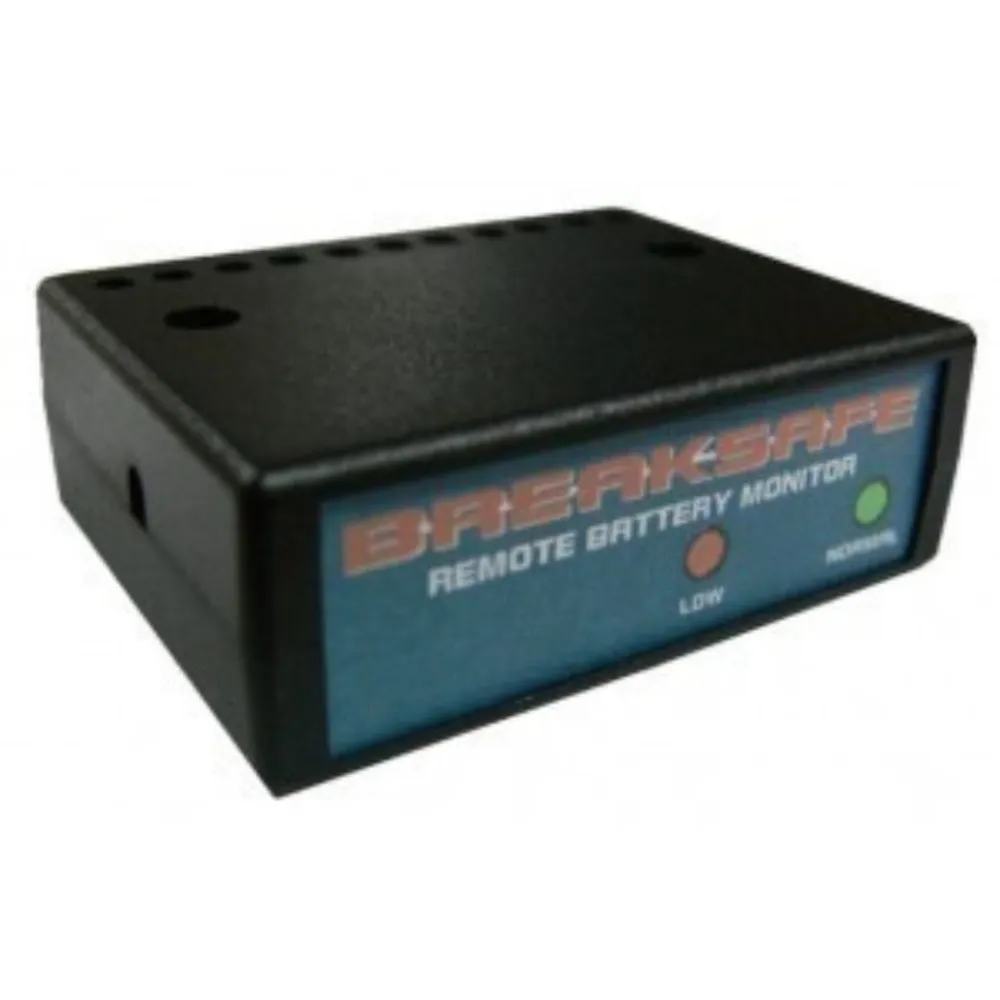

Should the Breaksafe battery be fully charged, a green light will illuminate on the front panel of the RM6000 Remote Monitor. If the battery is below the safe level, a red light will flash and a buzzer will sound for about 10 seconds.

The RM6000 Remote Battery Monitor can only be used in conjunction with a Breaksafe 5000 or 6000 breakaway kit. It will not work correctly when connected to any other breakaway system.

Dimensions:

  • W64mm x D50mm x H22mm

Statutory Requirements:

A remote battery monitor is required by the NSW Roads & Maritime Services to be fitted to certain tow vehicles for Registration in NSW. For more information visit the NSW Roads & Maritime Services site.



See our full range of Breaksafe products.

SKU 39363
Model # 39363
Barcode # Does not apply
Brand Break Safe
Colour Black
Shipping Weight 0.1500kg
Shipping Width 0.100m
Shipping Height 0.030m
Shipping Length 0.170m
Shipping Cubic 0.000510000m3
Assembled Length 0.050m
Assembled Height 0.022m
Assembled Width 0.064m
Type New
Location Code SHOW

Write a review


Item came as described undamaged and on time very happy

All items in our store are from reputable Australian suppliers and are covered by a 12-month  warranty for faults and defects.

Products must be used correctly and for the function they were designed for. Damage by customer misuse is not warrantable.

For full warranty information, visit our warranty page - Click here.

If you would like to submit a warranty claim, please submit a support ticket on our Customer Support Portal.

Click here to visit the portal

Due to the high incidence of online fraud, you will be required to provide proof of any warranty claims and may be required to return the item for assessment.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.



The RM6000 Remote Battery Monitor can only be used in conjunction with a Breaksafe 5000 or 6000 breakaway kit. It will not work correctly when connected to any other breakaway system.

Dimensions:

  • W64mm x D50mm x H22mm
