Coast Slight Curve (50mm) Awning Rafter

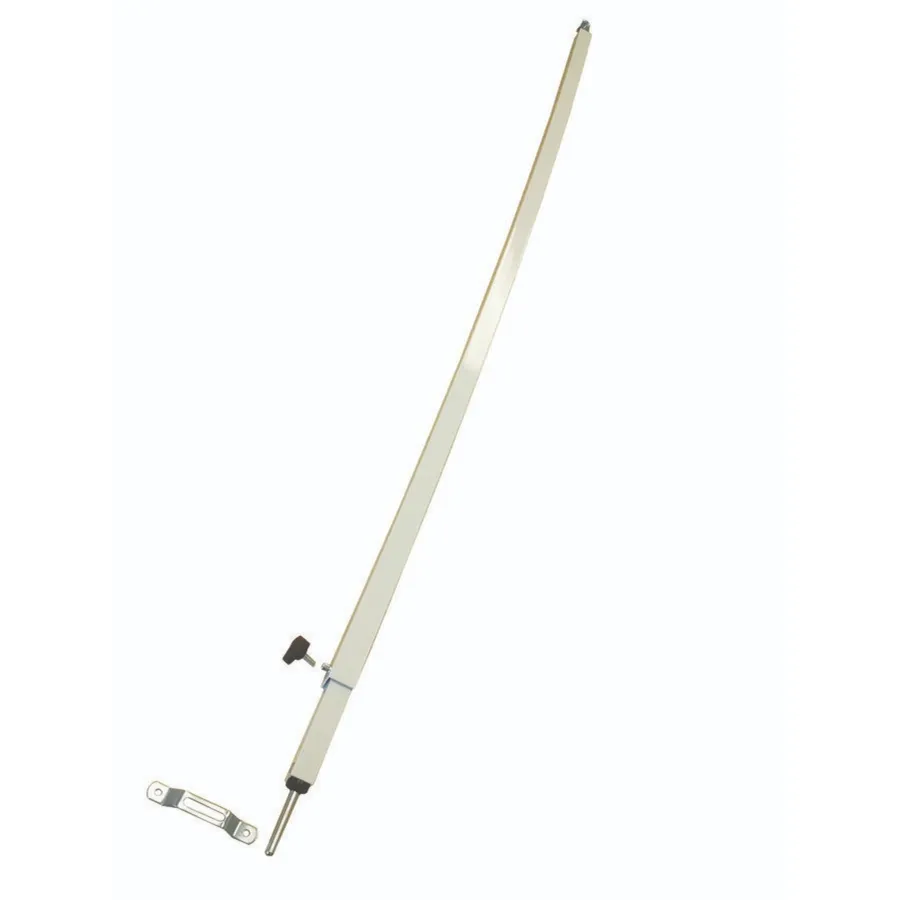

With a slight curve, the Coast awning roof rafter is designed to keep your awning fabric taught, reduce flapping and avoid water pooling. The telescoping style rafter extends up to 243cm and is suitable for Roll Out Awnings including Carefree, Dometic & A&E.

The rafters slight curve is just enough to keep tension on the awning fabric for most awnings. They are simple to set up and if used close to the end of an awning, can be utilised to hang Caravan Sunscreen End Walls.

Features & Specifications:

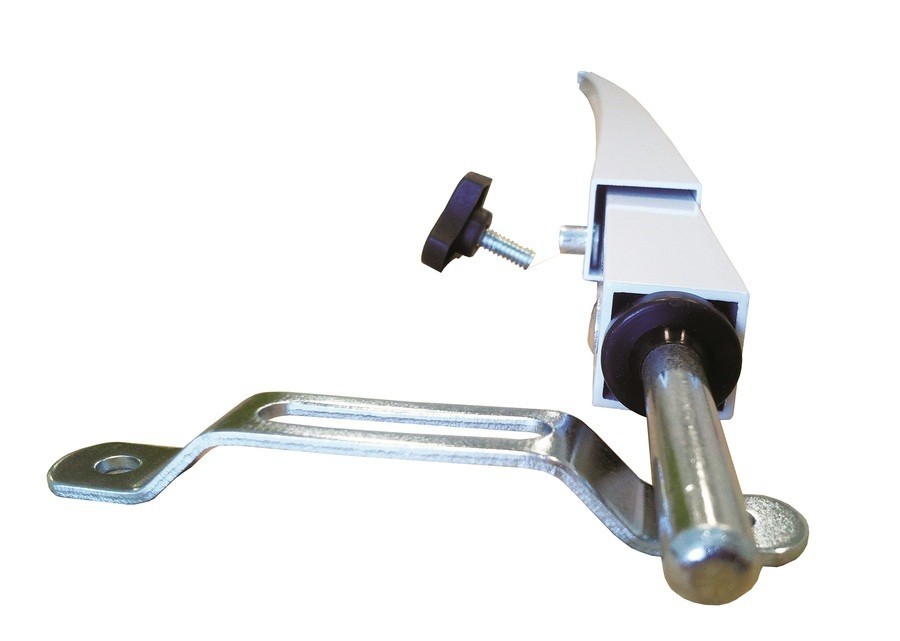

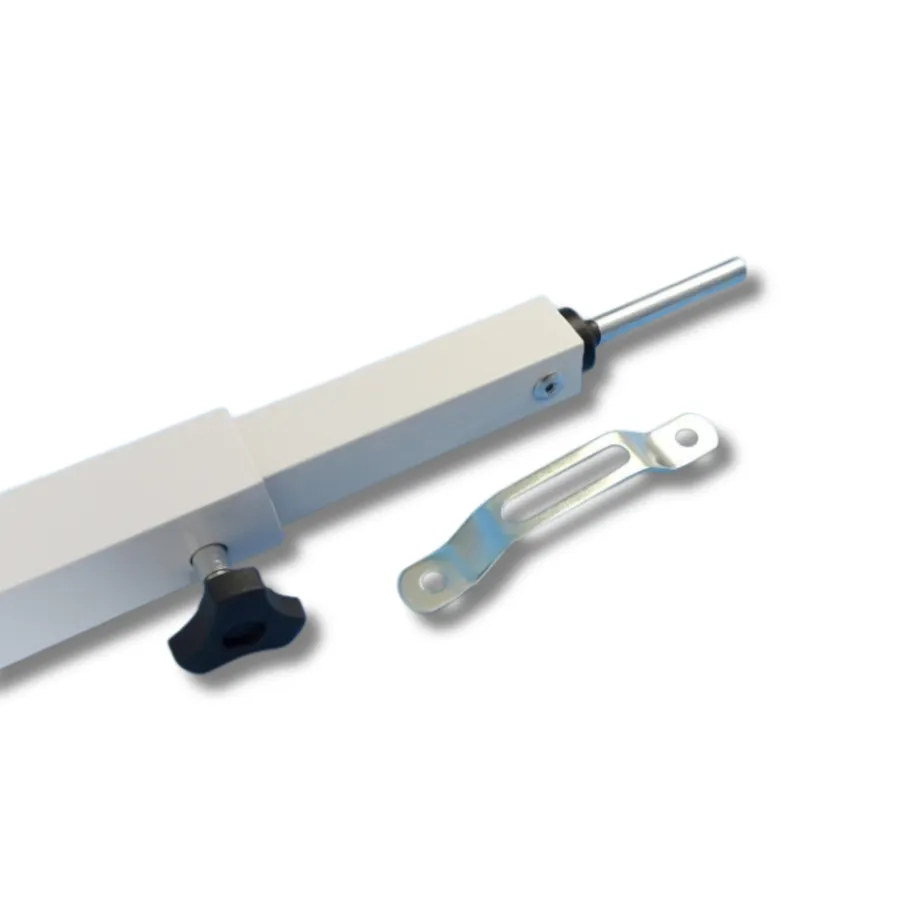

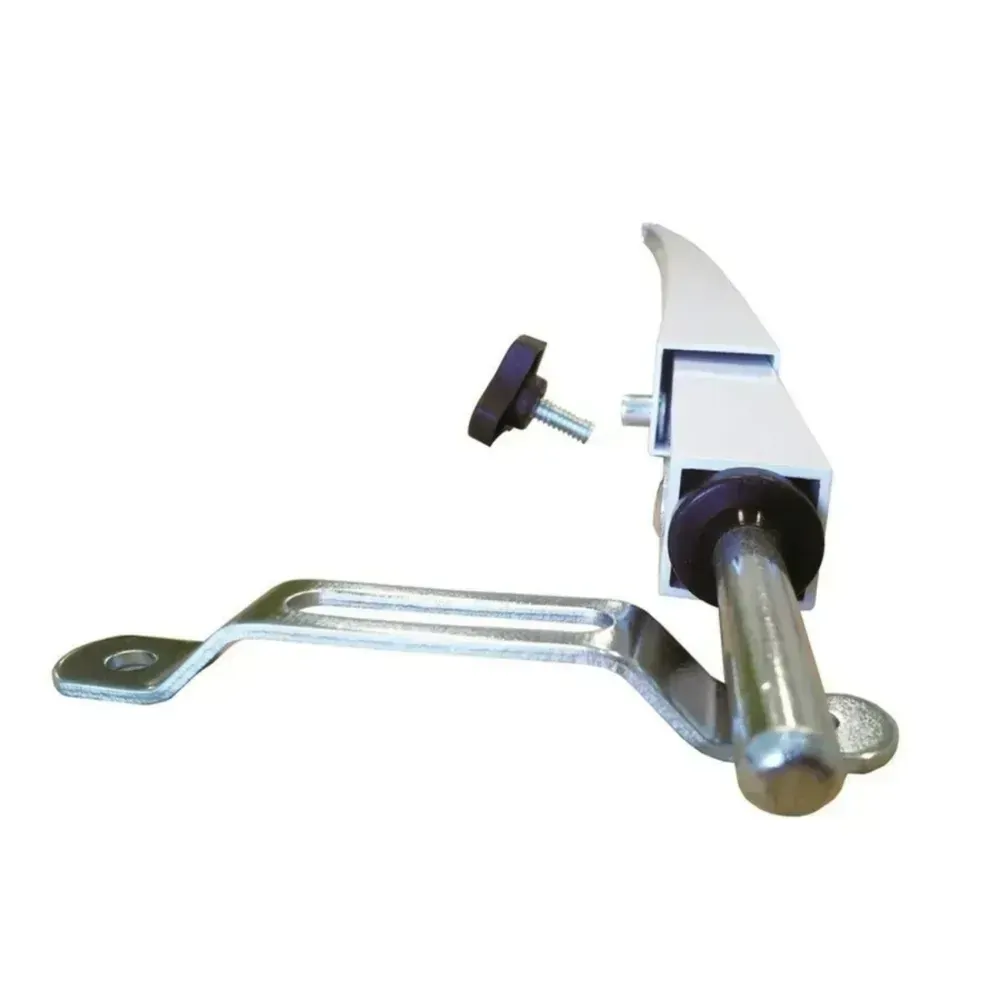

  • Includes mounting bracket (screws not included);
  • Extends from 1.5m to 2.5m;
  • Curve is 50mm when fully extended;
  • Powdercoated white aluminium with a square profile;
  • Larger awnings would benefit from 2 or more rafters (We'd suggest 3 for awnings larger than 17').

Installation Details:

  1. Attach the bracket to the RV with 2 screws into the desired position;
  2. Extend the awning out to the fully opened position making sure the key way is facing down;
  3. Drill a hole in the awning tube at an appropriate height;
  4. File / de-burr the hole in the barrel to ensure no damage to the fabric occurs when closing.

Our Notes:

  • This rafter is not suitable for Box Awnings such as Fiamma. Please see our separately listed Fiamma Awning Rafters.
  • If you're after a larger curve please see our "Acute" curved rafters which have an approx. 100mm curve. These may better suit older awnings who's fabric has loosened over time.

See our full range of Coast products.

SKU 200-08270
Model # 200-08270
Barcode # Does not apply
Brand Coast to Coast RV
Colour Silver
Size Slight Curve
Style Roll Out Awning
Shipping Weight 1.1000kg
Shipping Width 0.060m
Shipping Height 0.050m
Shipping Length 1.600m
Shipping Cubic 0.004800000m3
Assembled Length 1.500m
Assembled Height 0.005m
Assembled Width 0.005m
Type New
Location Code 38B2

Write a review


The rafters made a big problem become a small after installing them on the awning before the last rain event, we have no water collecting in puddles with good runoff. Would highly recommend for all awnings.


We have fitted the rafter. Would be good if supplied with instructions and fitting screws. This would make it better. We had no problems as we had just fitted side deflappers.


Highly recommend fast service and excellent product


Received quickly from interstate.Perfect condition

All items in our store are from reputable Australian suppliers and are covered by a 12-month  warranty for faults and defects.

Products must be used correctly and for the function they were designed for. Damage by customer misuse is not warrantable.

For full warranty information, visit our warranty page - Click here.

If you would like to submit a warranty claim, please submit a support ticket on our Customer Support Portal.

Click here to visit the portal

Due to the high incidence of online fraud, you will be required to provide proof of any warranty claims and may be required to return the item for assessment.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.



Features & Specifications:

  • Includes mounting bracket (screws not included);
  • Extends from 1.5m to 2.5m;
  • Curve is 50mm when fully extended;
  • Powdercoated white aluminium with a square profile;
  • Larger awnings would benefit from 2 or more rafters (We'd suggest 3 for awnings larger than 17').
