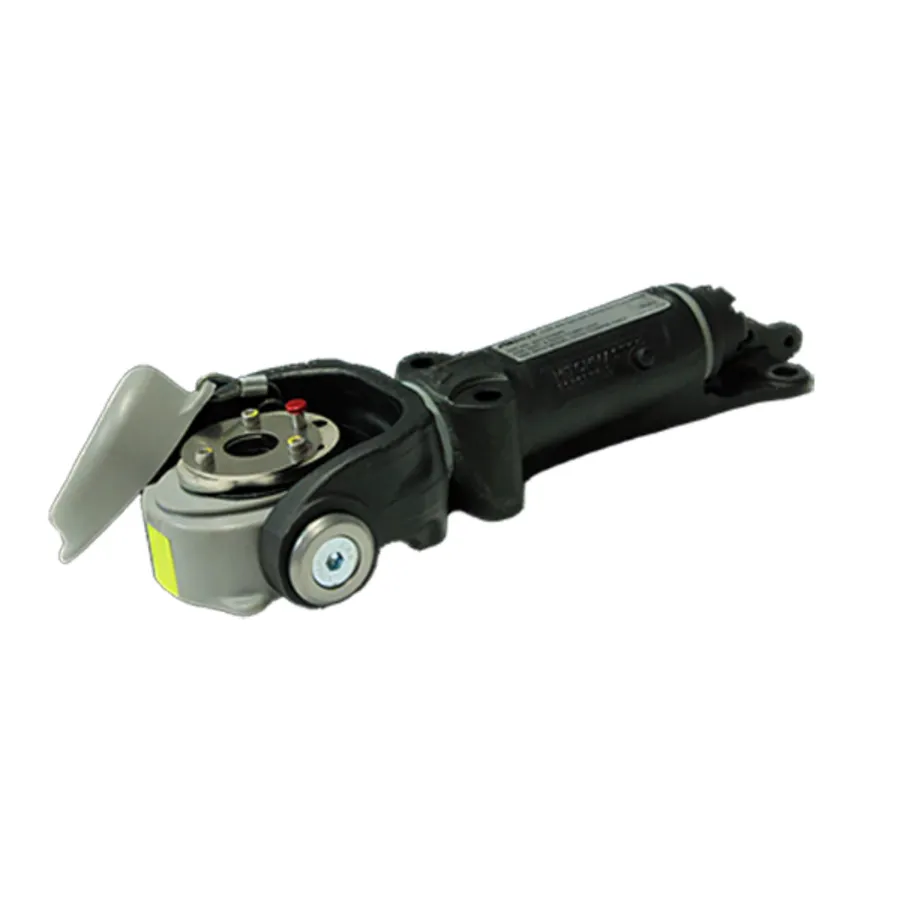

DO35 - V3Plus (No Handbrake)

The Adventure Continues with the DO35 V3Plus, taking you further than other couplings! While originally designed for off-road use the DO35 has quickly become an industry favourite for both on and off-road vans.

Designed and tested to perform under Australian Conditions, this coupling incorporates a double automatic tow pin locking mechanism, massive articulation in all directions simultaneously and the patented self-aligning pin.

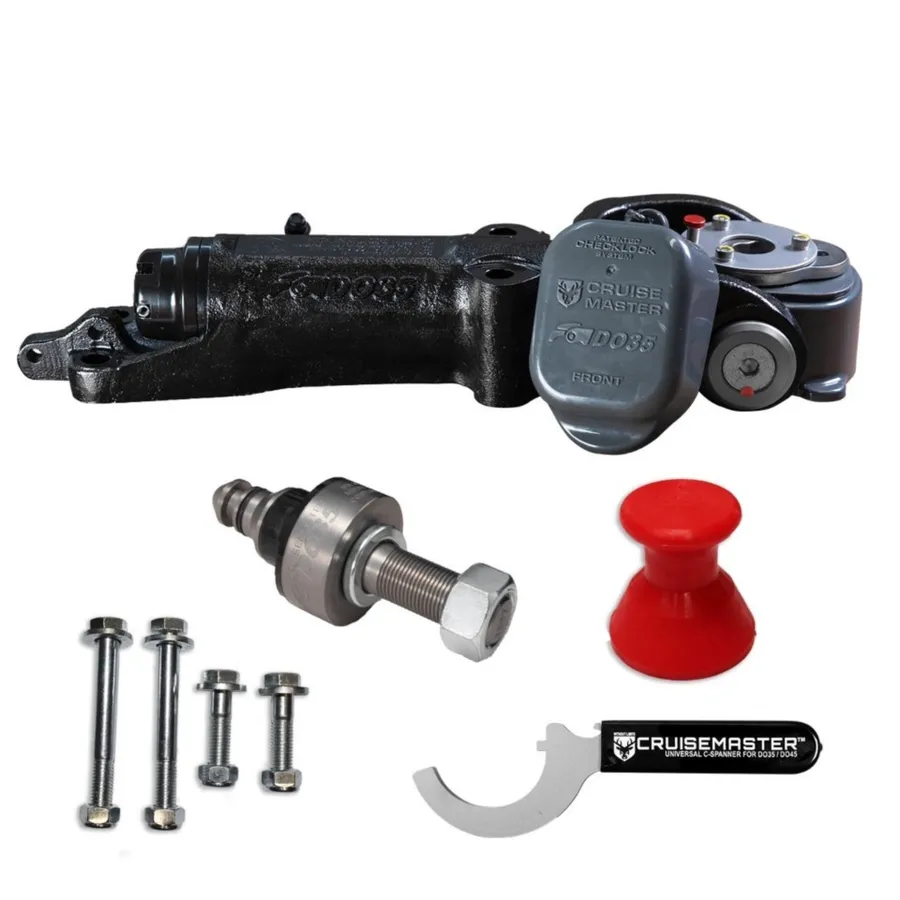

Includes:

  • DO35 V3Plus (No Handbrake)

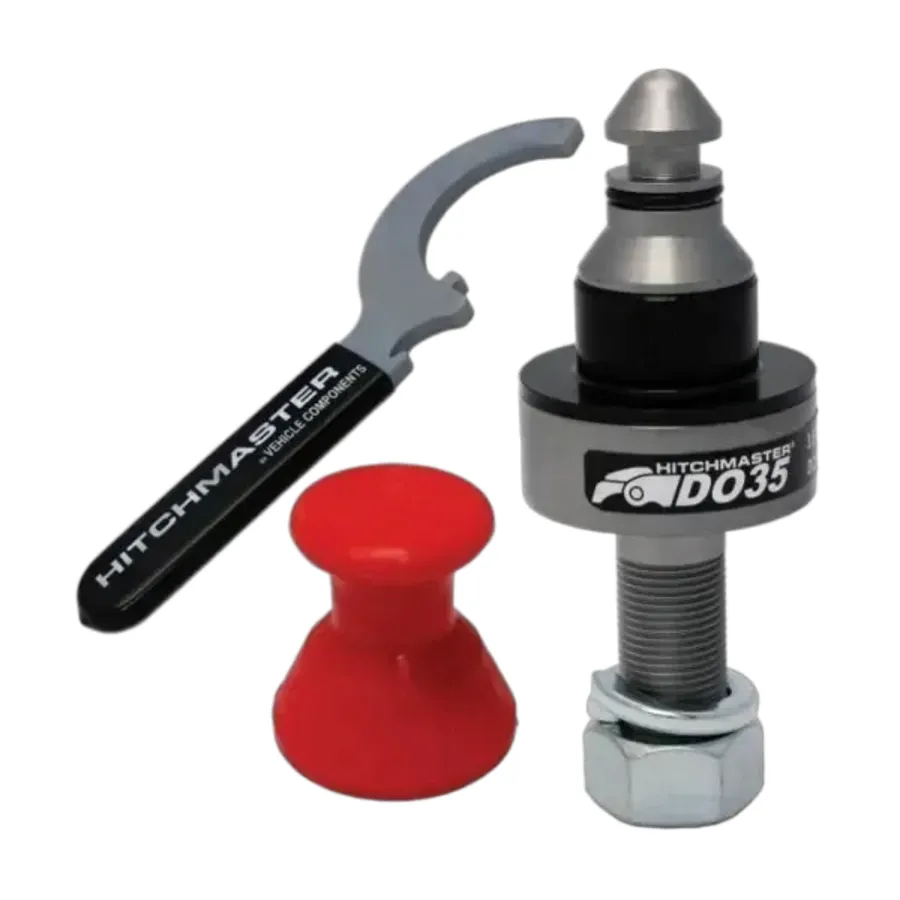

  • Tow Pin 7/8" Shaft
  • Tow Pin Cover
  • Universal C-Spanner

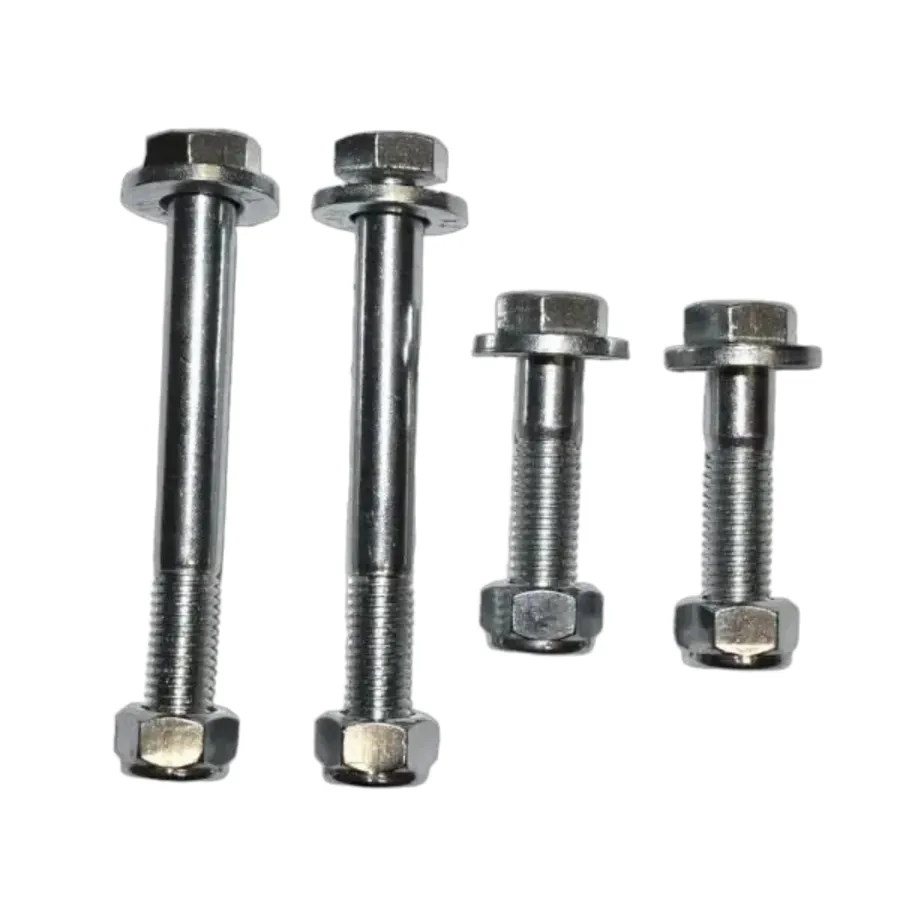

  • Fitment Bolts
  • User Guide

V3PLUS Features:

  • Patented “Checklock” Gen.2 Dust Cap & Bumper for an easy, secure seal
  • Improved Bumper molding gives the from reflector strip improved staying power
  • Rear support webbing allows for mounting upside down on the underside of the drawbar
  • 2 Stage ADR compliant locking mechanism
  • Low profile Bumper & Cap for impressive clearance
  • High articulation for improved handling off-road and on unmaintained roads
  • Exceeds ADR 62/01 and 62/02 strength requirements
  • 7/8” shaft to fit most std. tow tongues

Specifications:

  • Model: 18D-DO35-V3PLUS-R
  • Brand: Cruisemaster
  • Articulation: 360 degrees axial, minimum 70 degrees other axes
  • Locking: Fully ADR 62/02 compliant including automatic secondary loc

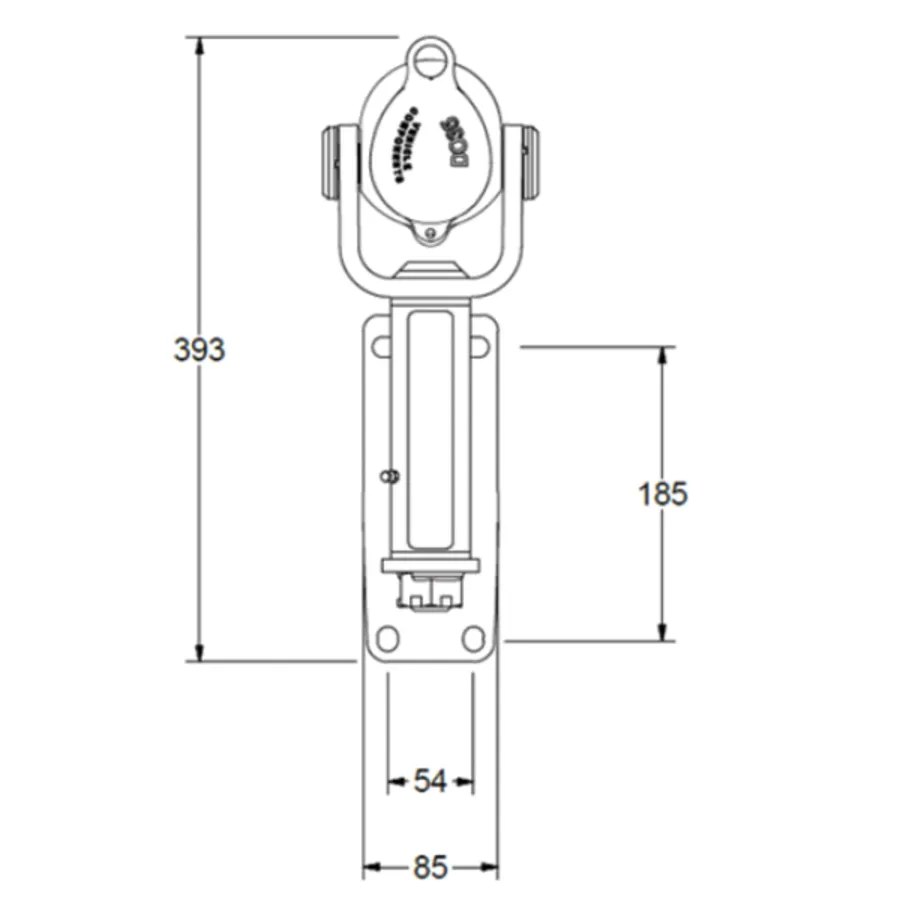

  • Bolt Pattern: 4 bolts at 185mm x 54mm
  • Rating: 3.5 Tonne
  • Action: Drop-On
  • Maintenance: Fully Greasable



SKU 18D-DO35-V3PLUS-R
Model # 18D-DO35-V3PLUS-R
Barcode # Does not apply
Brand Cruisemaster
Colour Black
Type coupling
Material Various
Shipping Weight 10.5000kg
Shipping Width 0.170m
Shipping Height 0.120m
Shipping Length 0.400m
Shipping Cubic 0.008160000m3
Type New
Location Code 2K
