DO35 - V3PLUS (WITH HANDBRAKE)

The Adventure Continues with the DO35 V3Plus, taking you further than other couplings! While originally designed for off-road use the DO35 has quickly become an industry favourite for both on and off-road vans.

Designed and tested to perform under Australian Conditions, this coupling incorporates a double automatic tow pin locking mechanism, massive articulation in all directions simultaneously and the patented self-aligning pin.

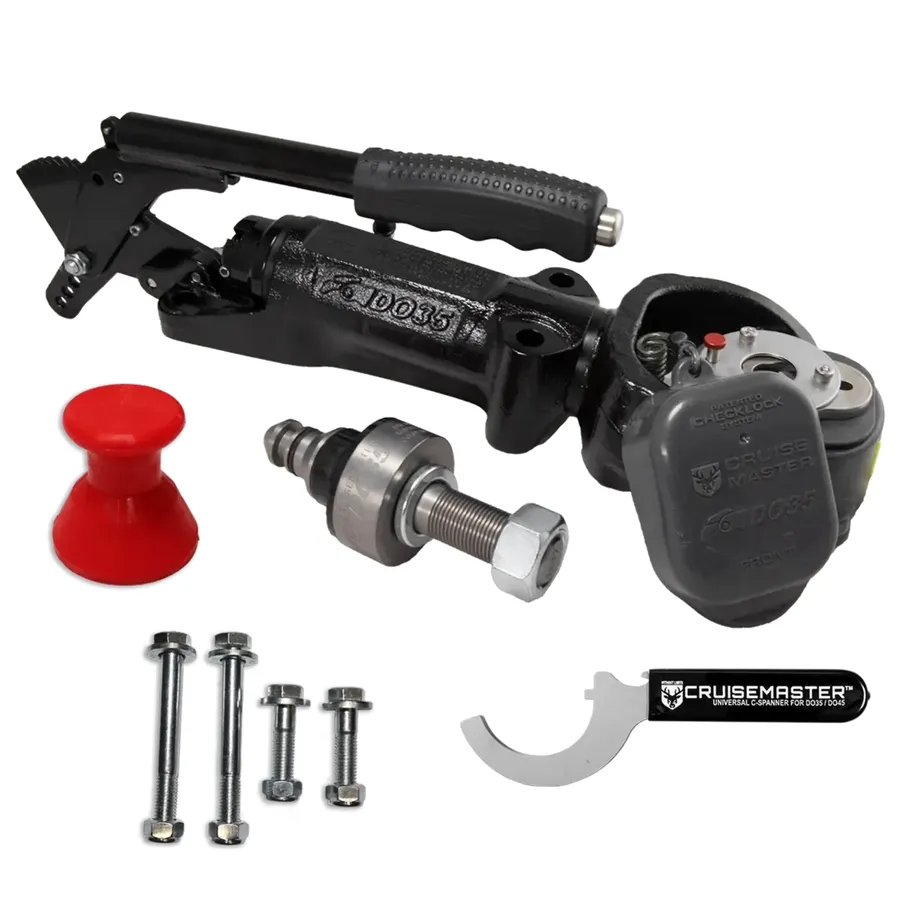

Includes:

  • DO35 V3Plus (With Handbrake)

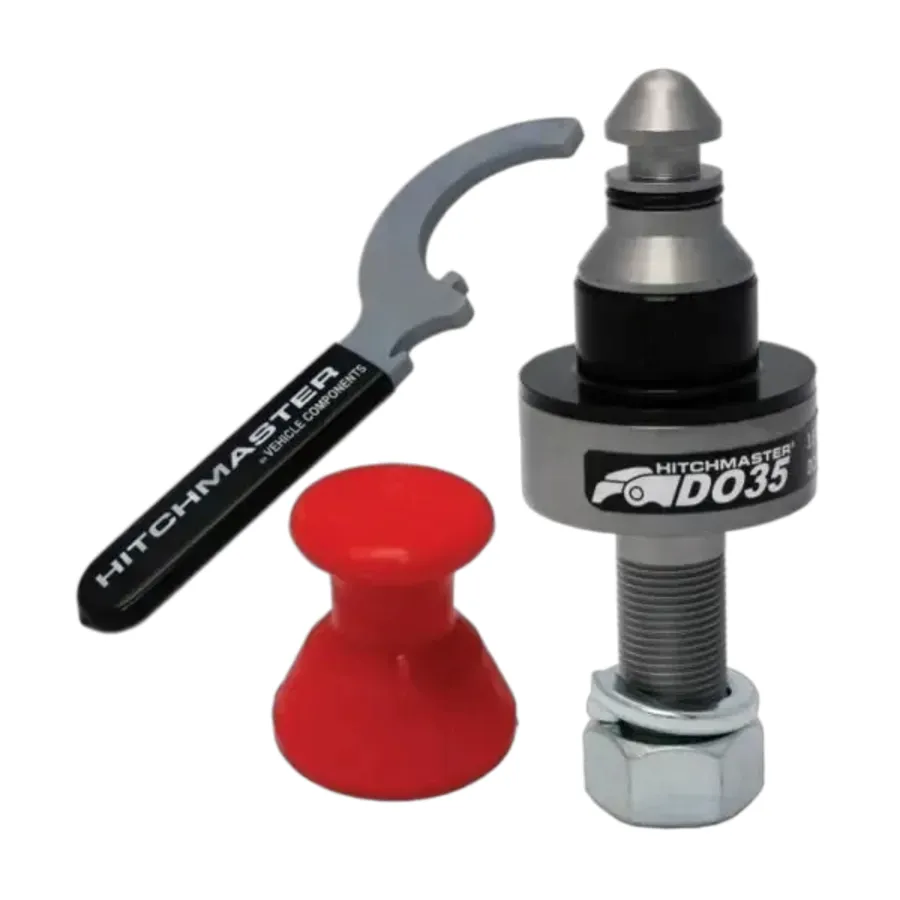

  • Tow Pin 7/8 Inch Shaft
  • Tow Pin Cover
  • Universal C-Spanner

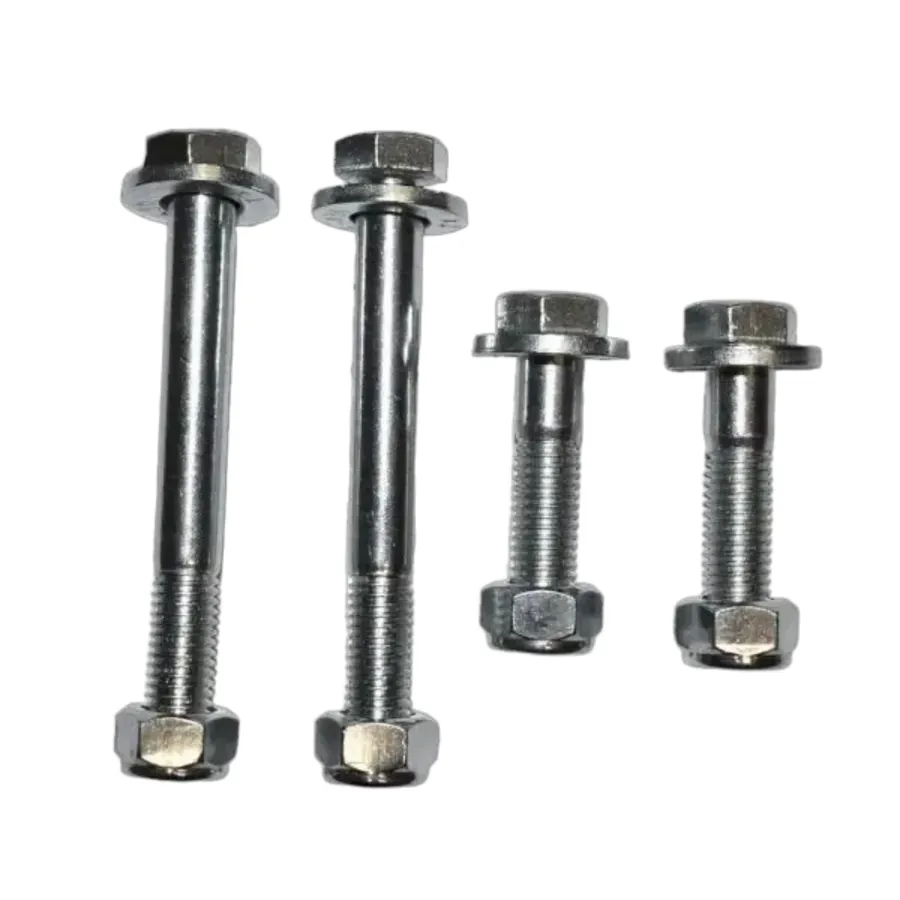

  • Fitment Bolts
  • User Guide

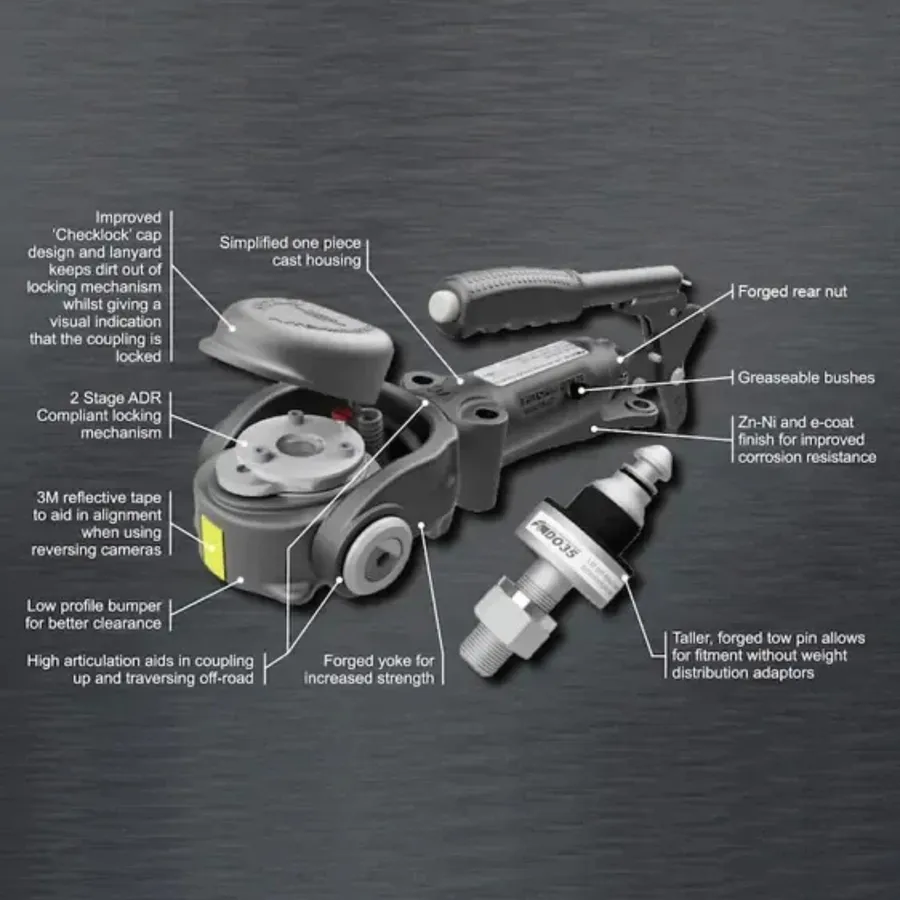

V3PLUS Features:

  • Patented “Checklock” Gen.2 Dust Cap & Bumper for an easy, secure seal
  • Improved Bumper molding gives the from reflector strip improved staying power
  • Rear support webbing allows for mounting upside down on the underside of the drawbar
  • 2 Stage ADR compliant locking mechanism
  • Low profile Bumper & Cap for impressive clearance
  • High articulation for improved handling off-road and on unmaintained roads
  • Exceeds ADR 62/01 and 62/02 strength requirements
  • 7/8” shaft to fit most std. tow tongues

Specifications:

  • Model: 18D-DO35-V3PLUS-I
  • Brand: Cruisemaster
  • 360 degrees axial, minimum 70 degrees other axes
  • Locking: Fully ADR 62/02 compliant including automatic secondary lock
  • Bolt Pattern: 4 bolts at 185mm x 54mm
  • Rating: 3.5 Tonne
  • Action: Drop-On
  • Maintenance: Fully Greasable



SKU 18D-DO35-V3PLUS-I
Model # 18D-DO35-V3PLUS-I
Barcode # Does not apply
Brand Cruisemaster
Colour Black
Shipping Weight 10.5000kg
Shipping Width 0.170m
Shipping Height 0.160m
Shipping Length 0.510m
Shipping Cubic 0.013872000m3
Type New
Location Code 2L

Write a review


Not only a well made great product that fits, Campsmart delivered quickly, and their prices were super competitive.


Great product and great service from Campsmart staff friendly and helpfull

All items in our store are from reputable Australian suppliers and are covered by a 12-month  warranty for faults and defects.

Products must be used correctly and for the function they were designed for. Damage by customer misuse is not warrantable.

For full warranty information, visit our warranty page - Click here.

If you would like to submit a warranty claim, please submit a support ticket on our Customer Support Portal.

Click here to visit the portal

Due to the high incidence of online fraud, you will be required to provide proof of any warranty claims and may be required to return the item for assessment.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.



V3PLUS Features:

  • Patented “Checklock” Gen.2 Dust Cap & Bumper for an easy, secure seal
  • Improved Bumper molding gives the from reflector strip improved staying power
  • Rear support webbing allows for mounting upside down on the underside of the drawbar
  • 2 Stage ADR compliant locking mechanism
  • Low profile Bumper & Cap for impressive clearance
  • High articulation for improved handling off-road and on unmaintained roads
  • Exceeds ADR 62/01 and 62/02 strength requirements
  • 7/8” shaft to fit most std. tow tongues
