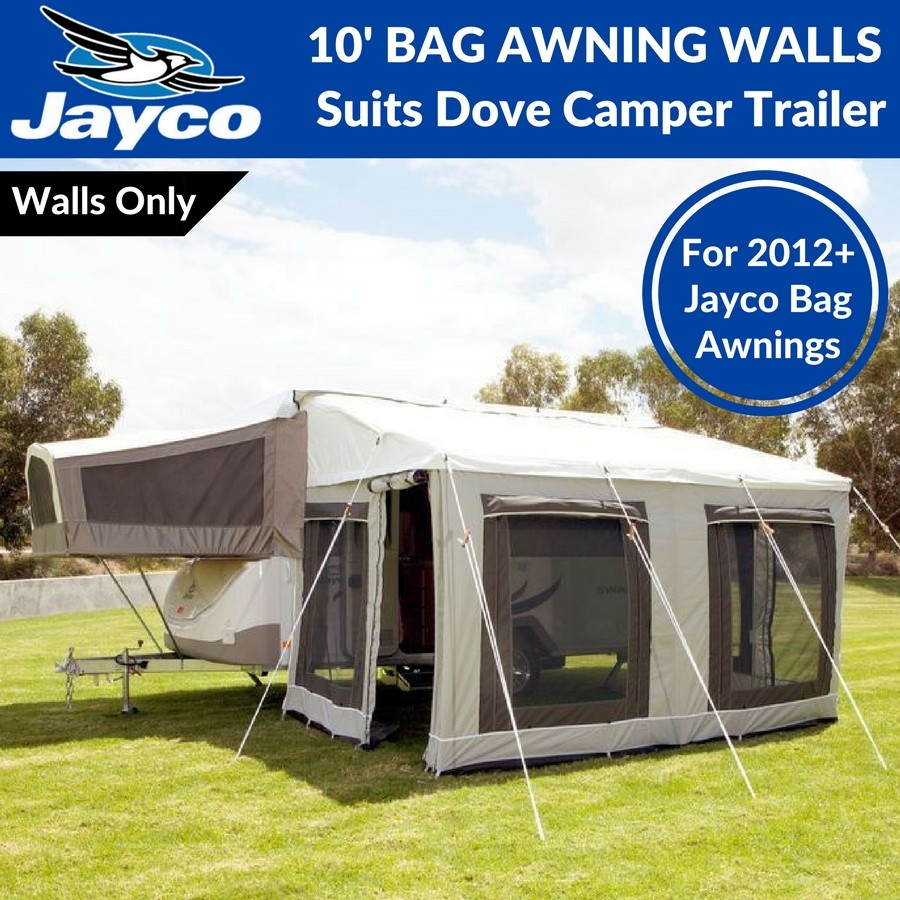

Jayco Bag Awning Walls to suit Jayco Dove & Lark (Touring & Outback)

Please note this sale is for the Jayco Canvas Awning Walls only. The Bag Awning is not included (but is available in separate listings)

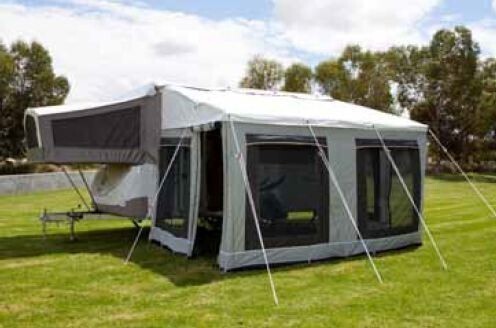

The brand new 10' Jayco Canvas Awning walls have been specifically designed for the Jayco factory branded bags awnings often fitted to the Jayco Dove & new Lark Camper Trailers (both Touring and Outback models). The awning walls are the current stock matching the new style Jayco Bag Awnings (from 2012).

Please note the walls are unlikely to fit any non Jayco brand or pre-2012 Jayco Bag awnings due to a difference in the distance coming out from the van, attachment method and/or zip size. They will also not fit the "Prestige" Jayco labelled awnings as these are manufactured by a different supplier for a specific Jayco dealership. If you have an older Jayco or a non-compatible awning, you may wish to consider purchasing the complete bag awning and walls package.

The awning walls features include:

  • 2 doors with fly screen for ventilation/light with Canvas roll down cover
  • 4 fly screen windows with clear PVC rain covers and canvas block-out covers
  • A draft skirt to close the gap between the bottom of the van and the ground. Note the draft skirt is designed for the Dove (1990+ models). Please note it will need to be altered to fit the Lark and older Dove models and this is the customers responsibility.
  • Horizontal dimensions are 2.9m (Long Wall) x 2.25m (Side Walls)


Included in the package are:

  • A handy storage bag for the awning walls and equipment;
  • All pegs required (including peg bag);
  • Side draft skirt;

Canvas Type:

  • The walls are constructed of weaved high quality polyester canvas with yarns (0.46mm thick).
  • Polyester is known for its strength and durability. It is resistant to stretching, shrinking, wrinkles, mildew, scratching and even some chemicals. Another benefit of polyester canvas is that it is easy to wash and dry
  • The windows are made from clear PVC with a 0.27mm thickness - these can be rolled up for ventilation.
  • The side wall and front wall mudflaps are manufactured from a non-fraying, PVC with webbing.
  • The draft and wheel covers are made from a light weight PVC with webbing.

Important Installation Details:

Note the awning walls need side annexe tracks and a bottom track and press studs for the skirt. The aluminium annexe tracks and studs are not included. This is a relatively simple procedure for annexe installations and can be done for approx. $100 by your local Jayco Dealer or trimmer / caravan service provider. It could also be done by the average handyman by purchasing the hardware.

The annexe height is suited to both the “Touring” and taller “Outback” camper trailer models. The bottom 30cm grey strip is designed to be cut off for the shorter touring models.

Installation Video

See our full range of Jayco products.

SKU C9177H
Model # C9177H
Barcode # Does not apply
Brand Jayco
Colour Grey
Shipping Weight 21.0000kg
Shipping Width 0.330m
Shipping Height 0.290m
Shipping Length 0.850m
Type New
Location Code OA11

Write a review


These walls fitted our new 2014 Jayco Dove perfectly. I bought a length of sail track and some press studs from Jayco. I fitted these to our camper myself and attached the walls and skirt. The only thing i did was cut a slot to allow the step to be extended. There isn't any provision to extend the step out through the skirt and its quite a step down without it. No instructions are included, but i had some supplied when we purchased the new Camper.

All items in our store are from reputable Australian suppliers and are covered by a 12-month  warranty for faults and defects.

Products must be used correctly and for the function they were designed for. Damage by customer misuse is not warrantable.

For full warranty information, visit our warranty page - Click here.

If you would like to submit a warranty claim, please submit a support ticket on our Customer Support Portal.

Click here to visit the portal

Due to the high incidence of online fraud, you will be required to provide proof of any warranty claims and may be required to return the item for assessment.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.



The awning walls features include:

  • 2 doors with fly screen for ventilation/light with Canvas roll down cover
  • 4 fly screen windows with clear PVC rain covers and canvas block-out covers
  • A draft skirt to close the gap between the bottom of the van and the ground. Note the draft skirt is designed for the Dove (1990+ models). Please note it will need to be altered to fit the Lark and older Dove models and this is the customers responsibility.
  • Horizontal dimensions are 2.9m (Long Wall) x 2.25m (Side Walls)


Included in the package are:

  • A handy storage bag for the awning walls and equipment;
  • All pegs required (including peg bag);
  • Side draft skirt;

Important Installation Details:

Note the awning walls need side annexe tracks and a bottom track and press studs for the skirt. The aluminium annexe tracks and studs are not included. This is a relatively simple procedure for annexe installations and can be done for approx. $100 by your local Jayco Dealer or trimmer / caravan service provider. It could also be done by the average handyman by purchasing the hardware.

The annexe height is suited to both the “Touring” and taller “Outback” camper trailer models. The bottom 30cm grey strip is designed to be cut off for the shorter touring models.
