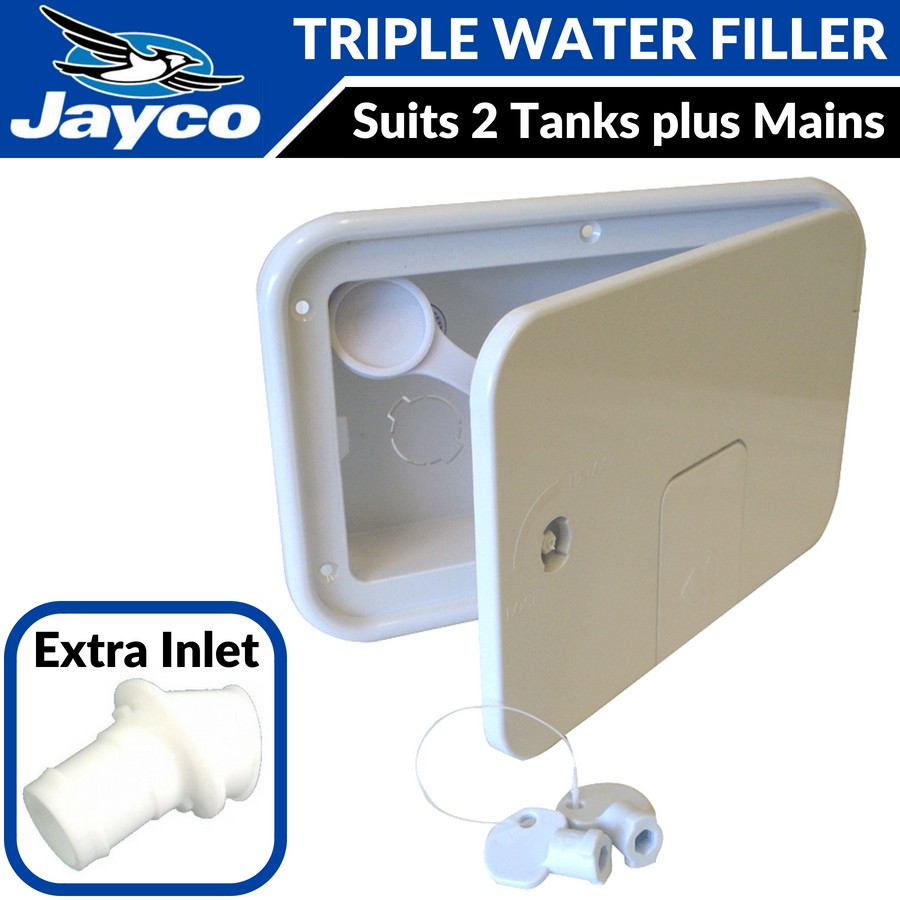

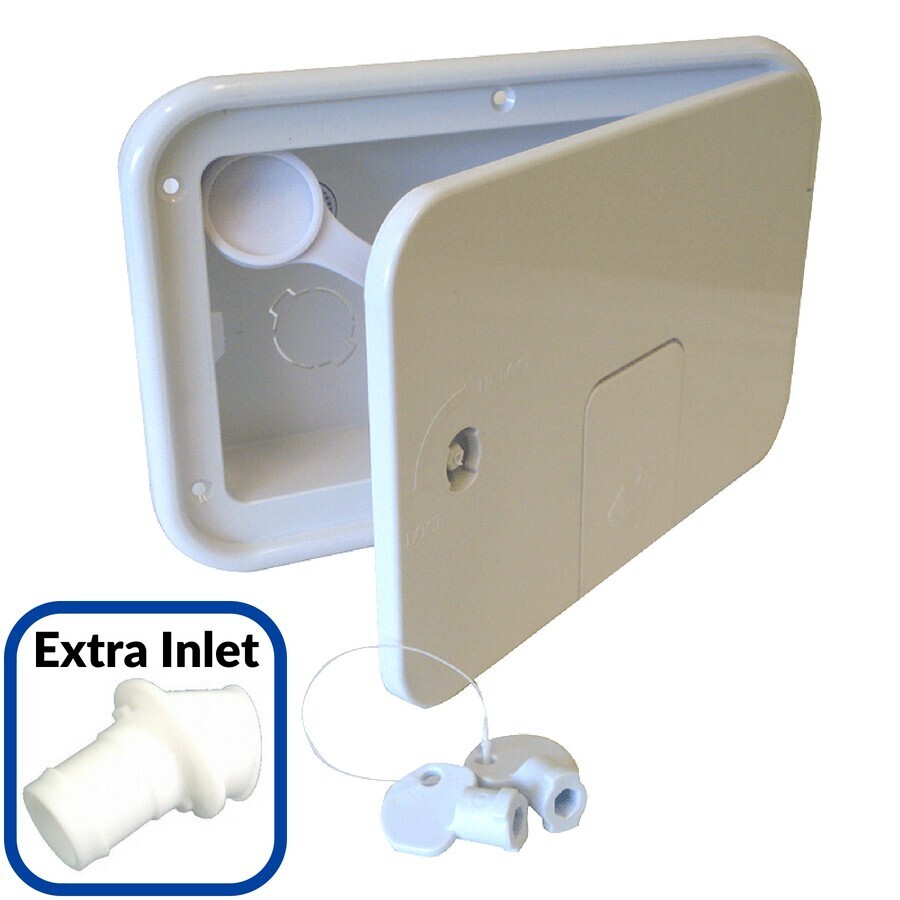

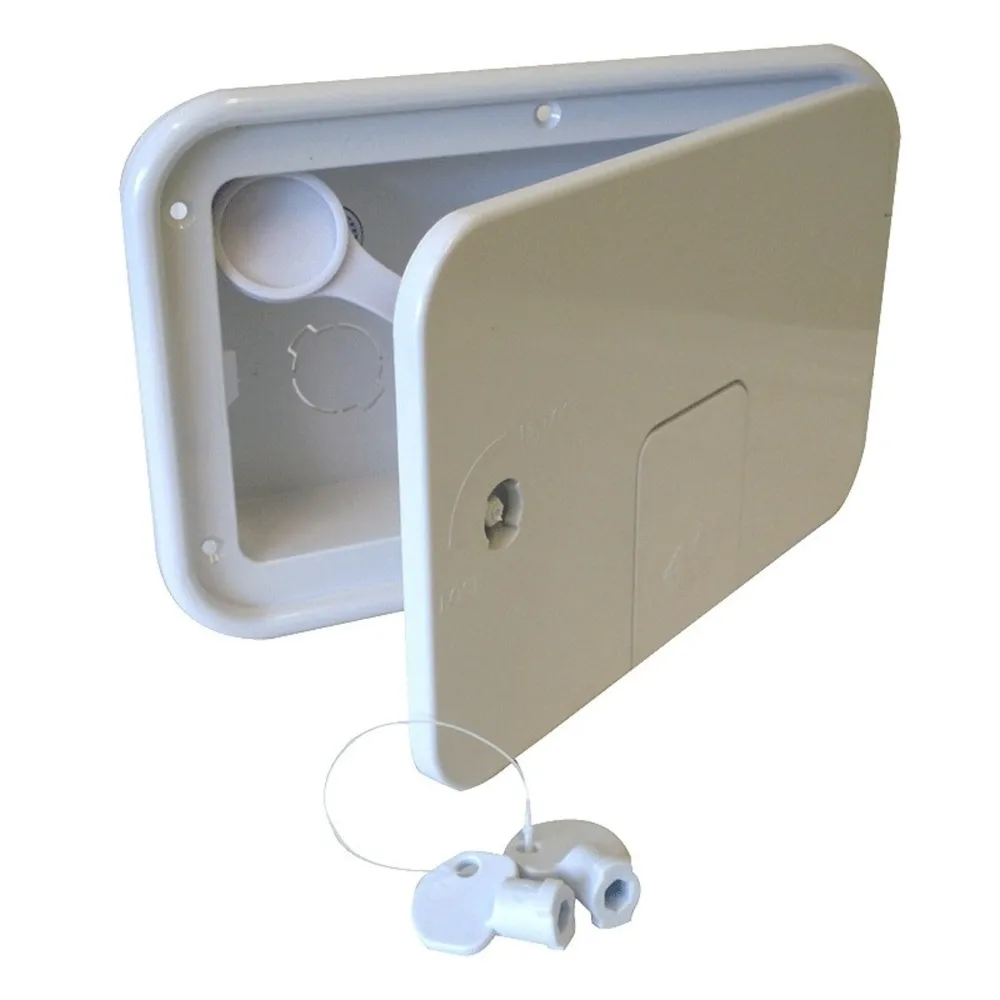

Jayco Water Filler Inlet (Mains & 2 Tanks)

Used with the current range of Jayco Caravans, Pop Tops and Camper Trailers, the new Jayco water filler with lockable door includes an inlet for a mains connection together with water 2 tank inlets. An extra inlet connector is provided in this kit to complete the 2 tank fillers.

The water filler includes a flap for a mains hose connection so the door can be locked while in use, minimising the risk of any tampering with the connection and tank filler inlets. Rubber caps are also included to cover the 3 inlets while in transit or not in use.

Key Features:

  • Lockable door with 2 keys supplied
  • Hose flap allows mains connection with door locked
  • Include an extra inlet connector to support 2 tanks
  • Includes 2x 12mm breathers for 2 water tanks
  • Comes with a rubber gasket to seal the unit against the RV

Specifications:

  • Dimensions: 227mm x 150mm with 25mm radius corners
  • Cut Out Required: 185mm x 110mm cut out with 8mm radius corners
  • Depth of unit (excluding connection points): 100mm
  • Mains hose Flap: 65mmx55mm
  • Mains Connection to 1/2 inch BSP

See our full range of Jayco products.

SKU C6477DC
Model # C6477DC
Barcode # Does not apply
Brand Jayco
Colour White
Shipping Weight 0.4900kg
Shipping Width 0.170m
Shipping Height 0.140m
Shipping Length 0.250m
Assembled Length 0.150m
Assembled Height 0.227m
Assembled Width 0.025m
Type New
Location Code 49C8 & 49C9

Help other users shop smarter by writing reviews for products you have purchased.

Write a review

All items in our store are from reputable Australian suppliers and are covered by a 12-month  warranty for faults and defects.

Products must be used correctly and for the function they were designed for. Damage by customer misuse is not warrantable.

For full warranty information, visit our warranty page - Click here.

If you would like to submit a warranty claim, please submit a support ticket on our Customer Support Portal.

Click here to visit the portal

Due to the high incidence of online fraud, you will be required to provide proof of any warranty claims and may be required to return the item for assessment.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.



Key Features:

  • Lockable door with 2 keys supplied
  • Hose flap allows mains connection with door locked
  • Include an extra inlet connector to support 2 tanks
  • Includes 2x 12mm breathers for 2 water tanks
  • Comes with a rubber gasket to seal the unit against the RV

Specifications:

  • Dimensions: 227mm x 150mm with 25mm radius corners
  • Cut Out Required: 185mm x 110mm cut out with 8mm radius corners
  • Depth of unit (excluding connection points): 100mm
  • Mains hose Flap: 65mmx55mm
  • Mains Connection to 1/2 inch BSP
