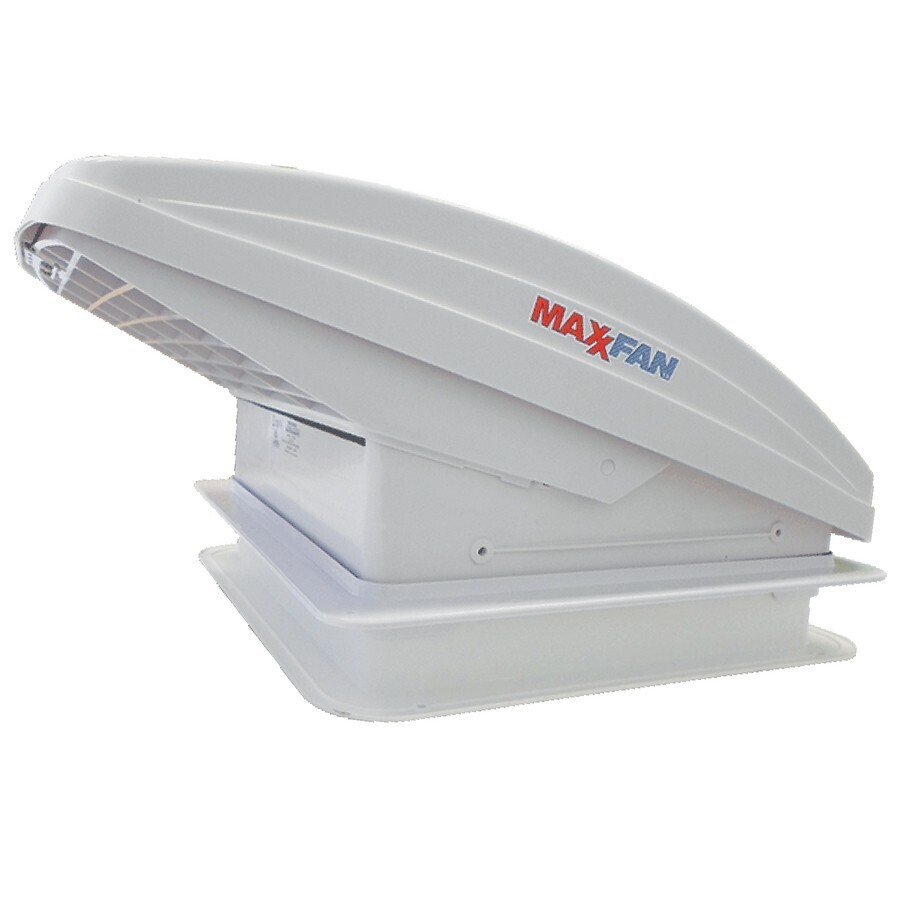

MaxxFan Deluxe with Rain Dome & Thermostat - Manual Lift

RV ventilation has never been easier than with a MaxxFan. They’ve been used in the US RV market since 1988, and they are now available in Australia. The MaxxFan Deluxe 5100KI includes the Rain Dome, manual lift opening option, thermostat and a ceiling mounted control panel that is easy to use and read.

The unique Rain Dome enables the fan to be used with external ventilation in the rain. This eliminates the need for rain sensors and needing to close the vents during rain events. This feature is particularly useful in tropical conditions!

Key Features:

  • Removable flyscreen – simply twist the L-clamps and remove for cleaning!
  • Installs onto all standard 14” x 14” (356mm x 356mm) roof openings
  • Powerful 10-speed fan motor
  • Fan can run even if the lid is closed (select ‘Ceiling Fan Mode’) and can be used in “intake” and “exhaust” modes
  • Provides over 900CFM, keeping your RV cool and comfortable
  • Twin lifting arms limit vibrations cause by wind when in the ‘open’ position

Specifications:

  • Amp Draw on High: 2.6A
  • Amp Draw on Low: 0.17A
  • Dimension (closed): 589L x 421W x 128H mm
  • Dimension (open): 589L x 421W x 230H mm
  • Installed Weight: 5.4kg
  • Roof Thickness: 22mm (min) – 90mm (max)

SKU 5100KI
Model # 5100KI
Barcode # 752055006321
Brand MaxxAir
Colour White
Shipping Weight 5.4000kg
Shipping Width 0.450m
Shipping Height 0.300m
Shipping Length 0.640m
Shipping Cubic 0.086400000m3
Assembled Length 0.589m
Assembled Height 0.128m
Assembled Width 0.421m
Type New
Location Code 46D1

Help other users shop smarter by writing reviews for products you have purchased.

Write a review

All items in our store are from reputable Australian suppliers and are covered by a 12-month  warranty for faults and defects.

Products must be used correctly and for the function they were designed for. Damage by customer misuse is not warrantable.

For full warranty information, visit our warranty page - Click here.

If you would like to submit a warranty claim, please submit a support ticket on our Customer Support Portal.

Click here to visit the portal

Due to the high incidence of online fraud, you will be required to provide proof of any warranty claims and may be required to return the item for assessment.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.



Key Features:

  • Removable flyscreen – simply twist the L-clamps and remove for cleaning!
  • Installs onto all standard 14” x 14” (356mm x 356mm) roof openings
  • Powerful 10-speed fan motor
  • Fan can run even if the lid is closed (select ‘Ceiling Fan Mode’) and can be used in “intake” and “exhaust” modes
  • Provides over 900CFM, keeping your RV cool and comfortable
  • Twin lifting arms limit vibrations cause by wind when in the ‘open’ position

Specifications:

  • Amp Draw on High: 2.6A
  • Amp Draw on Low: 0.17A
  • Dimension (closed): 589L x 421W x 128H mm
  • Dimension (open): 589L x 421W x 230H mm
  • Installed Weight: 5.4kg
  • Roof Thickness: 22mm (min) – 90mm (max)
