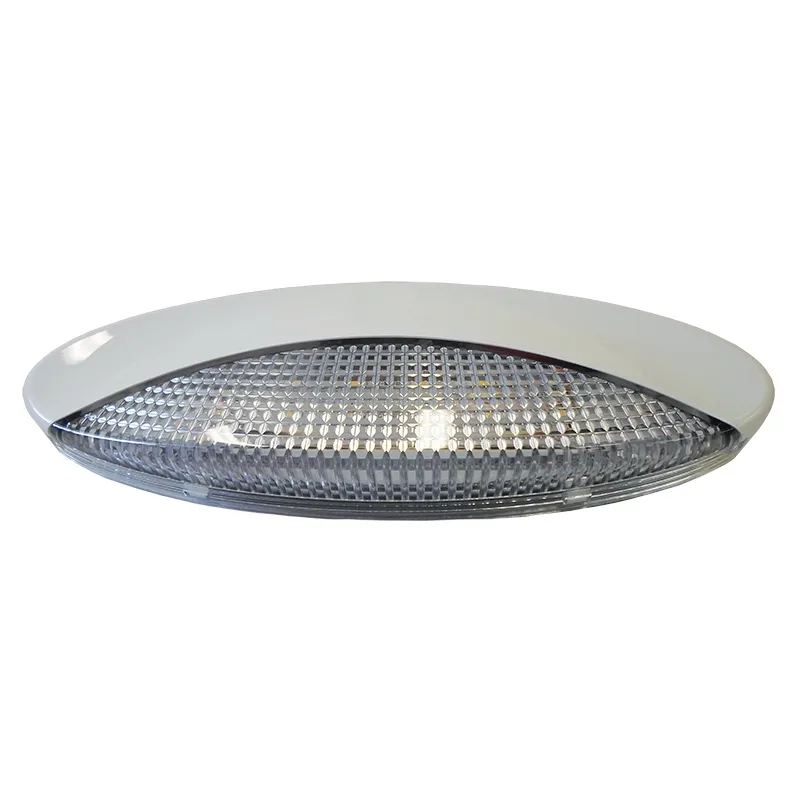

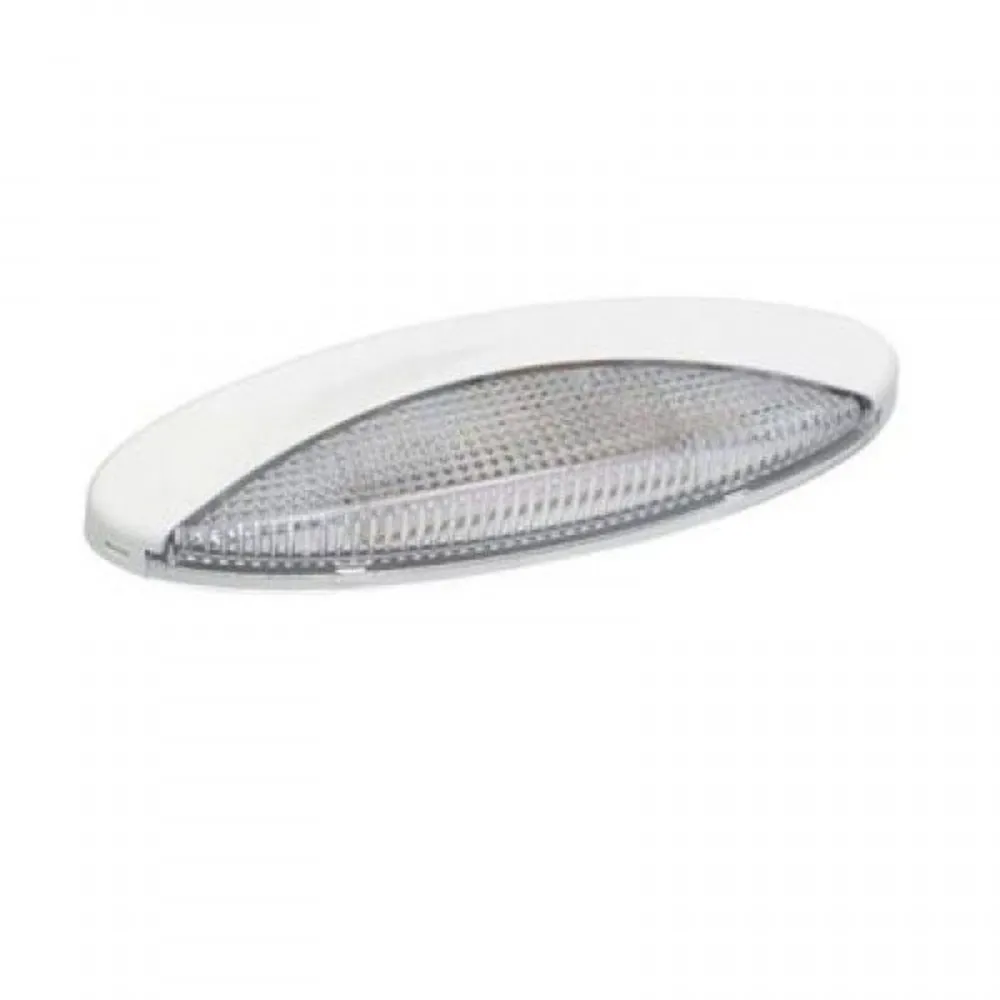

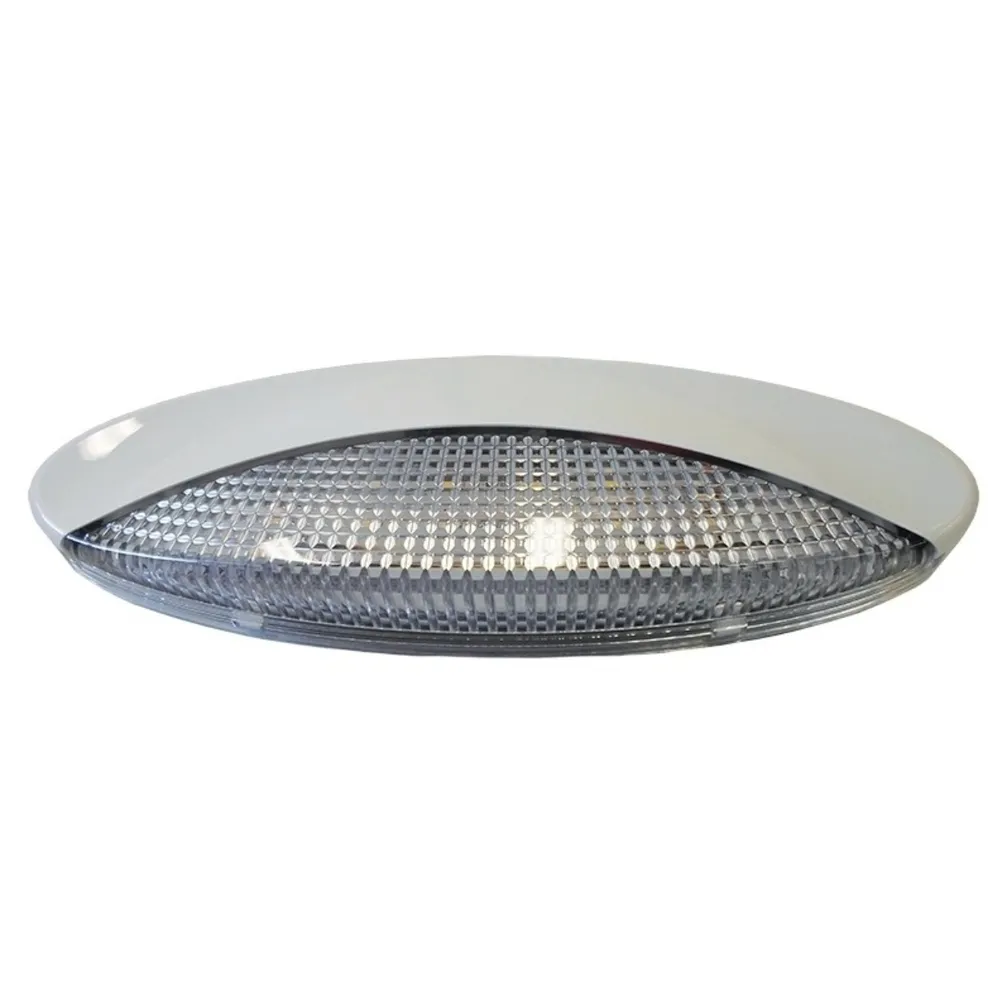

Narva 9-33V LED Awning Light (250mm)

Narva’s new low profile L.E.D awning lamp’s are ideally suited to modern caravans, poptops and motorhome exteriors. Designed with easy installation in mind, the lamps are pre-wired, surface mountable and include a stylish “snap together” housing.

Using the latest high output L.E.D's the lamps feature the benefits of long life performance together with ultra low current draw. Constructed with a virtually unbreakable polycarbonate lens the awning lamps have been designed specifically for a range of exterior applications.

Narva are the market leaders when it comes to RV LED lighting with most leading manufacturers such as Jayco now using this LED Awning light on their full range of Caravans, Pop Tops and Expandas.

Key Features:

  • 5 Year LED Warranty
  • Virtually unbreakable polycarbonate lense
  • Extremely efficient with a very low power draw
  • Smooth yet powerful SMD L.E.Ds
  • Operational through a wide voltage range (therefore ideal for free camping)
  • Includes mounting screws & installation instructions
  • Colour:  White

Specifications:

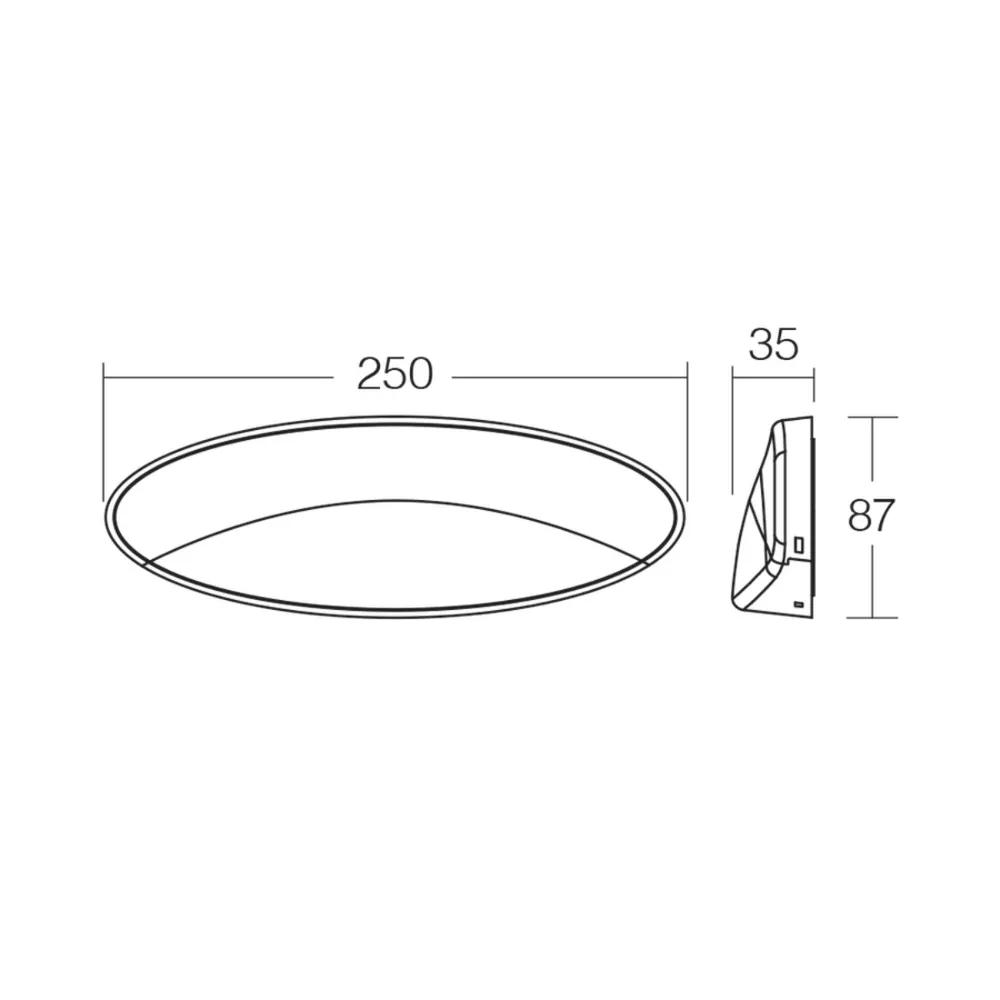

  • 250mm (Width) x 35mm (Depth) x 87.3mm (Height)
  • 9-33V Range
  • Current Draw: 0.26A at 12V, 0.14A at 24V & 3W at 240V AC

Our Notes:

  • These are great for a retro installation and replacement of your older style awning light with a more energy efficient but significantly brighter LED light. These will typically use 10-15 times less energy than the older style bulbs and are ideal for free camping when restricted to using limited battery power.
  • A retro installation is easy as most RV's will have existing 12V wiring in place to connect to.
  • We also have a larger 300mm version - see our linked listing on the lower left hand side of this page.
  • Please note these do not have an in-built switch or a separate switch included as they're designed for Caravans, Pop Tops or Motorhomes which normally have an internal switch for the awning light.
  • When opening the light to install do so gently and do not force this may snap the plastic clip that holds the light together. This type of damage is caused by excessive force and not covered under warranty.

See our full range of Narva products.

SKU 87780
Model # 87780
Barcode # 9314464877889
Brand Narva
Colour White
Shipping Weight 0.2500kg
Shipping Width 0.250m
Shipping Height 0.045m
Shipping Length 0.095m
Shipping Cubic 0.001069000m3
Assembled Length 0.250m
Assembled Height 0.087m
Assembled Width 0.035m
Type New
Location Code 45D1

Write a review


Looks good. Good replacement for the Halogen one.


Product was exactly what was ordered. Already fitted to van. Easy installation to do. Bright light and very pleased with product.


This is a really easy surface mount light to install. I ran it through a switch in the van. Good spread of light for inside a small annexe or under a small awning. When turned on it makes no difference to the battery meter so must use very little power


Great money for value, work like a treat a great buy.

All items in our store are from reputable Australian suppliers and are covered by a 12-month  warranty for faults and defects.

Products must be used correctly and for the function they were designed for. Damage by customer misuse is not warrantable.

For full warranty information, visit our warranty page - Click here.

If you would like to submit a warranty claim, please submit a support ticket on our Customer Support Portal.

Click here to visit the portal

Due to the high incidence of online fraud, you will be required to provide proof of any warranty claims and may be required to return the item for assessment.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.



Key Features:

  • 5 Year LED Warranty
  • Virtually unbreakable polycarbonate lense
  • Extremely efficient with a very low power draw
  • Smooth yet powerful SMD L.E.Ds
  • Operational through a wide voltage range (therefore ideal for free camping)
  • Includes mounting screws & installation instructions
  • Colour:  White

Specifications:

  • 250mm (Width) x 35mm (Depth) x 87.3mm (Height)
  • 9-33V Range
  • Current Draw: 0.26A at 12V, 0.14A at 24V & 3W at 240V AC
