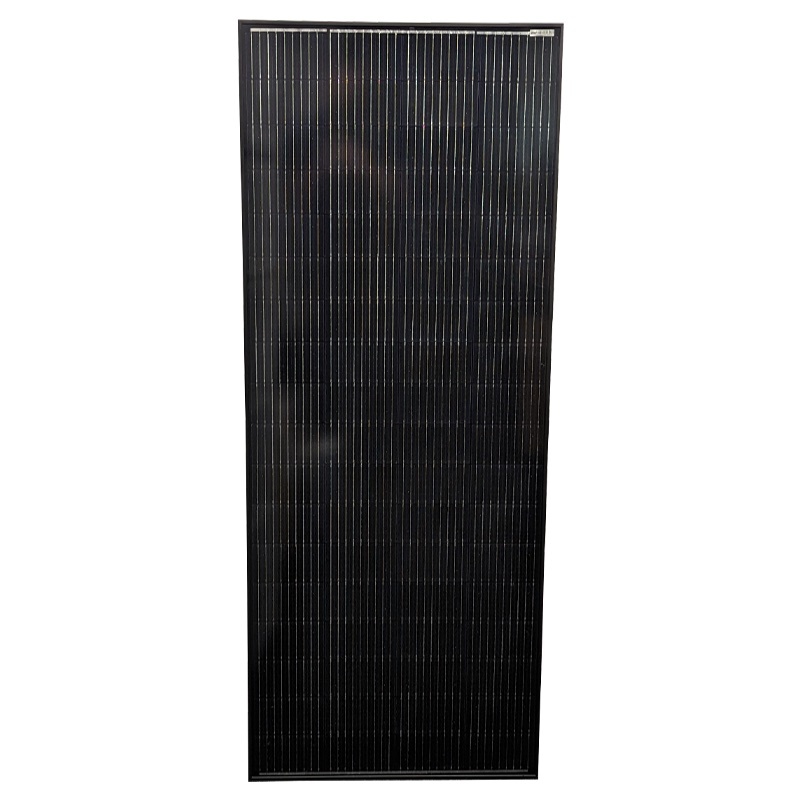

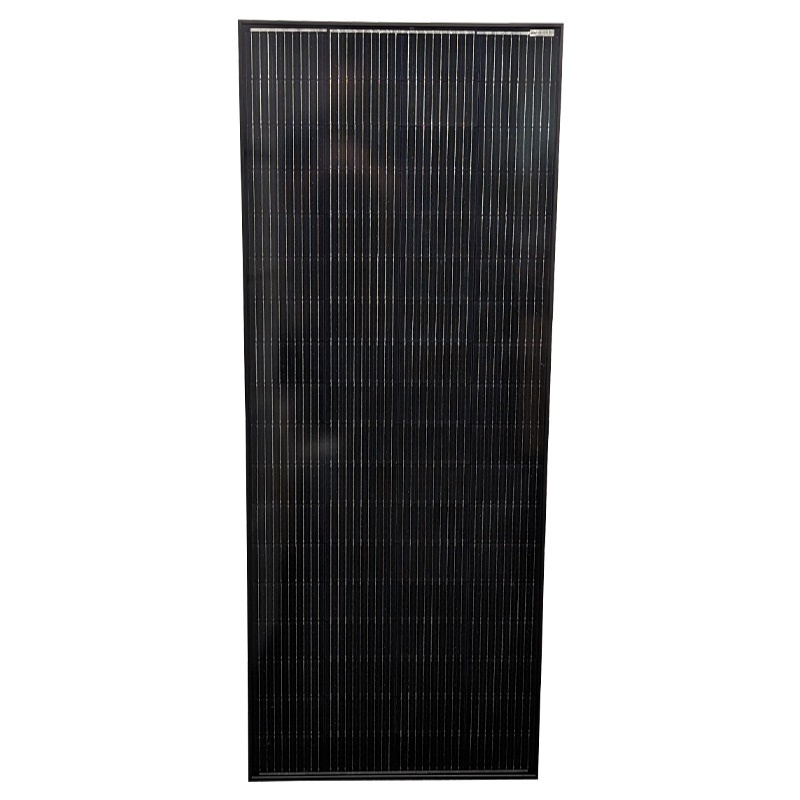

Sphere 250W Twin Cell Solar Panel - Black Frame

Sphere Twin Cell Solar Technology is the future of solar power generation for the Caravanning and RV Market.

Researched and developed in Australia, Sphere Twin Cell Technology is an innovative solution to the common issue of partial shading that affects caravan and RV solar power applications. Partial shading caused by rooftop mounted accessories such as air conditioners, roof vents and satellites can result in severe bottlenecks for conventional solar panels. When even a small section of a traditional panel is covered by shade, a blockage is created that drastically reduces overall output.

Sphere Twin Cell Technology helps reduce the impact of partial shading by allowing a single large solar panel to operate as if it were two smaller panels with isolated circuit paths. This unique parallel design allows each side of the panel to function independently from the other. When one half of a panel is covered by shade, the other will still perform at full capacity. Where partial shading will have already stopped traditional mono-crystalline panels from providing vital power, Sphere Solar Panels with Twin Cell Technology will keep on charging.

Key Features:

  • Sphere Twin Cell Solar Technology for improved performance in partial shade.
  • Saves money on installation costs and provides more installation options
  • Allows you to install multiple panels on existing builds without having to upgrade the wiring.
  • Provides a more efficient and cost-effective solar power system for all users
  • Ensures consistent power output even when there is partial shading

Specifications:

  • Standard Test Conditions: 1000W/M2,1.5AM,25
  • Peak Power Output: (W) 250 W
  • Power Output Tolerance(%): +3%
  • Maximum Power Voltage (V): 20.61
  • Maximum Power Current (A): 12.13
  • Short Circuit Current (A): 12.35
  • Open Circuit Voltage (V): 24.1
  • Maximum System Voltage: 1000V/DC
  • Junction Box Type: 0.9m 4mm 2 solar cable fitted with MC 4 IP65
  • Number of Cells: 4 x 18 (72pcs)
  • Module Size (mm): 670 x 1850 x 35 x 30 x 1.2
  • Module Net Weight: 14 KG
  • Working Temperature: -40 ~ 85 °C
  • Power TK: -0.45%/°C
  • Short Circuit Current T: 0.045%/℃
  • Test temperature: 25±2 °C
  • Guarantee of power output: ≦25 Years ≧80%
  • Material Warranty: 12 months

SKU 500-06272
Model # 500-06272
Barcode # Does not apply
Brand Sphere
Colour Black
Size 250w
Shipping Weight 14.0000kg
Shipping Width 0.680m
Shipping Height 0.070m
Shipping Length 1.850m
Shipping Cubic 0.088060000m3
Assembled Length 0.670m
Assembled Height 1.850m
Assembled Width 0.035m
Type New
Location Code 1H1
