Sphere PWM 12V/24V 40A Solar Charge Controller

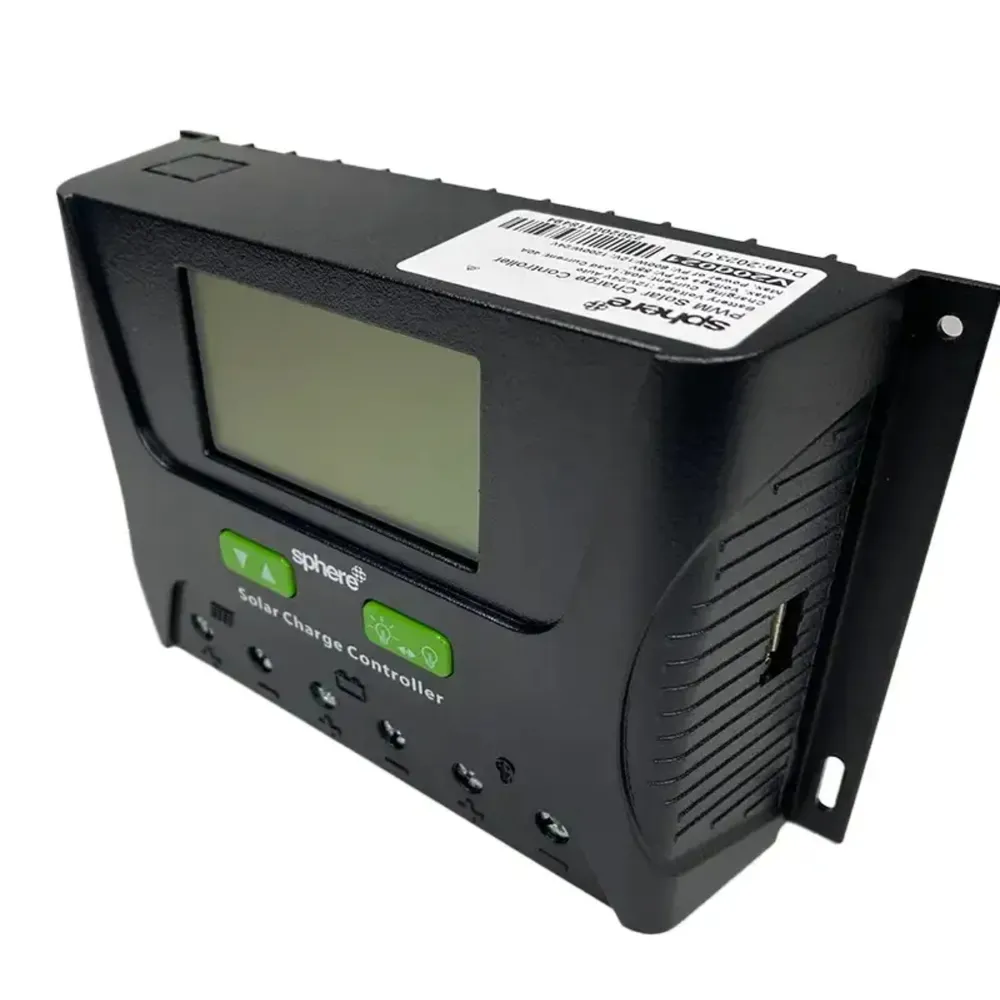

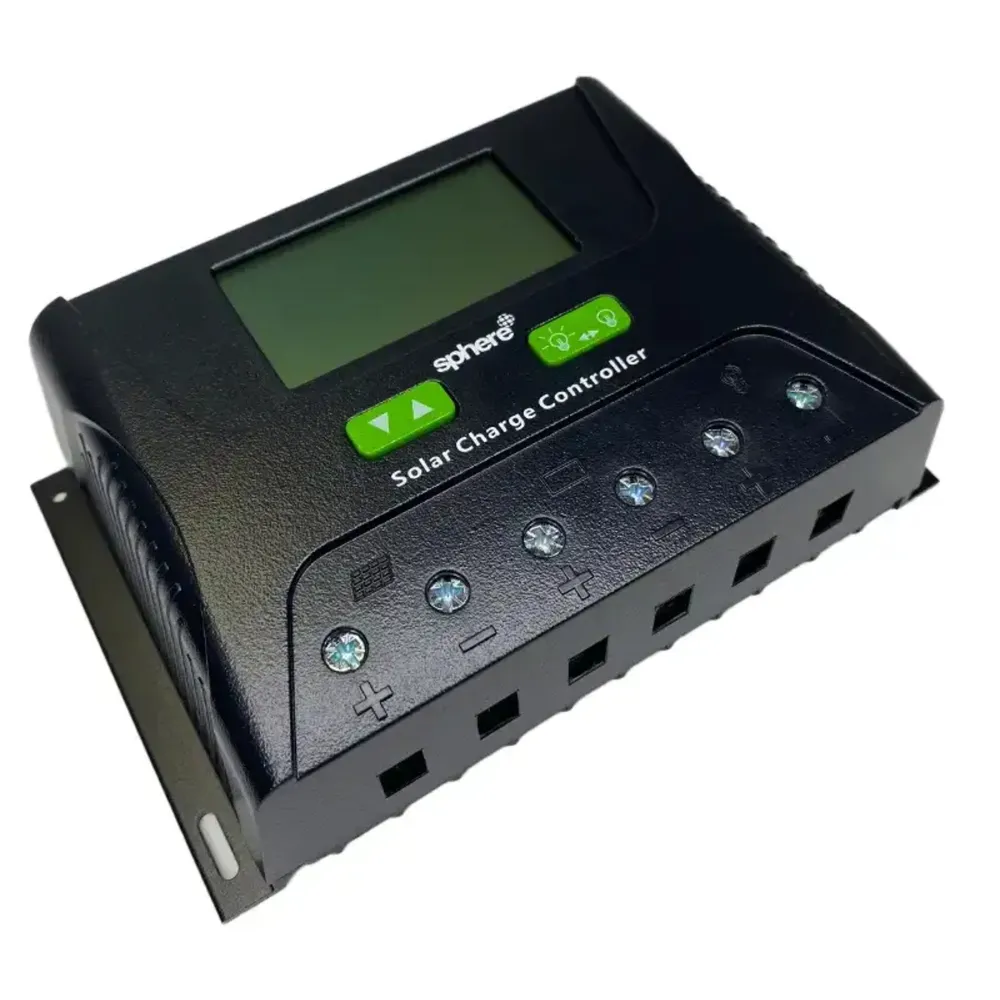

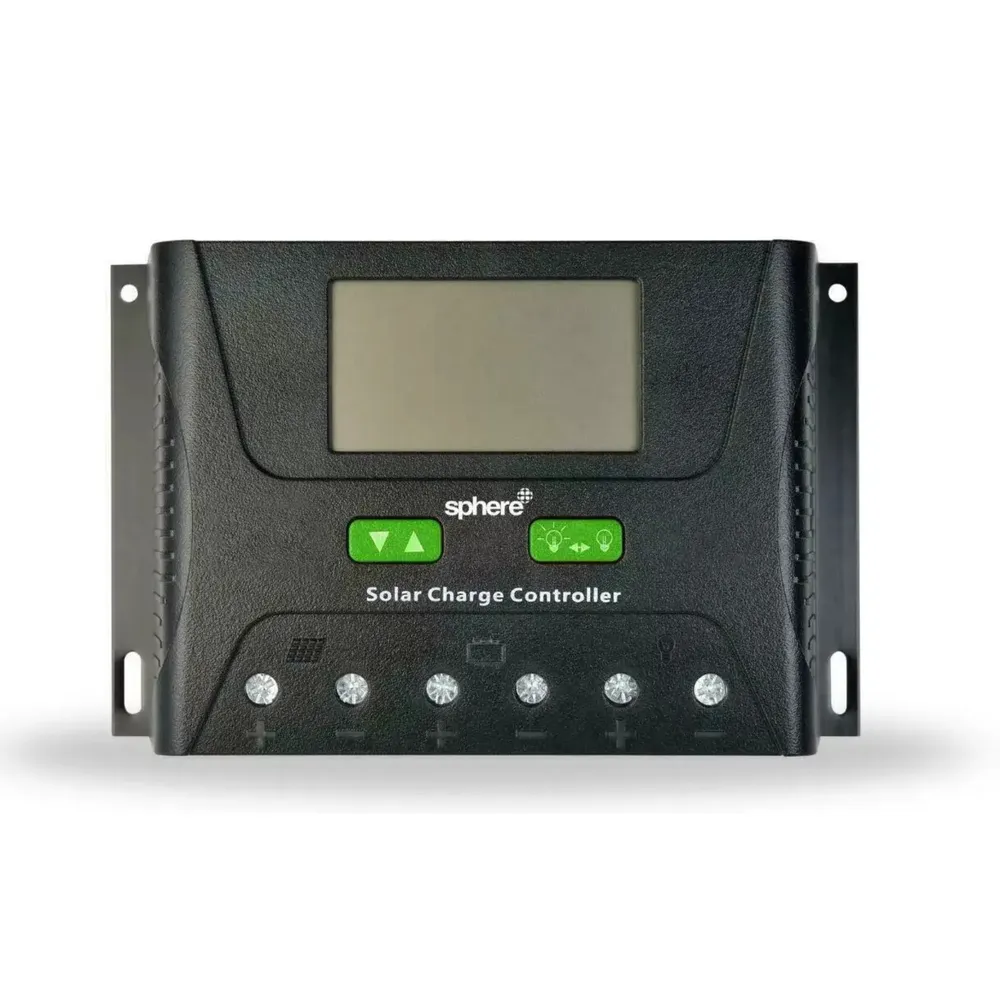

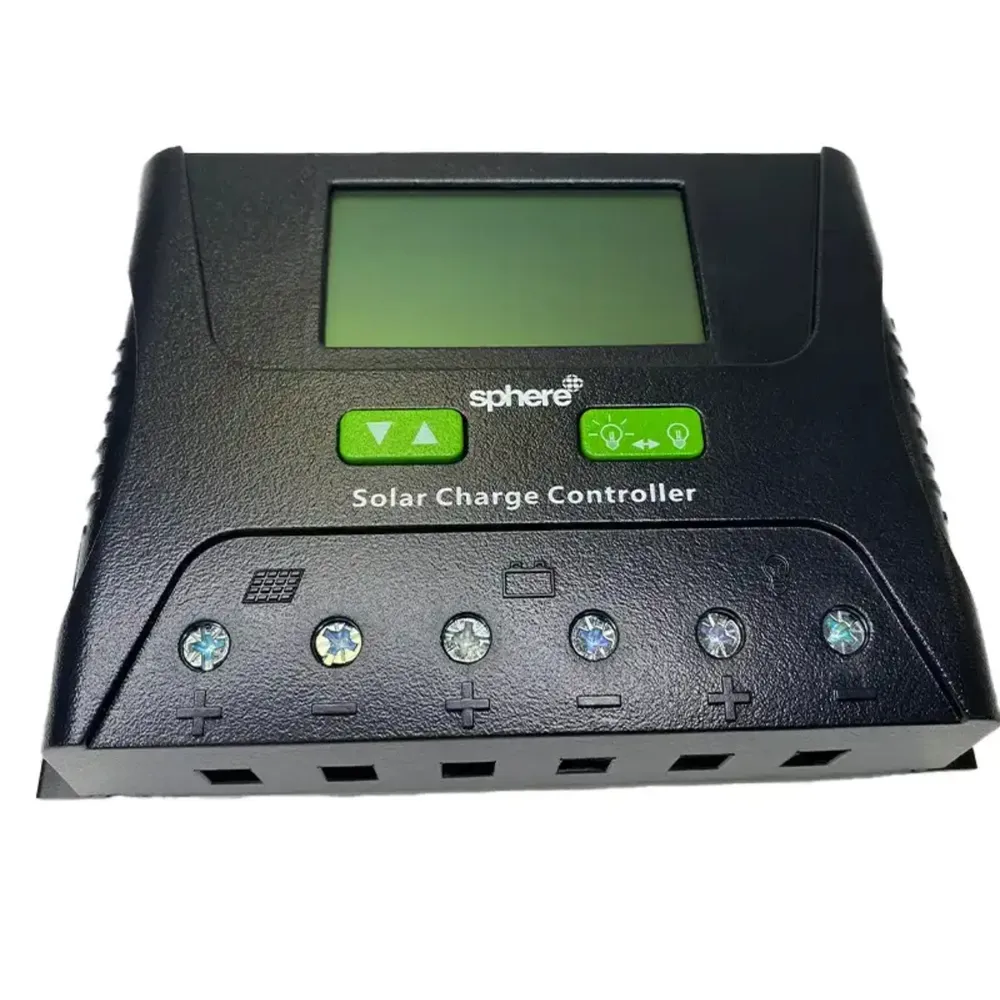

Sphere PWM Solar Charge Controller
Solar power is one of the most convenient and portable ways to power your campsite. Now you can take control of your power with Sphere's new Solar Charge Regulators!
The Sphere PWM Solar Charge Controller adopts an upgraded 3-stage PWM charging algorithm, which applies an equalizing charge to the battery periodically to prevent it from non-equalization and sulfuration, extending the battery's service life (with the exception of GEL and lithium batteries).
Features
- Advanced 3-stage PWM charging algorithm
- Overload, overcharge, and over-discharge protection
- Dot Matrix Graphic LCD Screen
- Multiple charging options for various battery types
- Automatically recognises 12V/24V system voltages

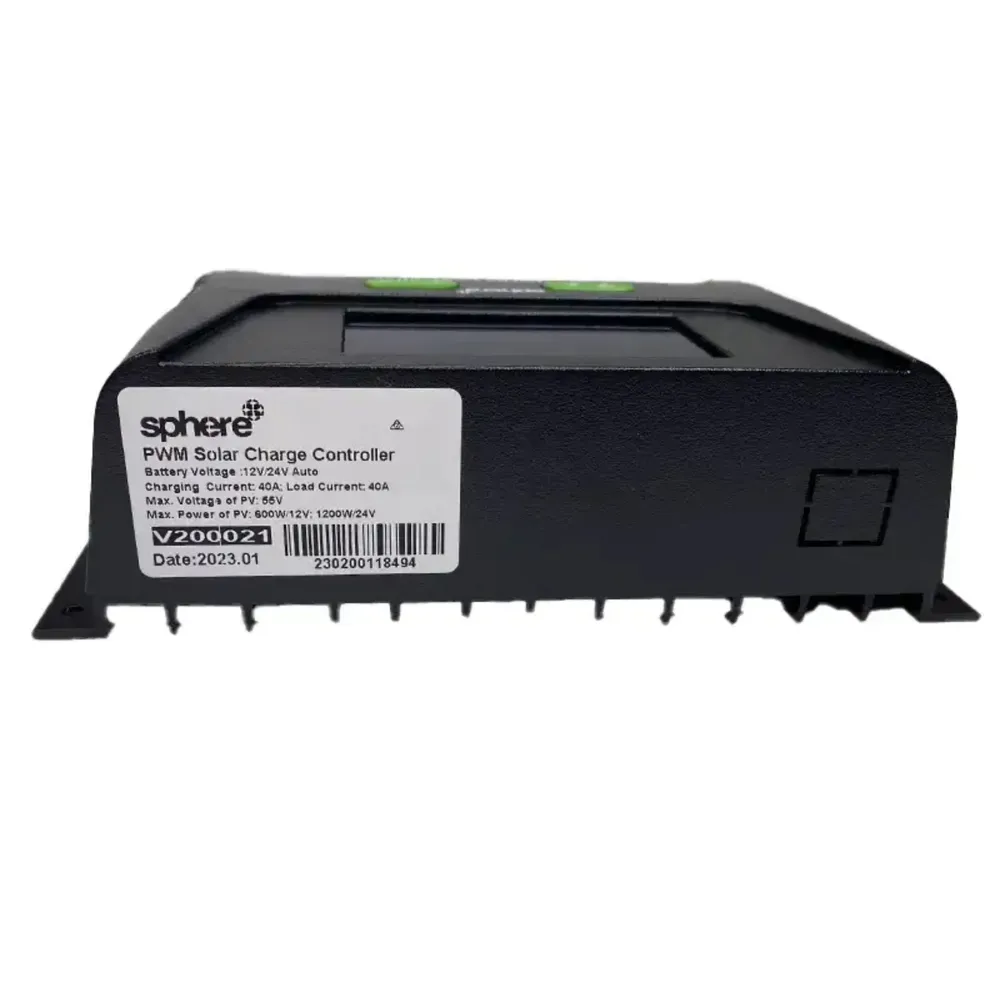

Specifications
- Model: 500-06220
- Brand: Sphere
- Rated Current: 40A
- Max PV Input: 600W/12V
- Max. Solar Energy Input Voltage: < 55V
- Max. Voltage at Battery End: < 34V
SKU | 500-06220 |
Model # | 500-06220 |
Barcode # | Does not apply |
Brand | Sphere |
Colour | Black |
Shipping Weight | 0.4800kg |
Shipping Width | 0.110m |
Shipping Height | 0.060m |
Shipping Length | 0.190m |
Shipping Cubic | 0.001254000m3 |
Assembled Length | 0.165m |
Assembled Height | 0.105m |
Assembled Width | 0.045m |
Type | New |
Location Code | 82D3 |
Help other users shop smarter by writing reviews for products you have purchased.
All items in our store are from reputable Australian suppliers and are covered by a 12-month warranty for faults and defects.
Products must be used correctly and for the function they were designed for. Damage by customer misuse is not warrantable.
For full warranty information, visit our warranty page - Click here.
If you would like to submit a warranty claim, please submit a support ticket on our Customer Support Portal.
Click here to visit the portal
Due to the high incidence of online fraud, you will be required to provide proof of any warranty claims and may be required to return the item for assessment.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Features
- Advanced 3-stage PWM charging algorithm
- Overload, overcharge, and over-discharge protection
- Dot Matrix Graphic LCD Screen
- Multiple charging options for various battery types
- Automatically recognises 12V/24V system voltages
Specifications
- Model: 500-06220
- Brand: Sphere
- Rated Current: 40A
- Max PV Input: 600W/12V
- Max. Solar Energy Input Voltage: < 55V
- Max. Voltage at Battery End: < 34V
