Supex 563VA Acute (Large) Curved Awning Rafter (V3.0)

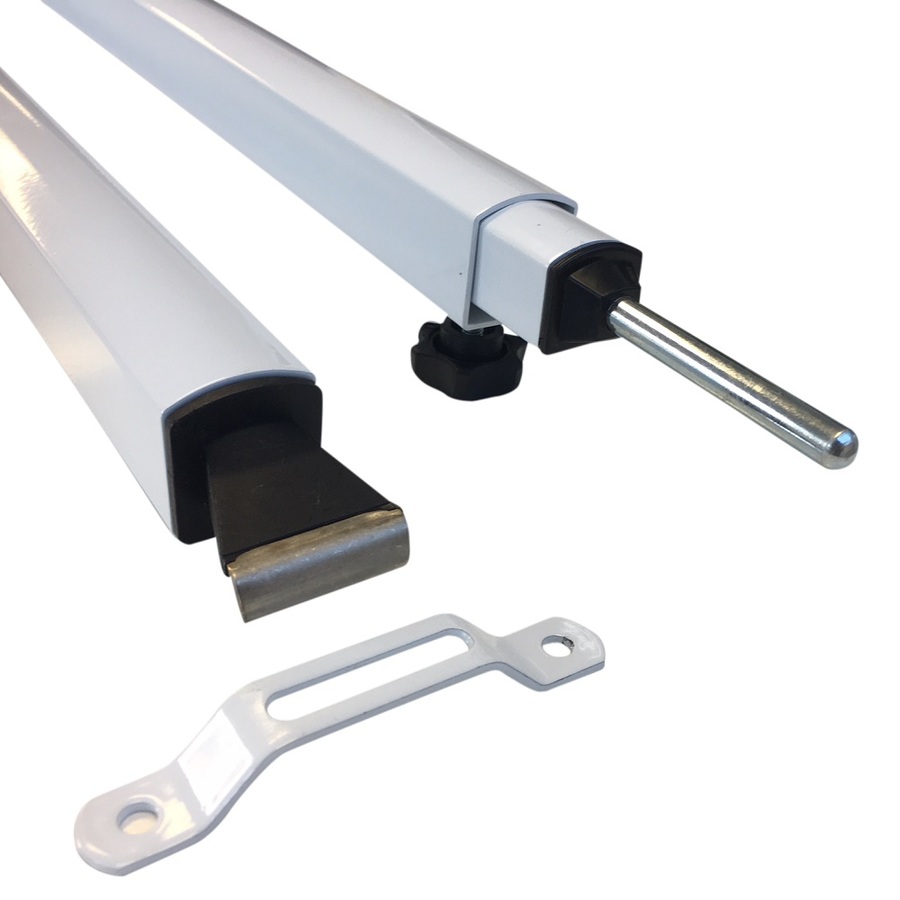

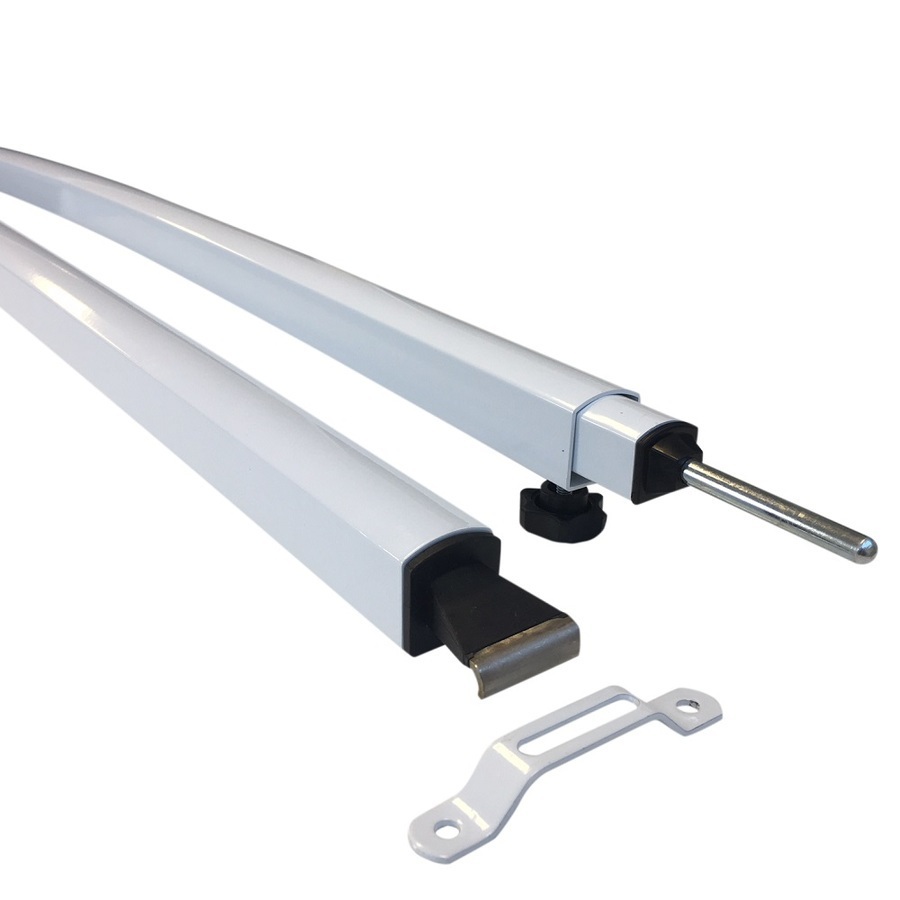

Supex produces Australia's most popular curved rafters for roll out awnings and new to the market is Series 3 of their ever improving flagship product. The 563VA acute (larger curve) version hits the sweet spot in curvature for most applications (around 100mm including the bar thickness). It's no surprise this is the rafter of choice for the leading Australian annexe manufacturers.

New for Version 3.0 is the Stainless Steel & Glass Filled Nylon moulded rail end (which inserts into the bracket provided). This significantly increases the strength of the most vulnerable part of the rafter while also reducing rattling noise in windy conditions. Also added is a hexagonal moulded knob insert which stops the screw part of the knob from coming loose if the seal with the plastic breaks.

Suitable for most caravan and RV roll out awnings including Carefree & Dometic A&E, curved Roof Rafters are used to keep the vinyl roof from sagging, ensuring 100% water run-off as well as keeping the fabric tight and reducing wind flap.

Curved Roof Rafters were introduced to help overcome two common problems experienced by caravanners with roll out awnings:

1. Wind Flapping. Wind flapping in the awning causes the caravan to shake which can lead to restless sleep plus cause damage to the awning, frameset, roller and fabric.

2. Water Pooling. Water pooling is a common cause of awning damage.

Recommended Usage

The minimum recommended usage per awning size is outlined in the following table:

Awning Size Recommended
11' and under        1
12' - 16' 2
17' - 20' 3
21' and over 4



Specifications include:

  • 1.5m to 2.43m extension
  • Larger Acute Curve to provide more tension and better facilitate run-off
  • 12 Month Australian manufacturers warranty
  • Wall bracket included
  • Lightweight and durable aluminium
  • Powder coated white
  • Rounded top to protect awning fabric

Installation Details:

  1. Attach the bracket to the RV with 2 screws into the desired position
  2. Extend the awning out to the fully openned position making sure the key way is facing down
  3. Drill a hole in the awning tube at an appropriate height
  4. File / de-burr the hole in the barrel to ensure no damage to the fabric occurs when closing

Our Notes:

  • This rafter is not suitable for Box Awnings such as Fiamma. Please see our separately listed Fiamma Awning Rafters.
  • Some images show 2 rafters for illustration purposes only. Please note this listing is for 1x curved awning rafter.
  • If you're after a lesser curve please see our Supex 563V slight curved rafter which may better suit new awnings with tight fabric & a lesser extension.
  • Supex have also released these rafters in Black (See our other listings).

See our full range of Supex products.

SKU 563VA
Model # 563VA
Barcode # 9343087000299
Brand Supex
Colour White
Size Extra Curve
Style Roll Out Awning
Shipping Weight 1.3500kg
Shipping Width 0.040m
Shipping Height 0.080m
Shipping Length 1.600m
Shipping Cubic 0.005120000m3
Assembled Length 1.500m
Assembled Height 0.080m
Assembled Width 0.040m
Type New
Location Code 37C1
