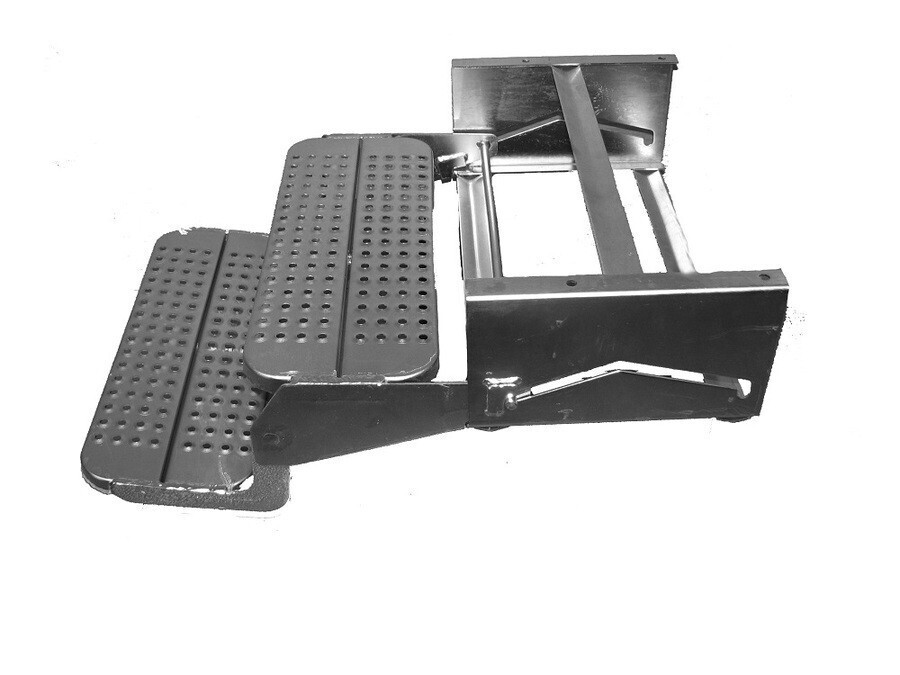

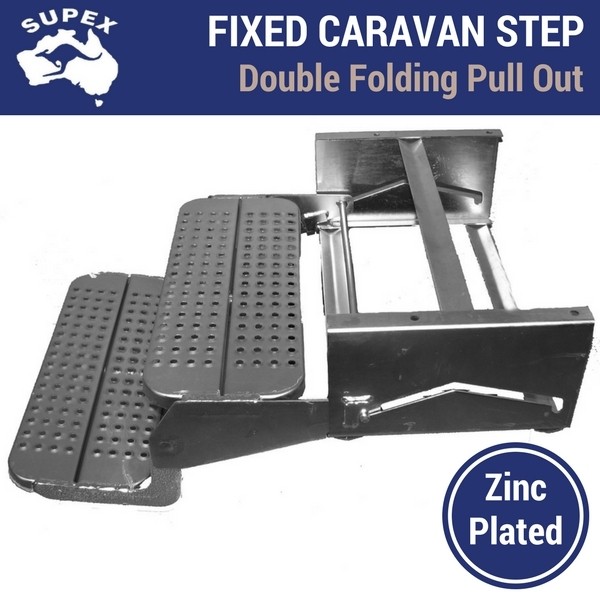

Double Pull Out Caravan Step

Suitable for Caravans, Motorhomes and Camper Trailers, the double pull out step slides back into it's own cavity for travelling. It's a fixed step to be welded or bolted onto the RV with the additional step providing easier access with reduced drop to the ground, compared to single pull out steps.

Features include:

  • Zinc plated
  • 12 month manufacturers warranty
  • 11 kg total weight
  • Slides away for easy storage when traveling
  • 200mm tread depth
  • 750mm fully extended
  • Weld or bolt on
  • Fits into cavity 180mm H x 305mm D x 540mm W

See our full range of Supex products.

SKU DBSP
Model # DBSP
Barcode # Does not apply
Brand Supex
Colour Grey
Shipping Weight 11.0000kg
Shipping Width 0.440m
Shipping Height 0.200m
Shipping Length 0.550m
Shipping Cubic 0.048400000m3
Assembled Length 0.300m
Assembled Height 0.180m
Assembled Width 0.540m
Type New
Location Code 34A1

Write a review


This step is the same width, depth, and height as the factory single step. I had to trim three tek screws (Jayco used really long ones for some reason), cut two small groves so the slides cleared the metal strip under the door, and drill four holes in the sides of the step to line up with the existing holes. On a dual axle Jayco Journey Outback the step heights are 25cm(ground to bottom step), then 17cm, then 14cm. Removed 1 star as the galv plating was corroded in one spot and needed sanding/cold galv spray. Could have sent it back but not worth it for a 10min fix. Would have added photos but no option to do that.


This step was very easy to install on our Jayco outback which had a single pull out step only. Just a matter of unbolting the original and bolting the double step in.


Product as advertised and delivery was as stated.


Great service fitted spot on wife very happy with result
