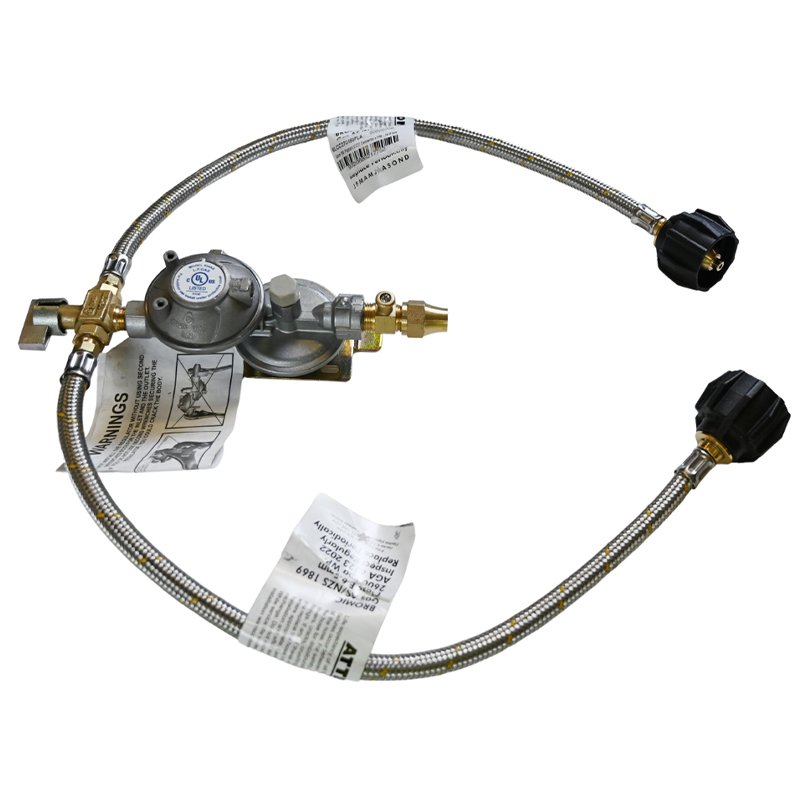

Bromic Two Stage RV Regulator Kit - LCC27 Twin Cylinders

These all-new gas cylinder regulator kits with LCC27 fittings are designed to fit newer style LCC27 gas bottles with the thread on the outside and a press valve on the inside. With recent regulations requiring these fittings in new van builds and larger portable gas cylinders featuring the LCC27 fitting as the new standard, these regulator kits are the perfect solution for anyone looking to update their gas system.

Specifications:

  • SKU: 6060586
  • Barcode: 6060586-27
  • The outlet supplied is 3/8 inch SAE fitting that will suit 3/8 inch copper pipe (needs to be flared).
  • Gas Type - Propane.
  • Outlet Pressure: 11” WC (28mbar)
  • Inlet Pressure (Max.) 1750 kPa (17.5 BAR).
  • Operating Temperature -20°C – 50°C
  • LCC27 Hoses: 450mm long
  • Body: Die cast zinc alloy
  • Diaphragm Approved NBR

Instalation Notes:

The regulator should be installed with the second stage vent directed downward and/or under a covering. It is best if the pigtails aren't in direct sunlight but they have passed the ozone resitence test. Pigtails should be replaced regularly depending on exposure and at least every 6 years.



SKU 6060586-27
Model # 6060586-27
Barcode # 9320688421357
Brand Bromic
Model 6060586-27
Shipping Weight 1.1600kg
Shipping Width 0.240m
Shipping Height 0.070m
Shipping Length 0.240m
Shipping Cubic 0.004032000m3
Assembled Length 0.450m
Assembled Height 0.070m
Assembled Width 0.070m
Type New
Location Code 44D3

Help other users shop smarter by writing reviews for products you have purchased.

Write a review

All items in our store are from reputable Australian suppliers and are covered by a 12-month  warranty for faults and defects.

Products must be used correctly and for the function they were designed for. Damage by customer misuse is not warrantable.

For full warranty information, visit our warranty page - Click here.

If you would like to submit a warranty claim, please submit a support ticket on our Customer Support Portal.

Click here to visit the portal

Due to the high incidence of online fraud, you will be required to provide proof of any warranty claims and may be required to return the item for assessment.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.



Features:

  • Compact Regulator designed for Caravan & RV installations.
  • Stainless Steel Braided Pigtails With Hand Wheel for easy installation
  • Manual Changeover Valve
  • Metal Mounting Bracket
  • Test Point
  • Fully Assembled & Leak Tested
  • 1-year warranty.
